Ignition Coil Installation

Ignition Coil Installation

Special Tools

EN-6009 - Remover and Installer Ignition Module

For equivalent regional tools, refer to Special Tools Tools and Equipment.

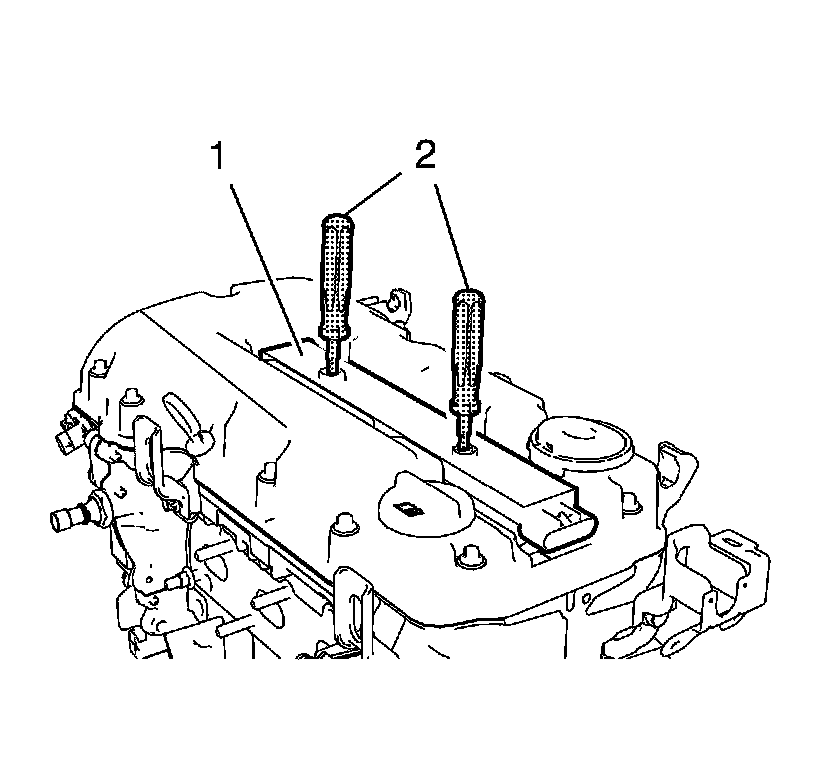

1. Install the ignition coil (1) and remove EN-6009 - remover and installer (2).





Caution:
Refer to Fastener Caution Fastener Caution.

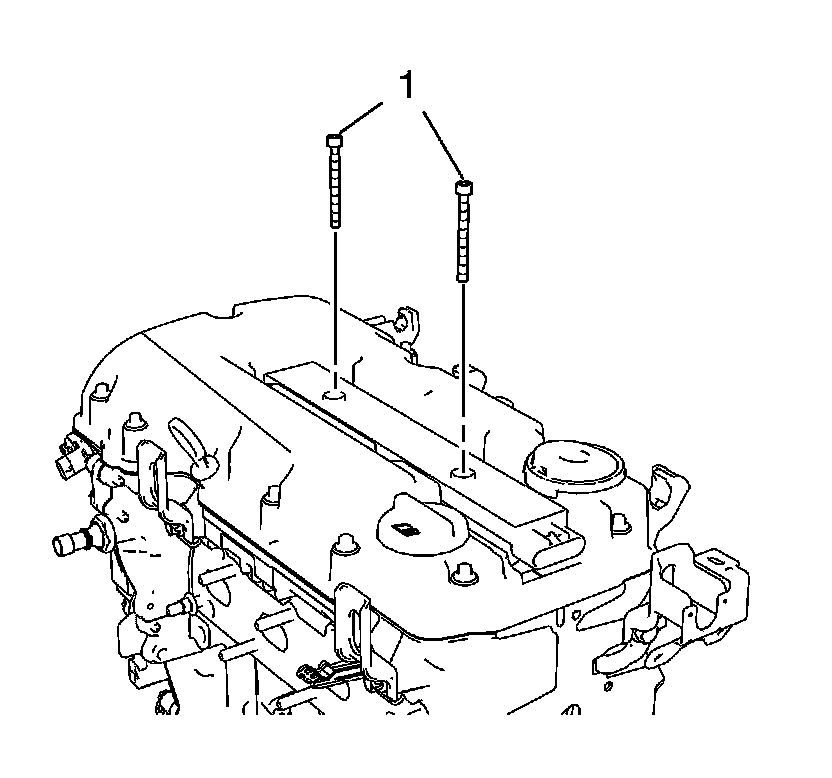

2. Install the 2 ignition coil bolts (1) and tighten to 8 Nm (71 lb in).
