Oil Pan Removal

Oil Pan Removal

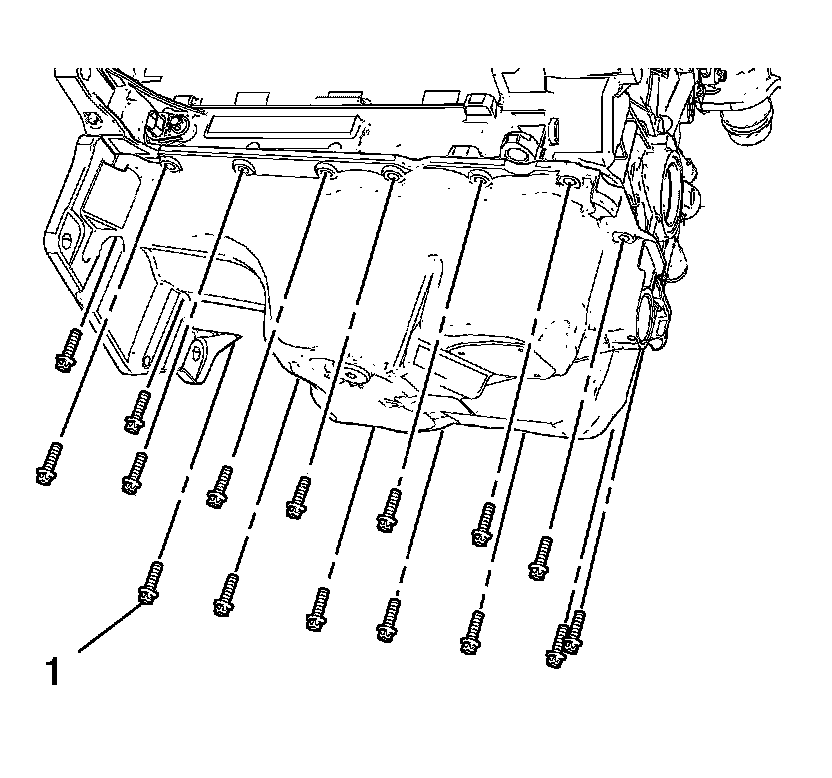

1. Remove the 16 oil pan bolts (1).





Caution:
Pry the oil pan carefully in order to prevent damage to the transaxle case or the oil pan sealing surfaces.

2. Place a suitable prying tool to the area shown (1) and carefully pry the oil pan loose.





3. Remove the oil pan (1).
