Warm Up Three-Way Catalytic Converter Removal

Warm Up Three-Way Catalytic Converter Removal

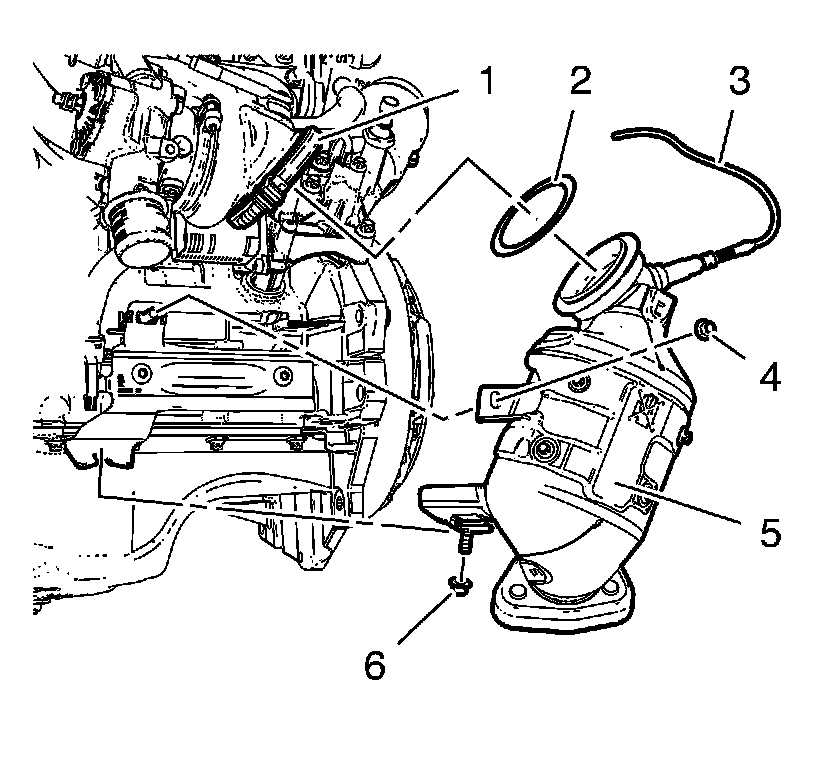

1. Disconnect the heated oxygen sensor wiring harness (3) from retainer clip.

2. Remove the 2 catalytic converter to catalytic converter bracket nuts (4) and (6).

3. Loosen the three way warm up catalytic converter V-clamp (1).

4. Remove the three way warm up catalytic converter (5) and the catalytic converter seal (2).
