Drive Belt: Service and Repair

Drive Belt Replacement

Special Tools

* EN-48488 - Holding Wrench

* EN-955 - Locking Pin

For equivalent regional tools, refer to Special Tools Tools and Equipment.

Removal Procedure

1. Remove the right front wheelhouse liner extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement .

2. Install the engine support fixture. Refer to Engine Support Fixture Service and Repair.

3. Remove the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side Engine Mount Bracket Replacement - Right Side.

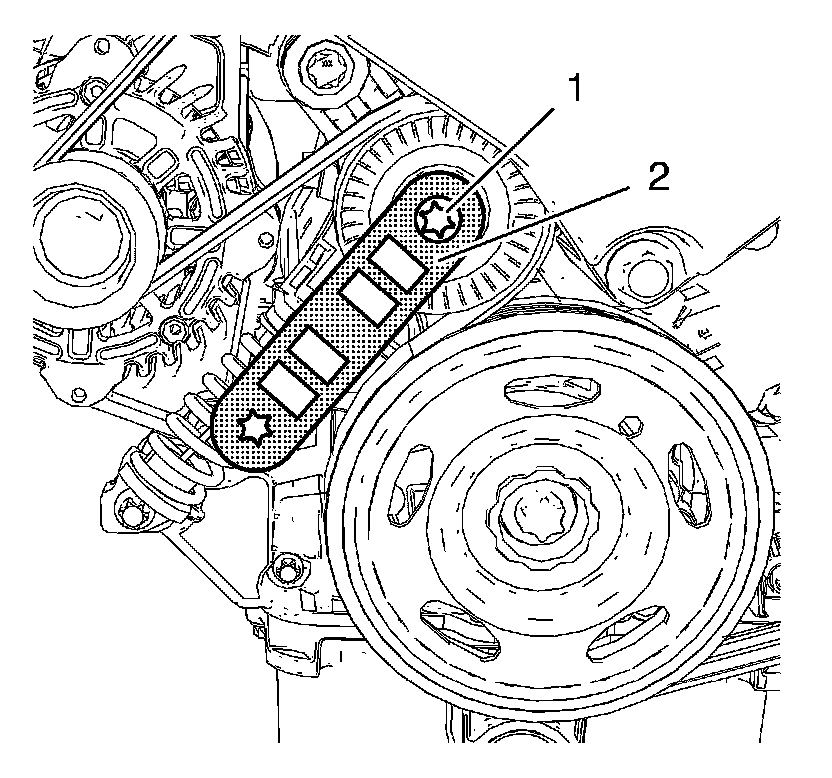

4. Install EN-48488 - holding wrench(2) to the drive belt tensioner (1).

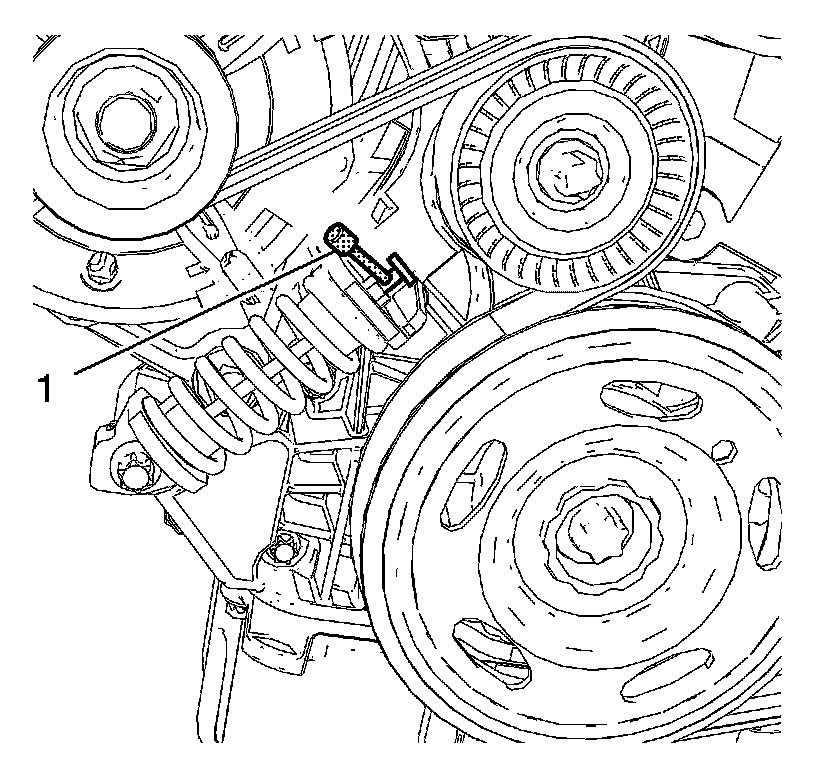

5. Move the drive belt tensioner clockwise until the drive belt tensioner can be fixed with EN-955 - locking pin(1).

6. Remove the EN-48488 - holding wrench.





7. Remove the drive belt (1).

Installation Procedure





1. Install the drive belt (1).





2. Install the EN-48488 - holding wrench(2) to the drive belt tensioner (1).





3. Move the drive belt tensioner clockwise until EN-955 - locking pin (1) can be removed.

4. Allow the tensioner to slide back slowly.

5. Remove the EN-48488 - holding wrench.

6. Install the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side Engine Mount Bracket Replacement - Right Side.

7. Install the right front wheelhouse liner extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement .

8. Remove the engine support fixture. Refer to Engine Support Fixture Service and Repair.
