Battery: Locations

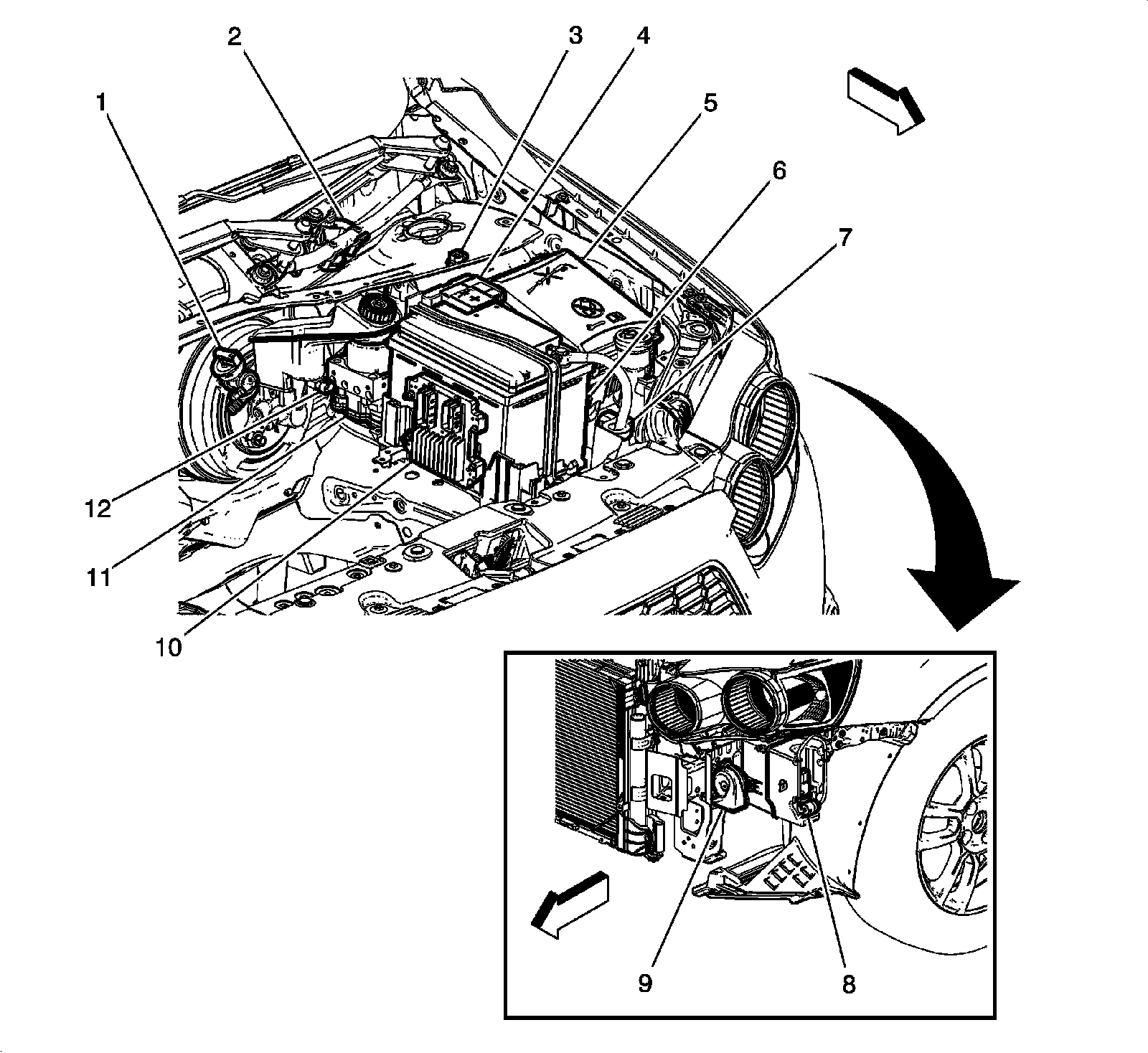

Front of Vehicle/Engine Compartment Component Views

Left of Engine Compartment Components

1 - B19C Brake Booster Vacuum Switch

2 - M75 Windshield Wiper Motor

3 - X90 Assembly Plant ABS Data Connector

4 - X50D Fuse Block- Battery

5 - X50A Fuse Block- Underhood

6 - C1 Battery

7 - B18 Battery Current Sensor

8 - G24 Windshield Washer Pump

9 - P12 Horn

10 - K20 Engine Control Module

11 - K17 Electronic Brake Control Module

12 - B20 Brake Fluid Level Switch
