Power Seat Switch
>>
Diagrams
>>
Folding Seat Switch - Left Rear (ARS)

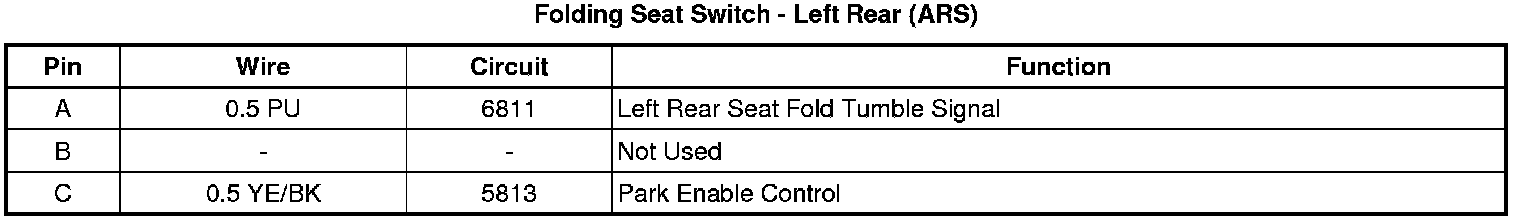

Folding Seat Switch - Left Rear (ARS)

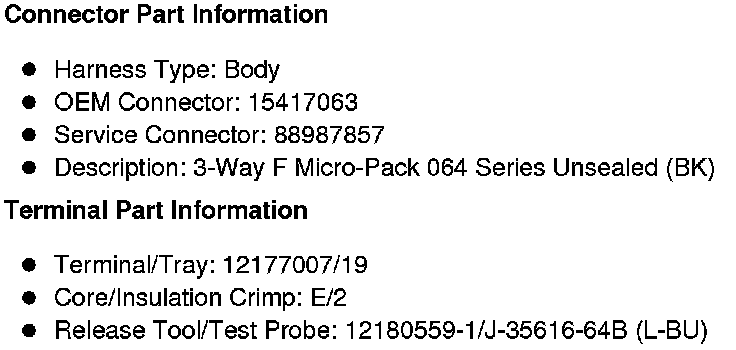

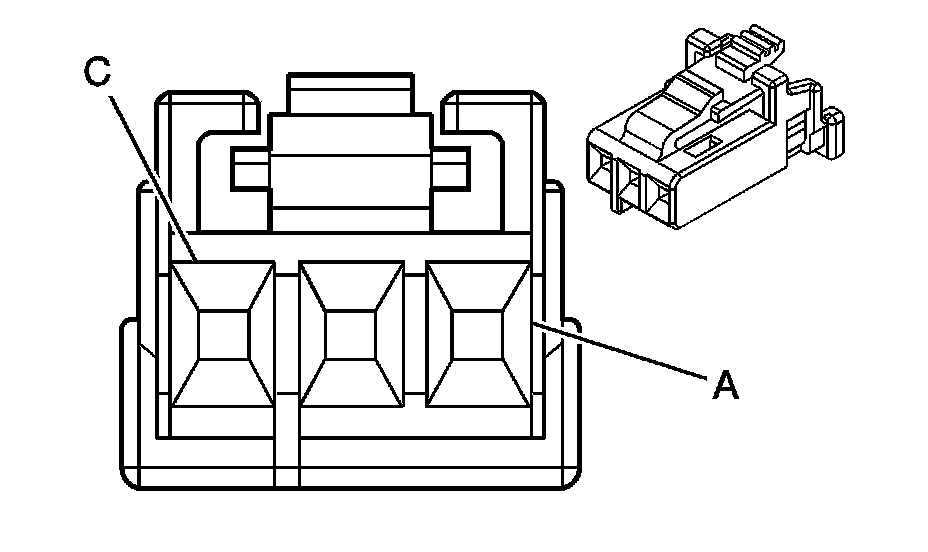

Component Connector End Views
Folding Seat Switch - Left Rear (ARS)
