Vehicle Communication Interface Module (VCIM) X3 (UE1 With UUK, UUL or UUM)

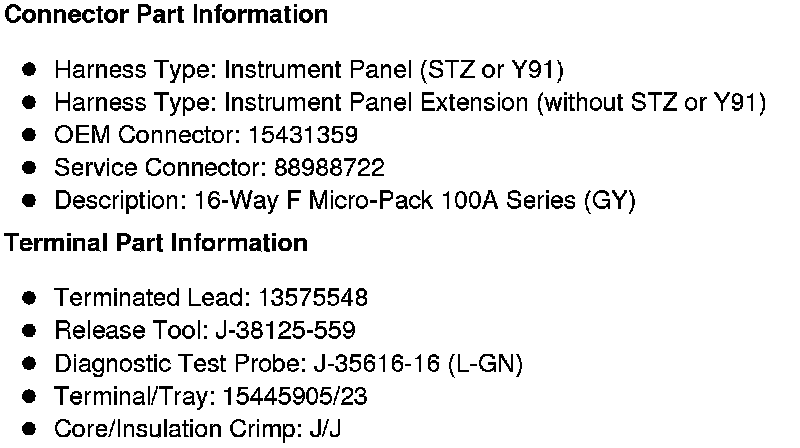

Component Connector End Views

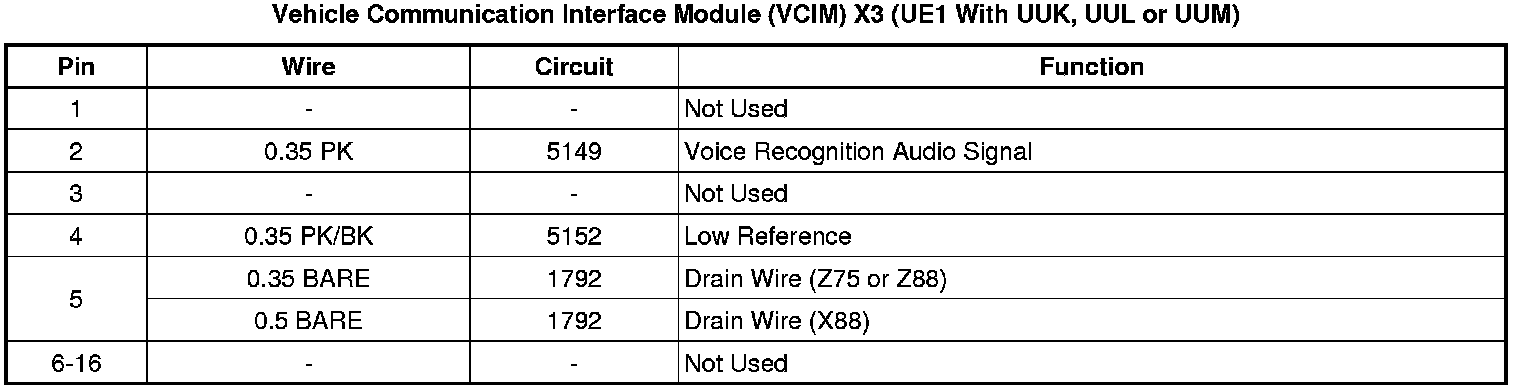

Vehicle Communication Interface Module (VCIM) X3 (UE1 With UUK, UUL or UUM)
