Inflatable Restraint Side Impact Module - Right Front (without HP2 or Z75 with HP2)

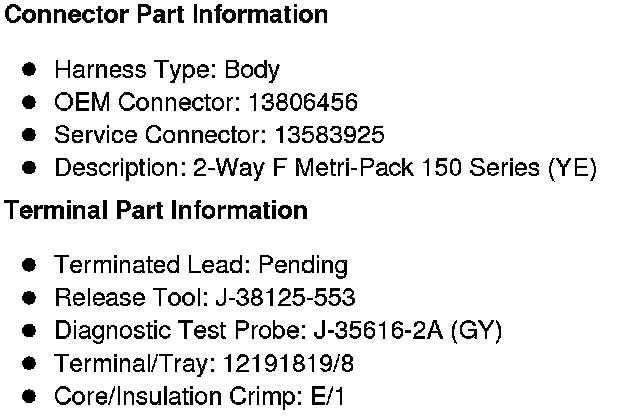

Component Connector End Views

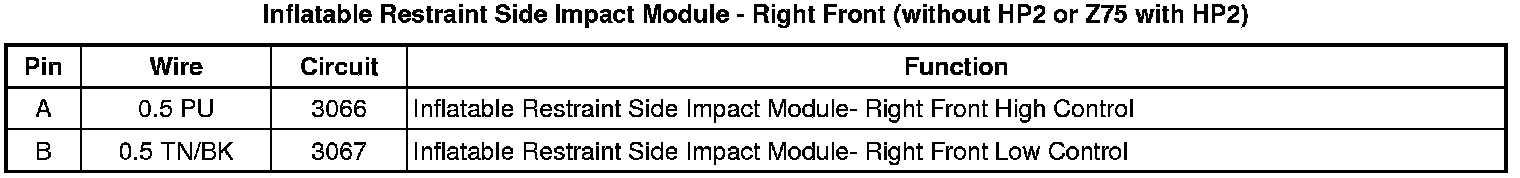

Inflatable Restraint Side Impact Module - Right Front (without HP2 or Z75 with HP2)
