Fuel Pump Flow Control Module (without JL1)
Fuel Pump Flow Control Module (without JL1)

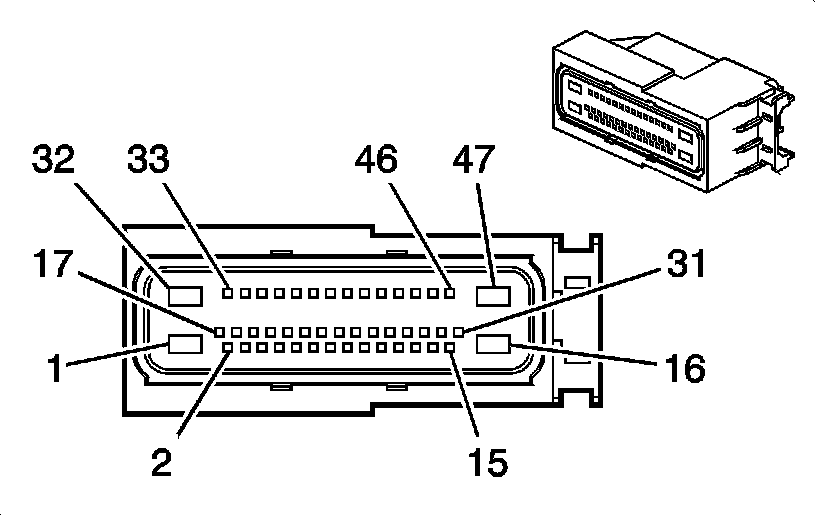

Component Connector End Views

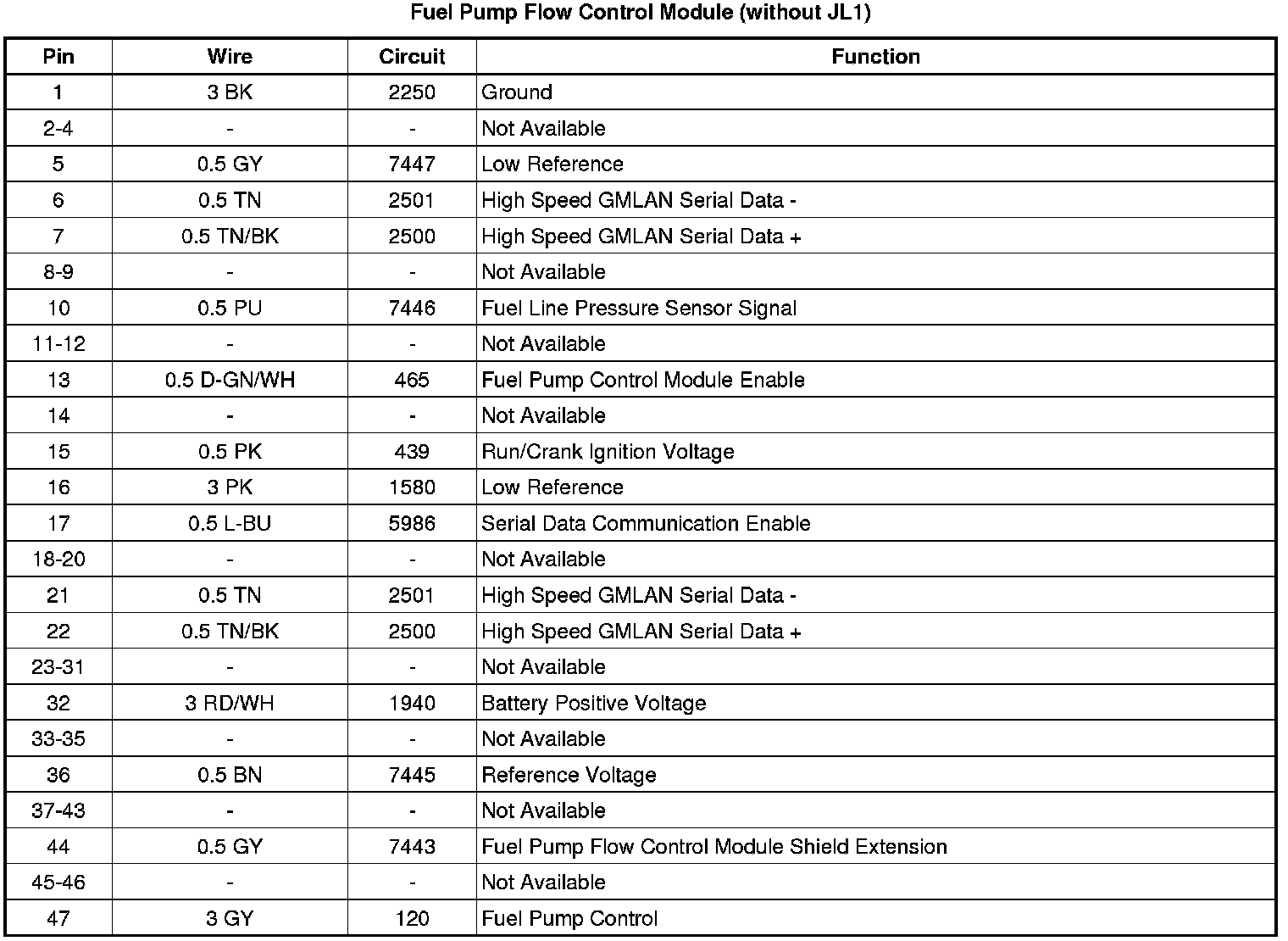

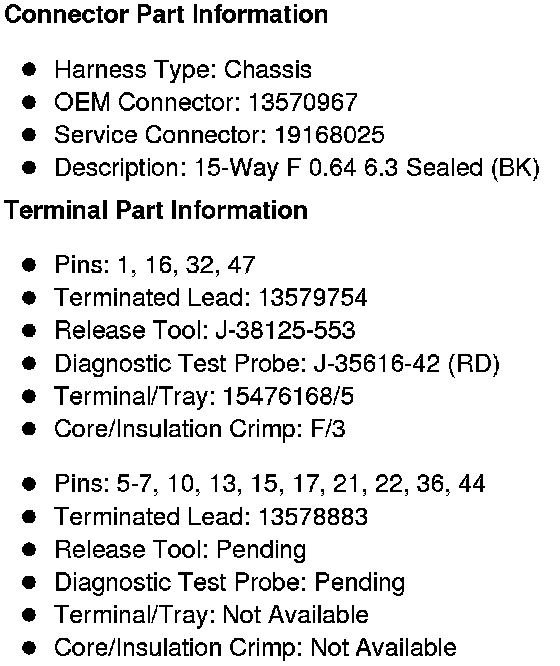

Fuel Pump Flow Control Module (without JL1)
