Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 1984 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> Diagnostic Charts >> Ignition System and Injectors >> Test 1, Step B & C

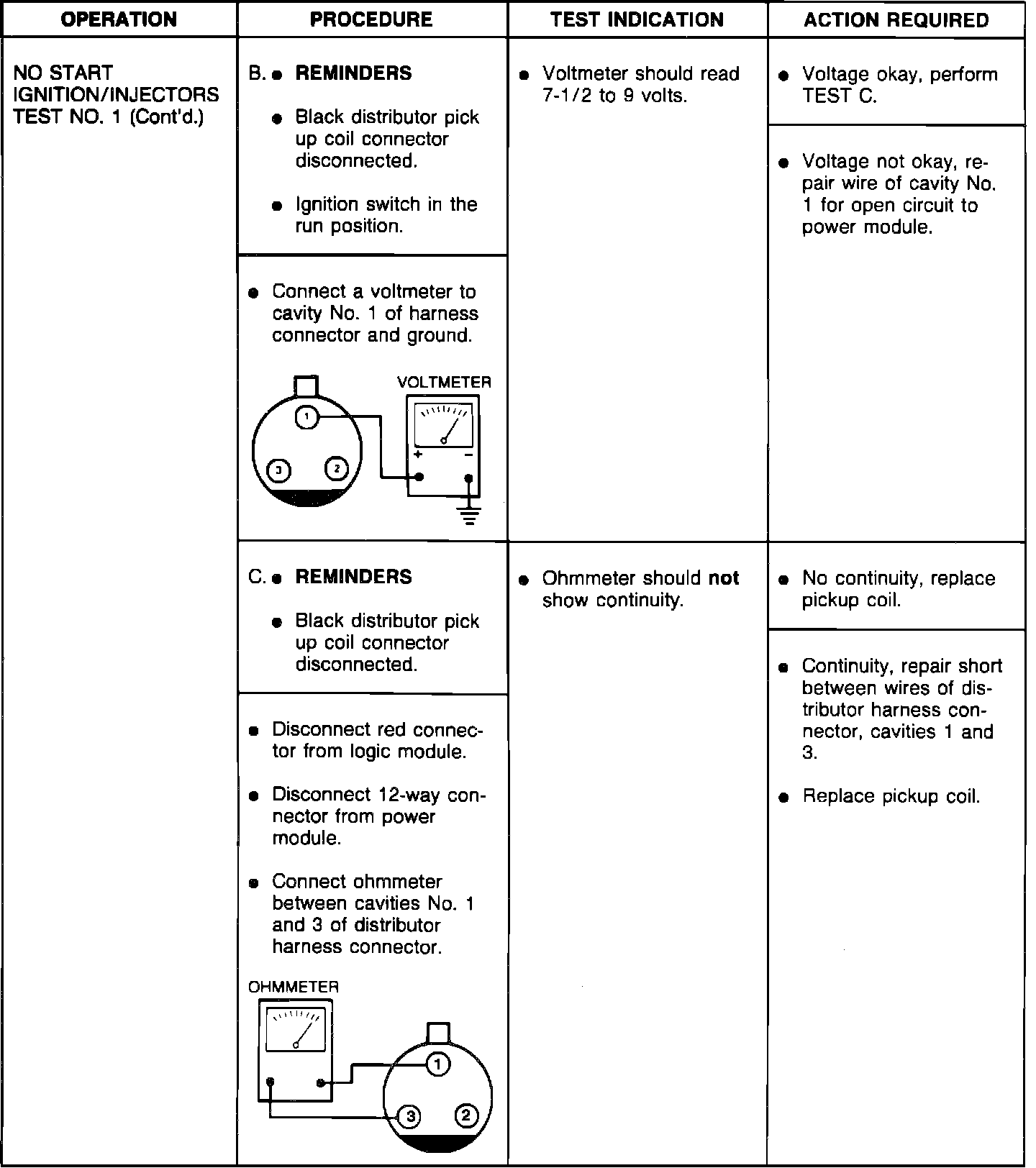

Test 1, Step B & C

Test 1, Step B & C:
