Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1984
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
Diagnostic Charts
>>
Ignition System and Injectors
>>

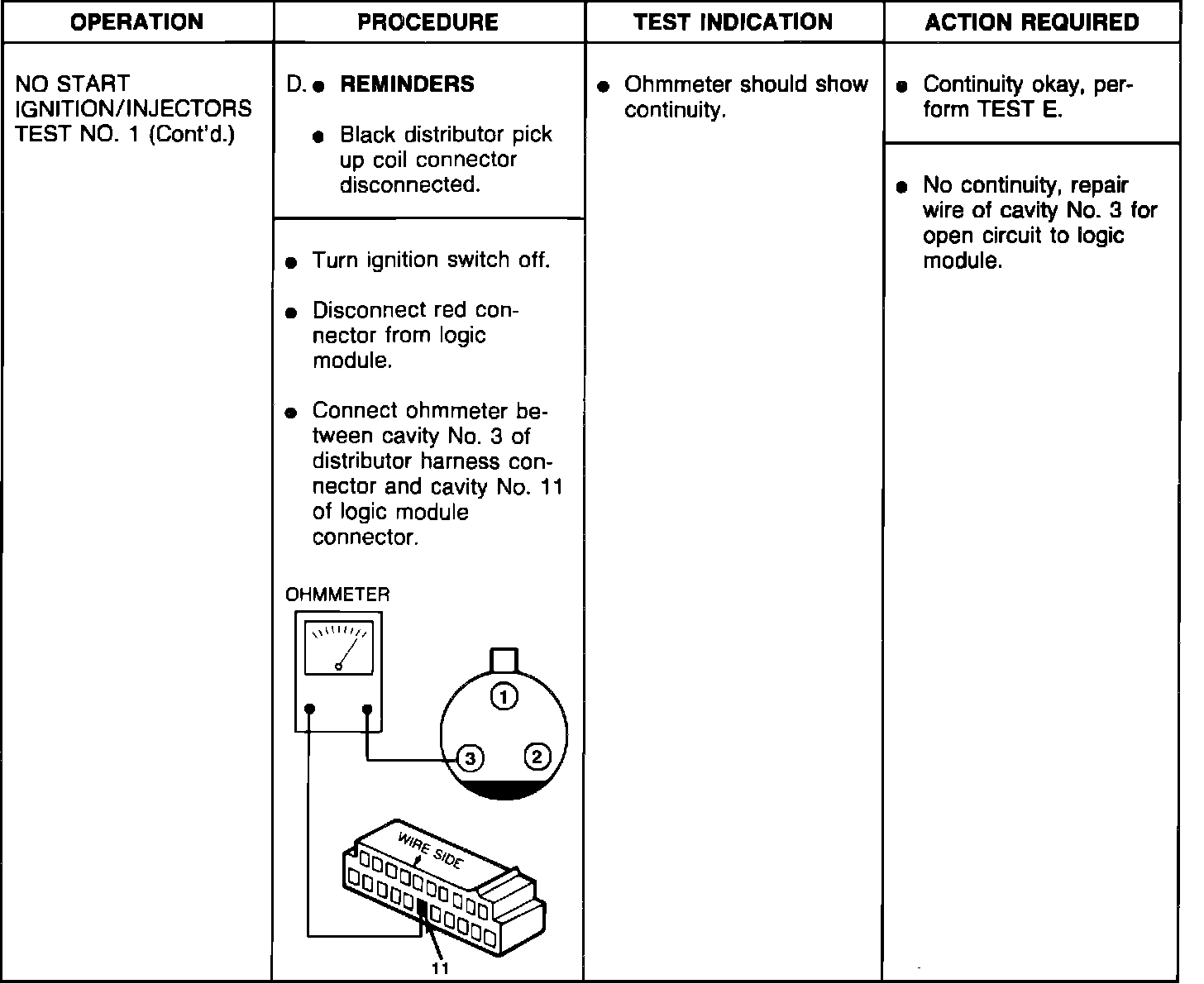

Test 1, Step D
Test 1, Step D
Test 1, Step D:
