Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1984
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Testing and Inspection
>>

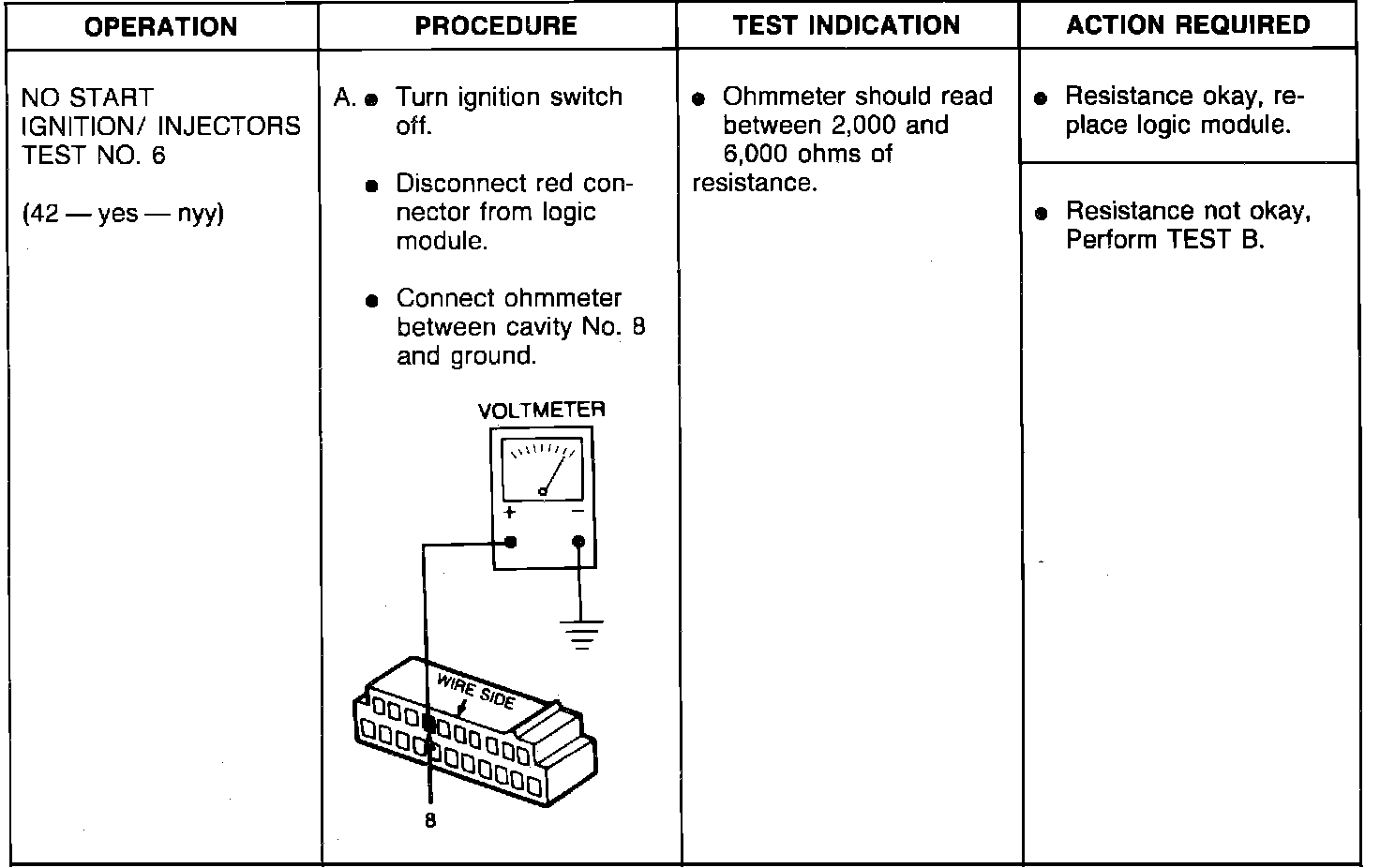

No Start Test (Ignition/Injectors)
>>
Test 6, Step A
Test 6, Step A
Test 6, Step A:
