Main Relay (Computer/Fuel System): Locations

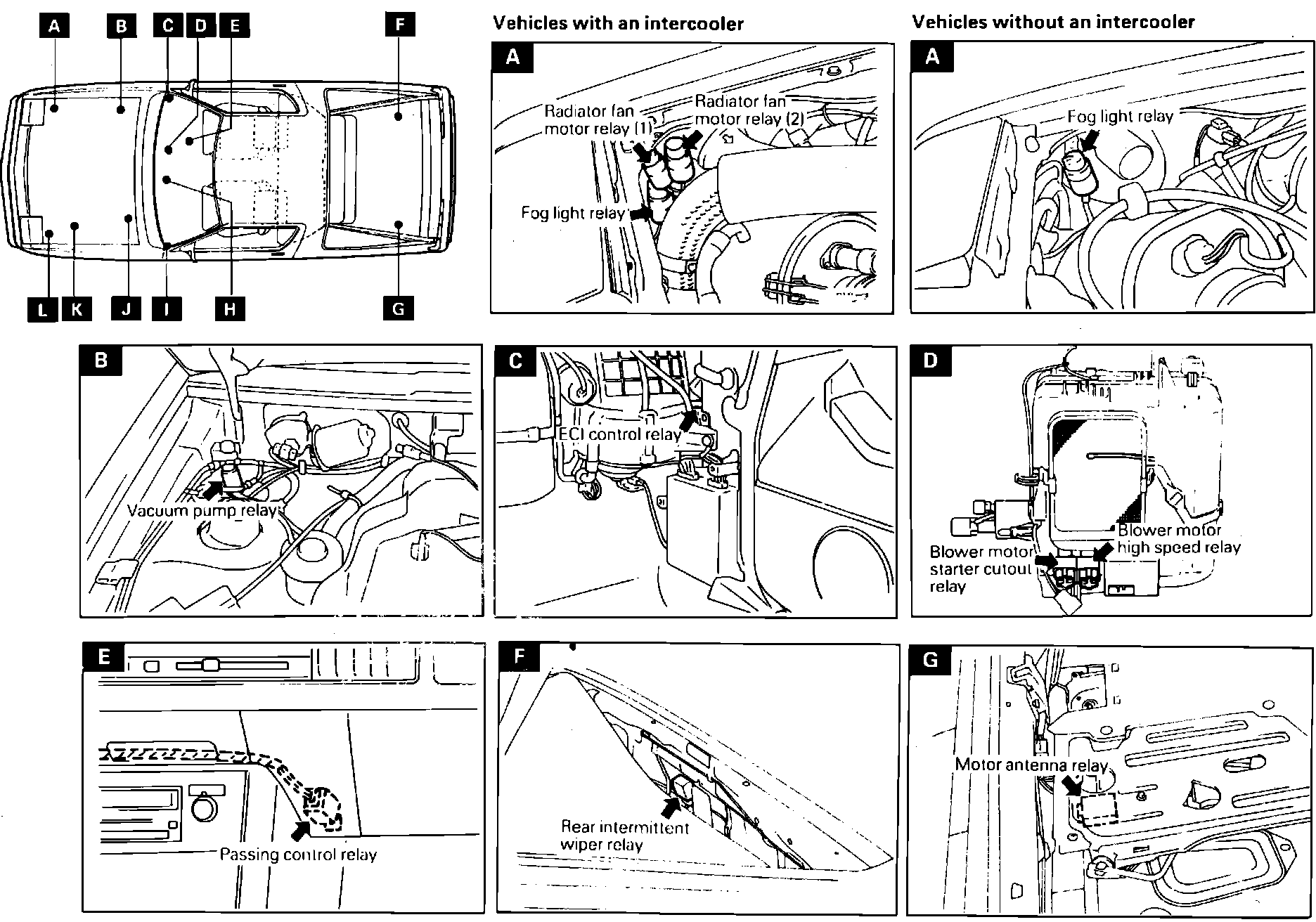

Relay Locations (Part 1 Of 2).:
Relay Locations (Part 1 Of 2).:
Under RH Side Of I/P
Applicable to: 1987 Conquest
