Comfort Control Lever Replacement
The face of the comfort control has five numbers, 65-70-75-80-85, to permit the operator to select the desired comfort level.

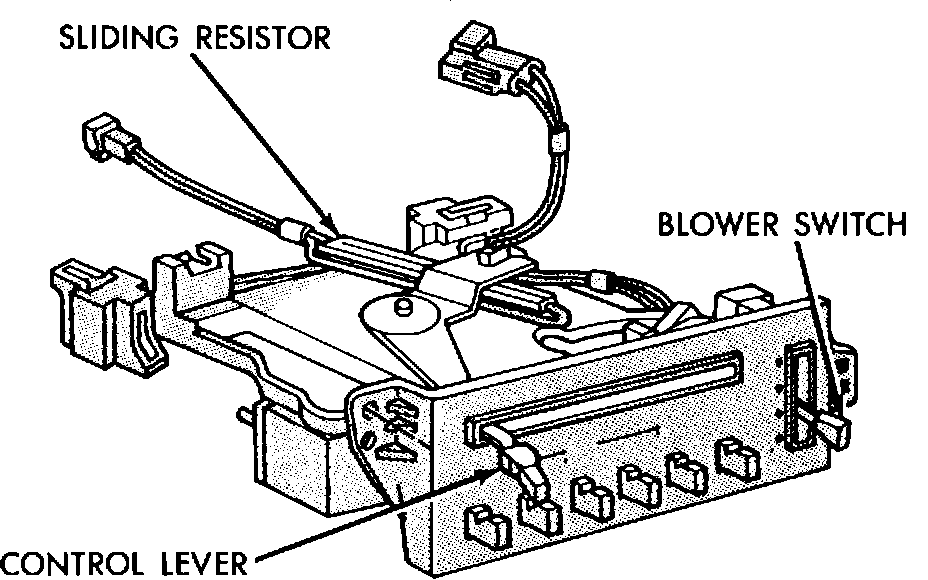

Fig. 2 Control head assembly:
This lever, which is located above the push-button in the
control assembly, allows the operator to select the desired comfort level. Movement of the lever operates a sliding resistor in the control head.
