Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 1989 >> Conquest TSI L4-2555cc 2.6L SOHC Turbo VIN N FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

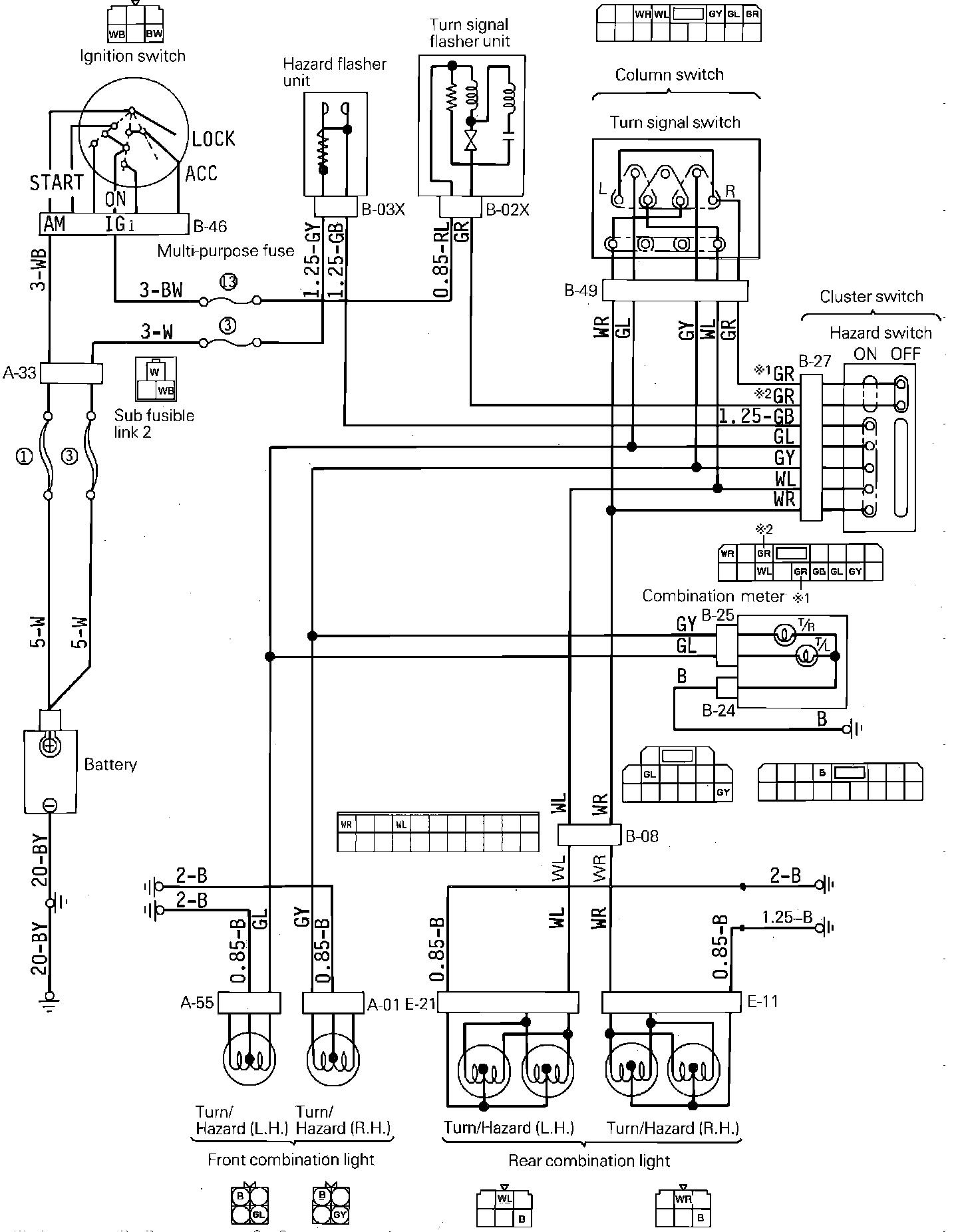

Turn Signals

Turn Signals:
