Temperature Gauge: Testing and Inspection

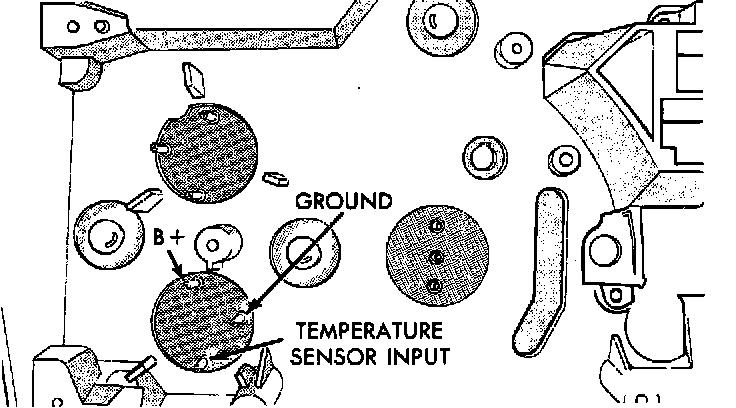

Temperature Gauge Pins:

1. Remove temperature and oil pressure gauge assembly from the cluster.
2. Check for continuity in wire between temperature sending unit and gauge (sensor input pin).
3. With ignition switch in On position, check for battery voltage across B+ pin and ground pin.
