Home >> Chrysler >> 1989 >> TC BY Maserati L4-135 2213cc 2.2L DOHC Turbo VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 21 Thru 40 >> 34

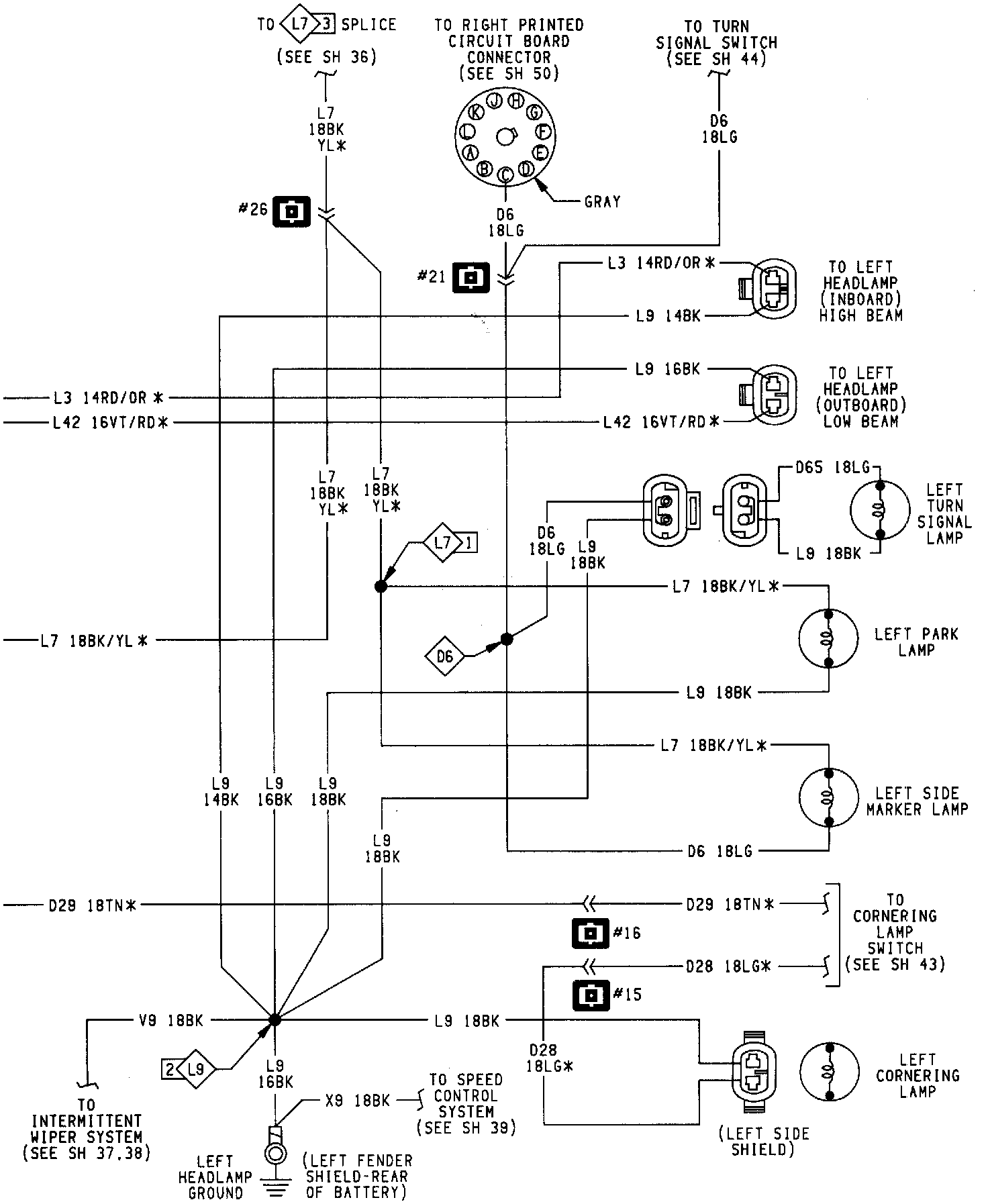

21 Thru 40: 34
