Part 3 of 3

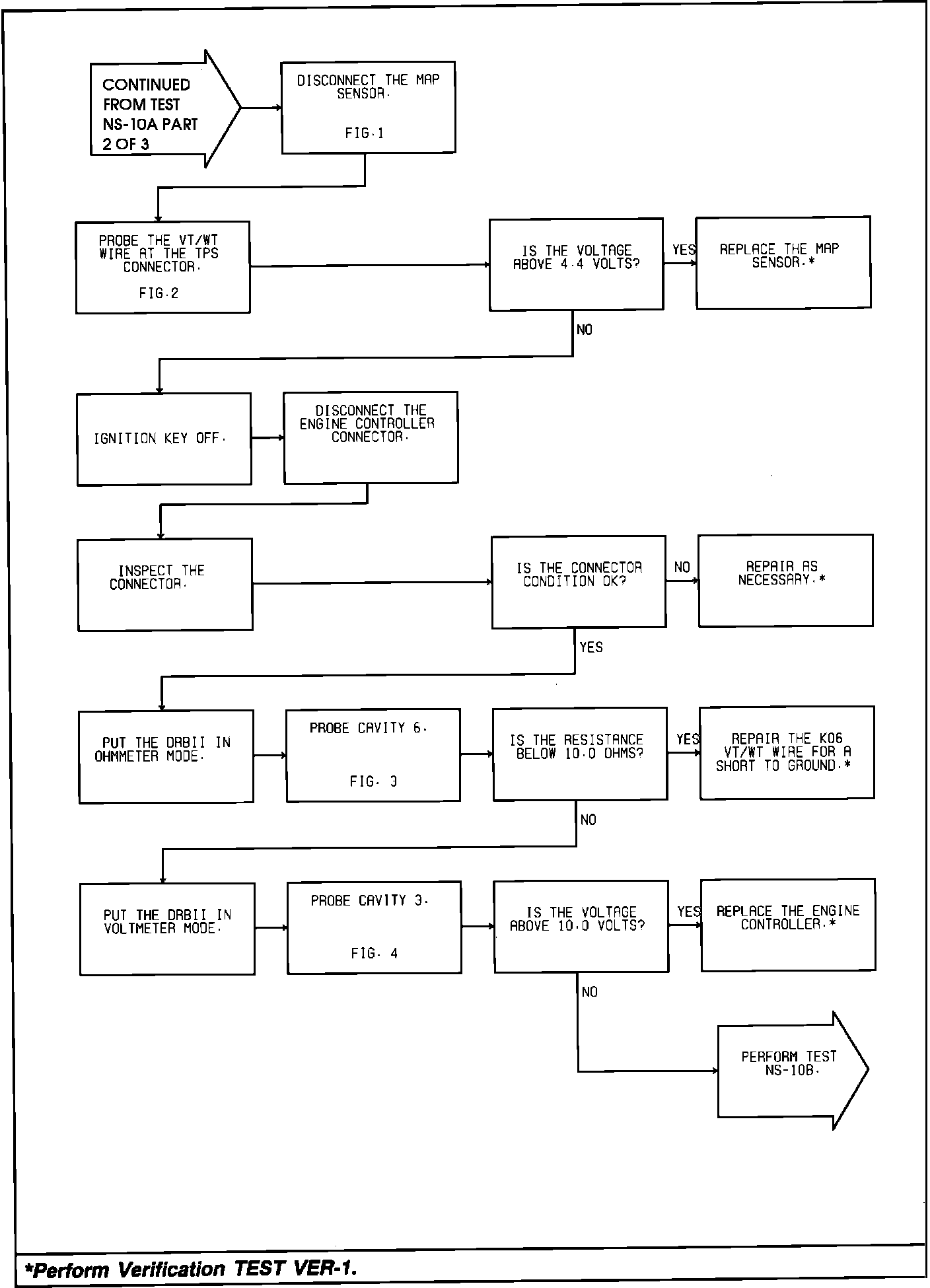

Test NS-10A - Checking For System Power And Ground, And Operation Of Engine Controller And MAP:



Test NS-10A - Checking For System Power And Ground, And Operation Of Engine Controller And MAP:
