Rear Wheel Alignment - Uneven Tire Wear
90chrysler13 NO.: 02-07-90GROUP: SUSPENSION
DATE: Nov. 5, 1990
SUBJECT: Rear Tire Noise And Wear/Rear Wheel Aligriment
MODELS: 1989-1991 All Domestic FWD Vehicles (Excluding BB - Monaco)
SYMPTOM/CONDITION:
Rear camber and/or toe alignment causing uneven tire wear or excessive tread noise.
DIAGNOSIS:
If rear alignment is required, place vehicle on alignment rack and check alignrnent specifications. Two or four wheel alignment racks are acceptable, following manufacturers instructions. Re-(2 wheel alignment rack) when recording rear toe-in (vehicle backed onto alignment rack) REMEMBER to reverse sign convention; a total toein on direct reading charts is actually toe-out while driving. Maintain rear alignment within Chrysler Corporation recommendations/specifications.
PARTS REQUIRED:
1 or 2 Shims PN 5205114 (except AC, AY and AS Bodies)
1 or 2 Shims PN 4626165 (all carlines)

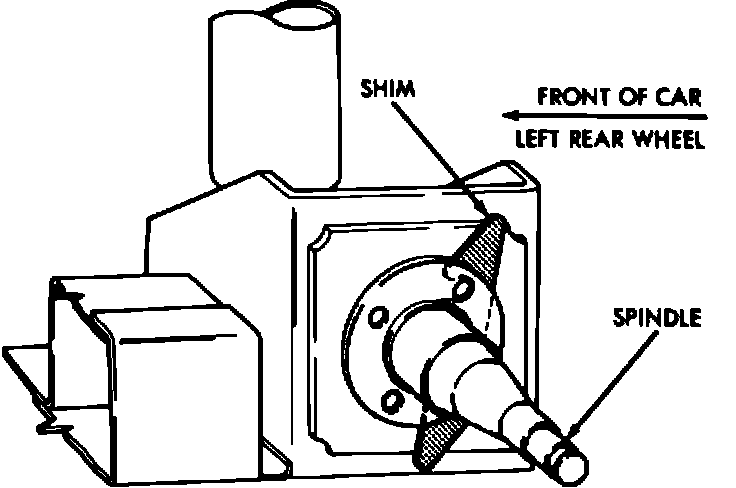

Fig. 1-Shim Installation for Toe-Out:

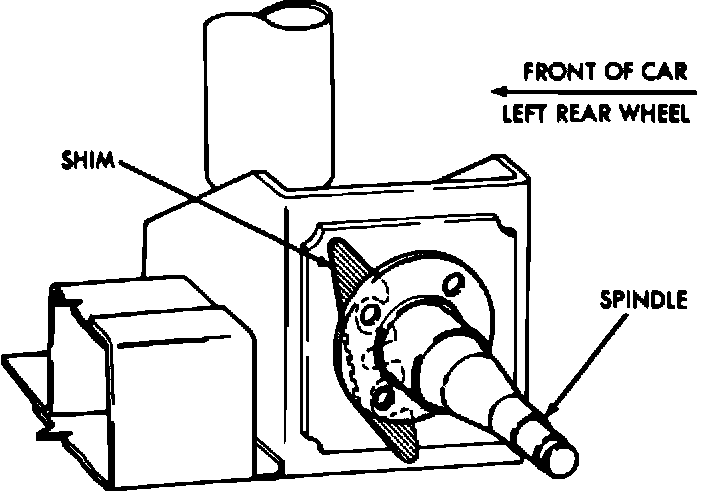

Fig. 2-Shim Installation for Toe-in:

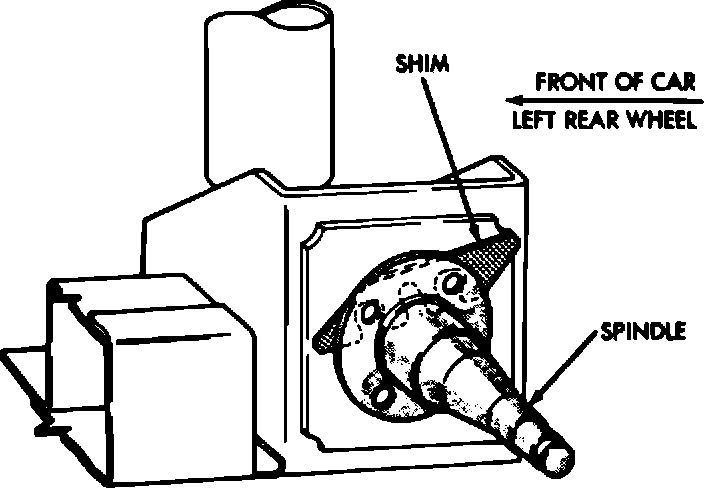

Fig. 3-Shim Installation for Positive Camber:

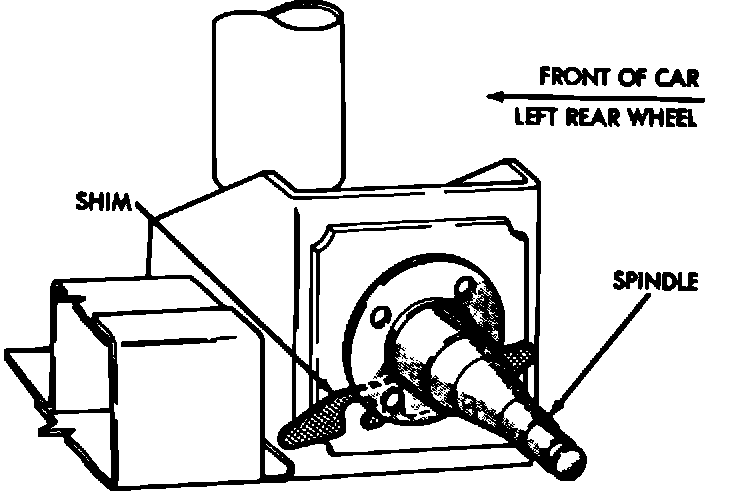

Fig. 4-Shim Installation for Negative Camber:
REPAIR PROCEDURES:
Installation of Rear Alignment Shims
1. Block front tires so vehicle will not move.
2. Release parking brake.
3. Hoist vehicle so that rear suspension is in full rebound and tires are off the ground.
4. Remove wheel and tire assembly.
5. Pry off grease cap.
6. Remove cotter pin and castle lock.
7. Remove brake drum/disc retaining nut.
8. Remove brake drum/disc.
9. Loosen four (4) brake assembly and spindle mounting bolts enough to allow clearance for shim installation. Do not remove mounting bolts.
10. Using a maximum of two (2) shims per spindle, install the shim(s) (as shown in Figures 1, 2, 3, and 4) to bring the alignment as close as possible to the preferred camber and toe specifications. Each shim changes alignment (camber or toe depending on shim installation position) by .3~.
11. Tighten four (4) brake assembly and spindle mounting bolts.
For AC, AY, and AS Body tighten to 88 N-m (65 ft.lbs.) All other carlines tighten to 60 N-m (45 ft.lbs.)
12. Install brake drum/disc.
13. Install washer and nut. Tighten retaining nut to 27-34 N-m (240-300 in.lbs.) while rotating wheel. Back off adjusting nut with wrench to completely release bearing preload. Finger tighten adjusting nut.
14. Position nut lock with one pair of slots in line with cotter pin hole. Install cotter pin. The end play should be .025-mm. (.001-.003 in.). Clean and install grease cap.
15. Install wheel and tire assembly. Tighten wheel nut to 129 N-m (95 ft.lbs.) torque.
16. Lower vehicle.
17. Recheck alignment specifications.
The Chrysler Corporation recommended rear wheel specifications are:
(FOR PRIOR MODELS REFER TO APPLICABLE SERVICE MANUALS FOR SPECIFICATIONS)
POLICY: Information only.
