Disassembly and Assembly

1. Remove transaxle assembly as described in Automatic Transmission/Service and Repair/Transaxle Replacement. Removal and Replacement
2. Remove valve body as described in Automatic Transmission/Valve Body/Service and Repair.
3. Measuring input shaft end play before disassembly will usually indicate when a thrust washer change is required. The thrust washer is located between input and output shafts.

Measure Input Shaft End Play:

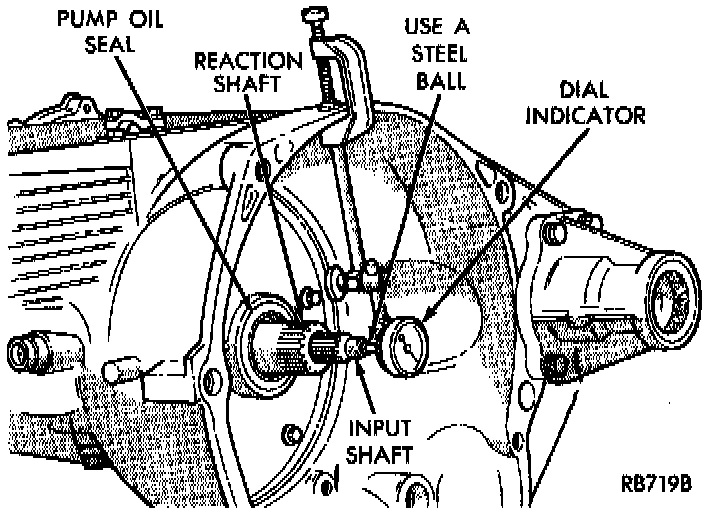

4. Attach a dial indicator to the transaxle bell housing, with its plunger seated against the end of the input shaft. Move input shaft in and out to obtain end play reading. End play should be 0.19 to 1.50 mm (0.008 to 0.060 inch). Record indicator reading for reference when reassembling the transaxle.

Kickdown Band Adjusting Screw:

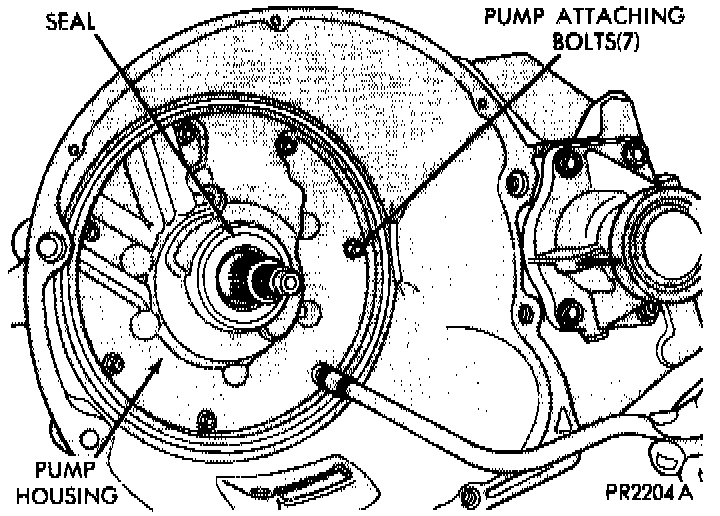

Pump Attaching Bolts:

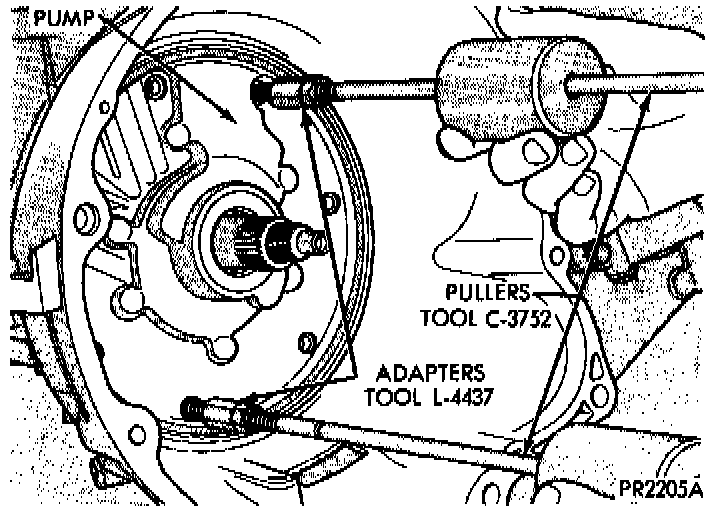

Install Tool C-3752 W/Adapters L-4437:

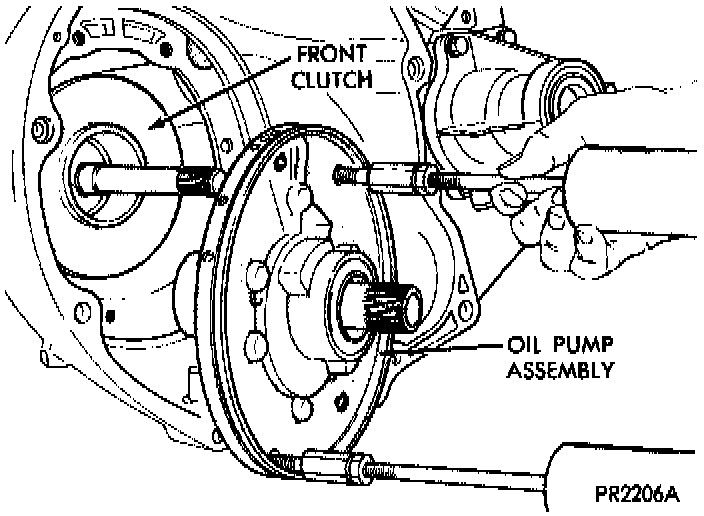

Oil Pump W/#1 Thrust Washer:

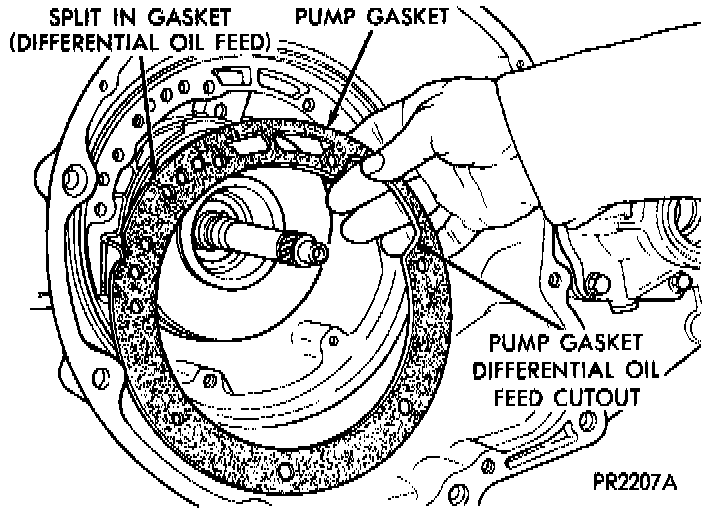

Oil Pump Gasket:

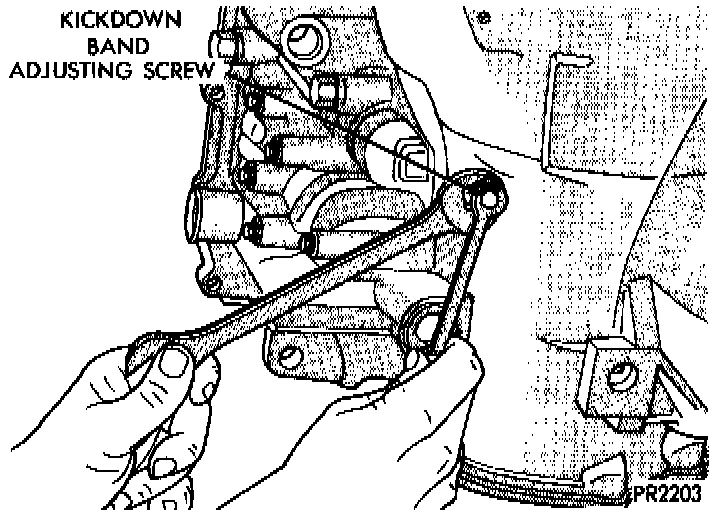

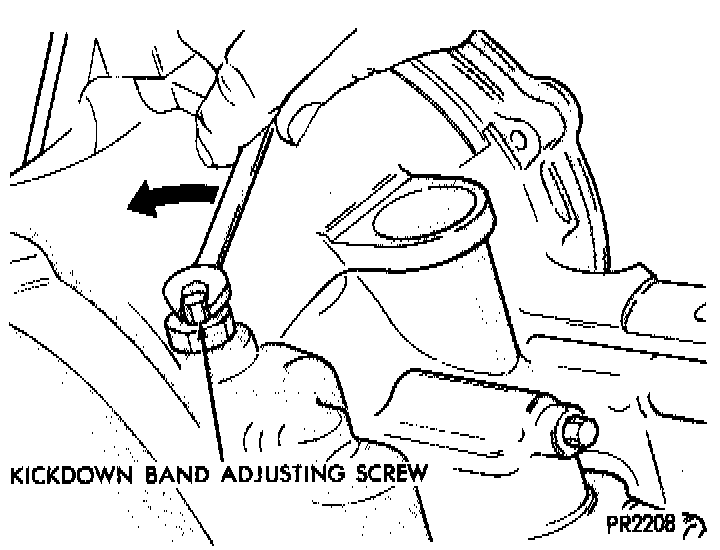

Loosen Kickdown Band Adjusting Screw:

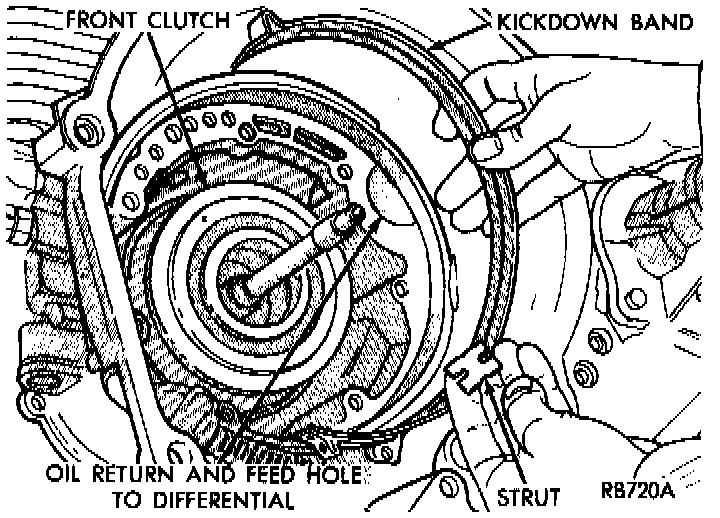

Kickdown Band And Strut:

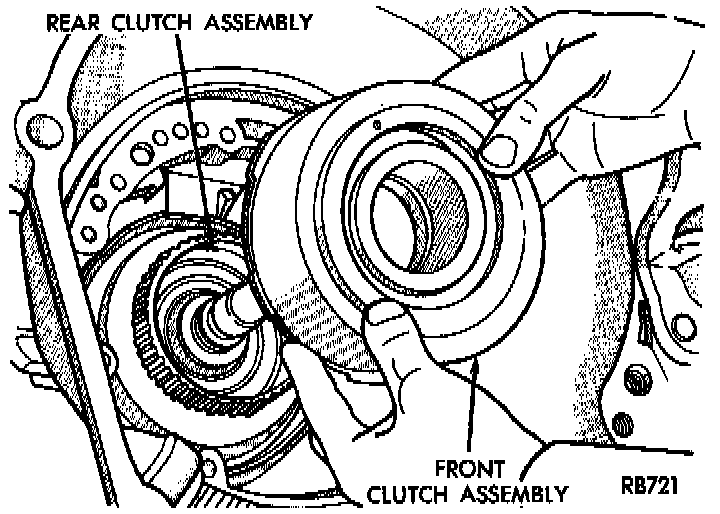

Front Clutch Assembly:

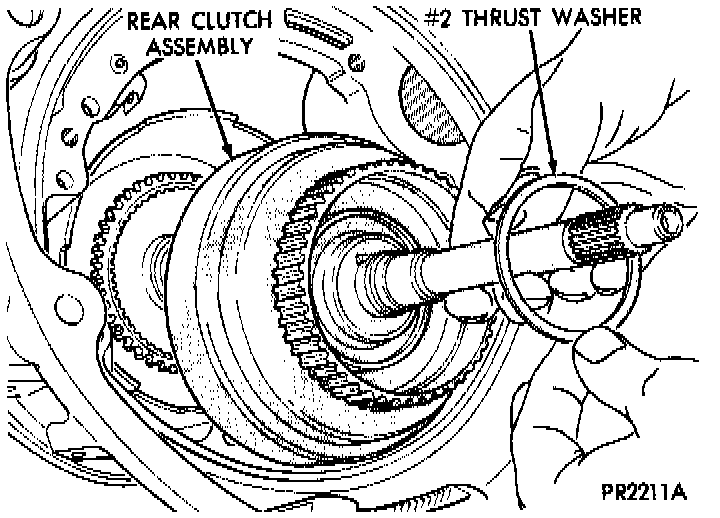

Thrust Washer And Rear Clutch:

CAUTION: The input shaft for transaxles without a torque converter clutch, has two seal rings. The input shaft for a transaxle with a torque converter clutch, has three seal rings.

#3 Thrust Washer:

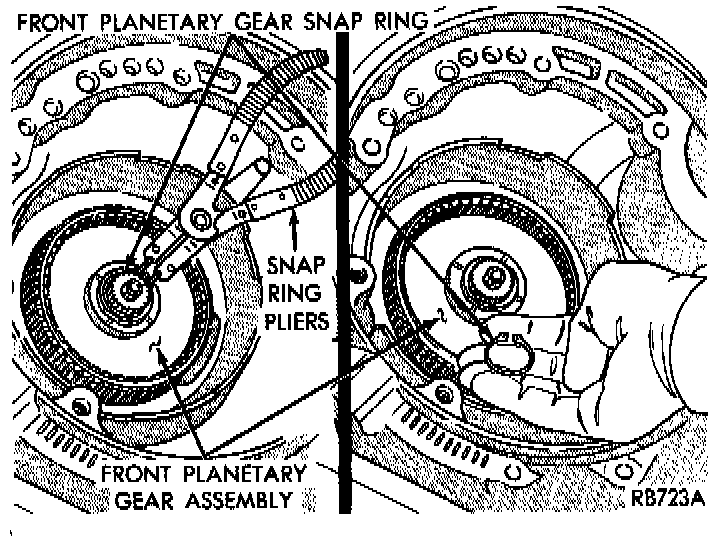

Front Planetary Gear Snap Ring:

Front Planetary Gear Assembly:

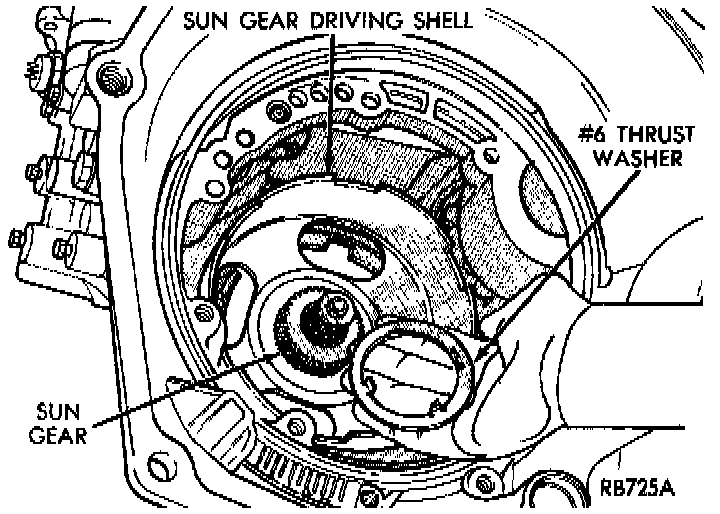

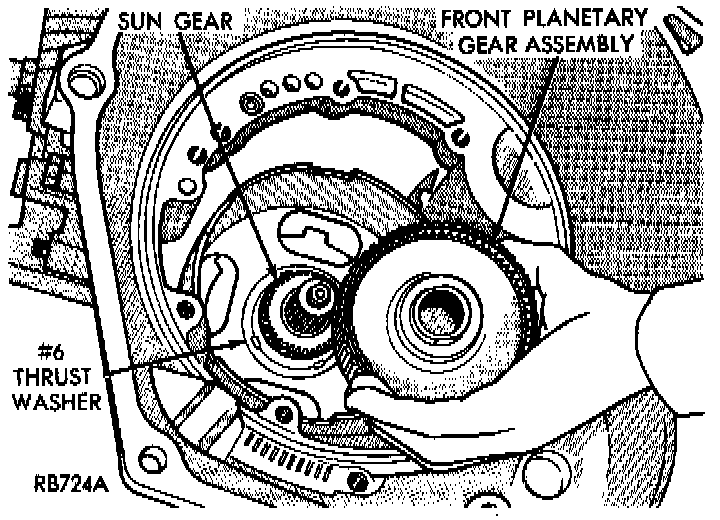

#6 Thrust Washer:

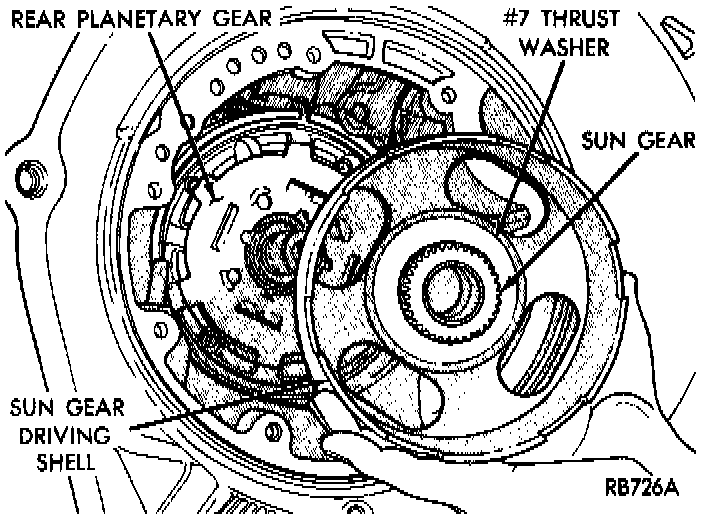

Sun Gear Driving Shell:

5. All subassemblies should be inspected and/or reconditioned when transaxle recondition is performed.

Sun Gear Driving Shell Components:

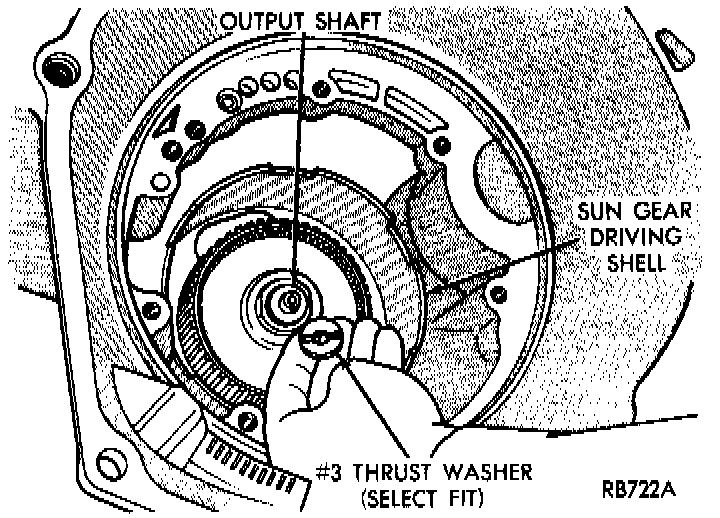

#3 Thrust Washer:

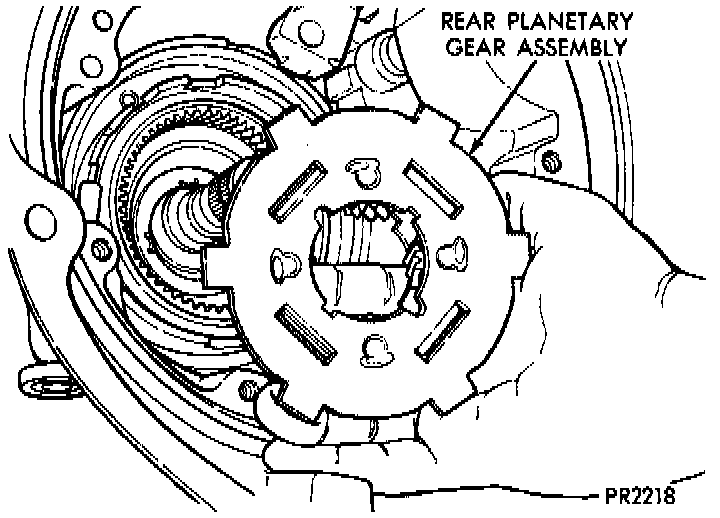

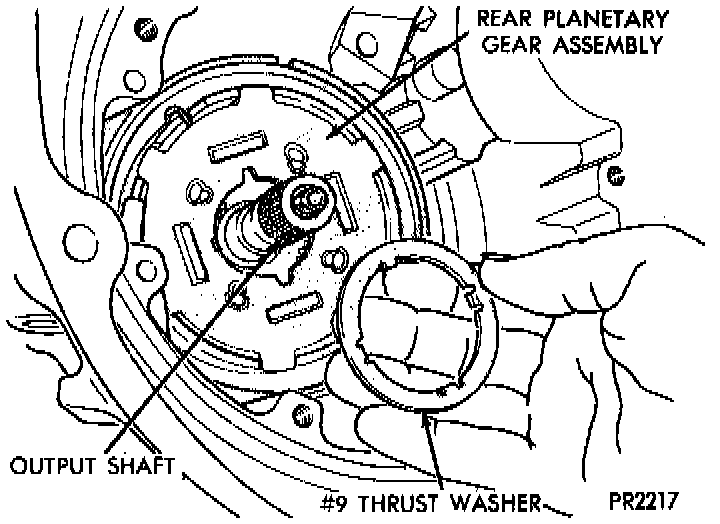

Rear Planetary Gear Assembly:

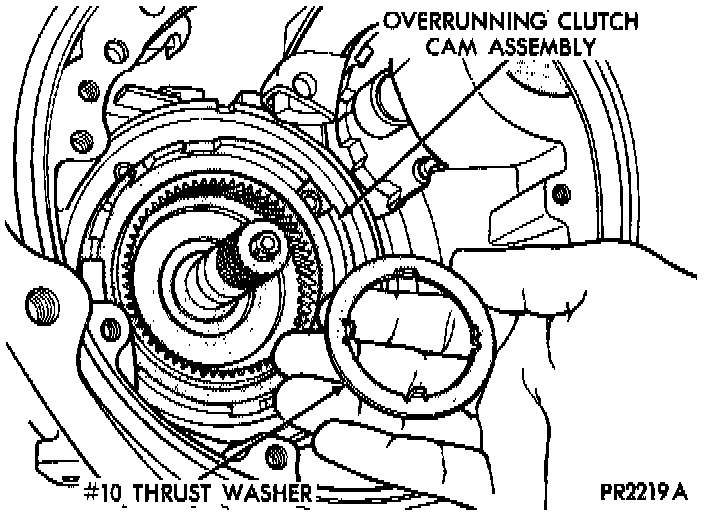

#10 Thrust Washer:

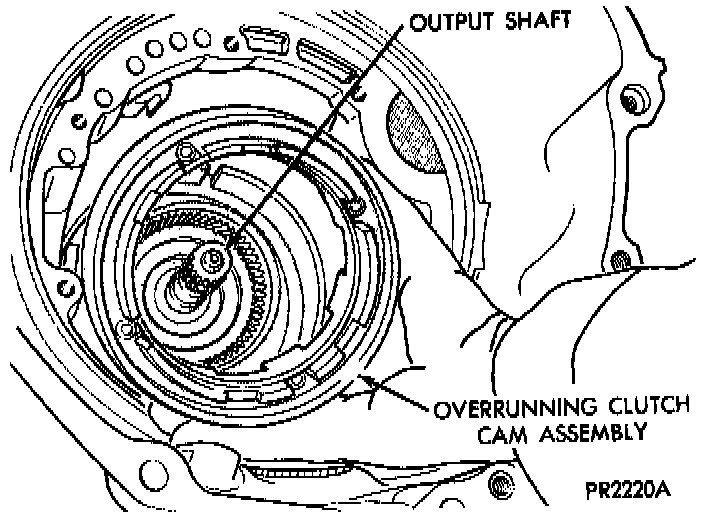

Overrunning Clutch Cam Assembly:

Overrunning Clutch Rollers And Springs:

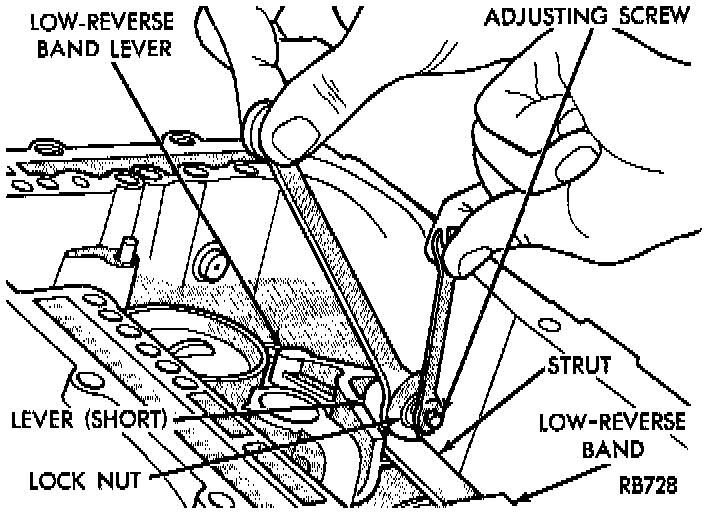

Loosen Or Adjust Low-Reverse Band:

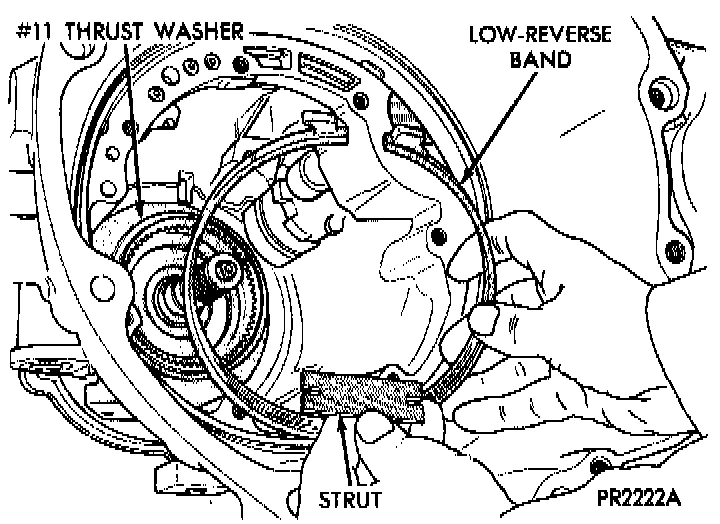

Low-Reverse Band And Strut:

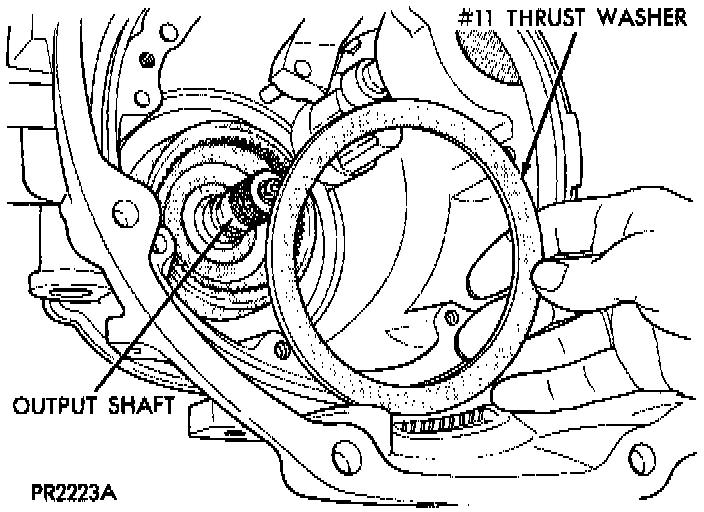

#11 Thrust Washer:

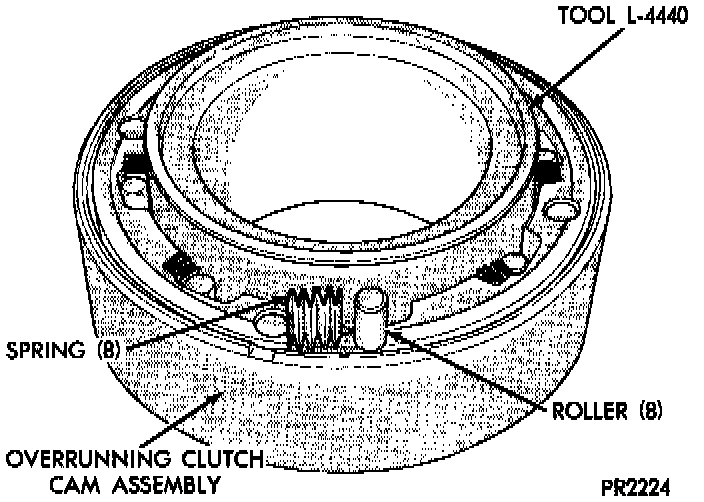

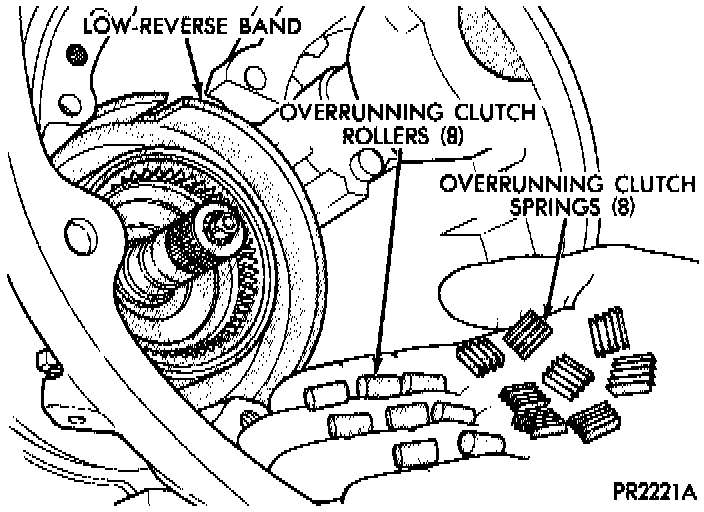

Install Overrunning Clutch Rollers And Springs:

6. When reassembling, reverse the above procedure.
