Differential Pressure Cut-Out Switch

Differential Pressure Cut-Out Switch:

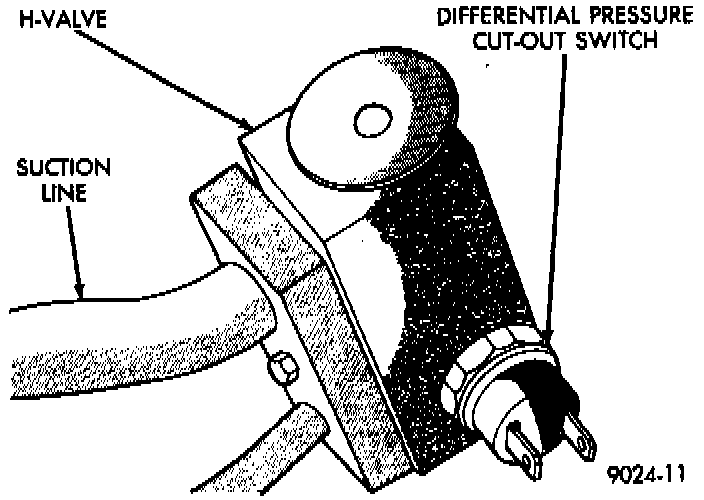

The Differential Pressure Cut-Off (DPCO) Switch monitors the liquid refrigerant pressure on the liquid side of the system. The DPCO is located on the expansion valve. The expansion valve is black in color when a variable displacement compressor is used. The DPCO turns off voltage to the compressor clutch coil when liquid refrigerant pressure drops to levels that could damage the compressor. The DPCO is a sealed factory calibrated unit. It must be replaced if defective.
