Fuel Tank Draining Procedure

1. Remove fuel filler cap and perform fuel system pressure release.
Fuel Pressure Release

2. Disconnect battery ground cable.
3. Raise vehicle on hoist.

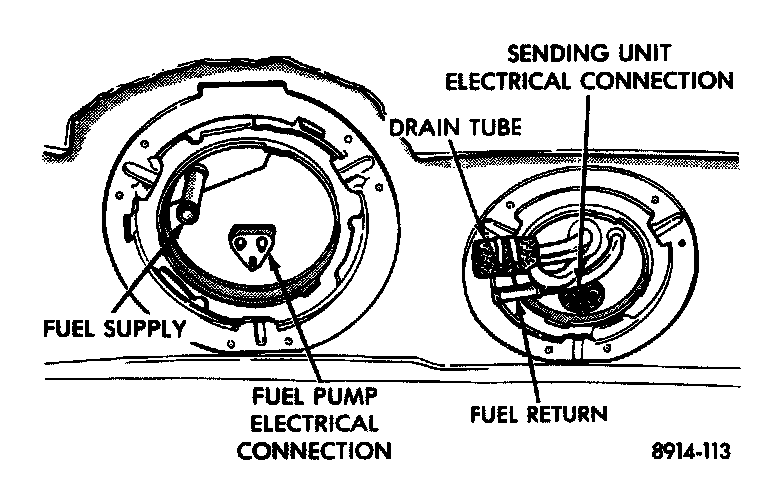

Drain Tube Connection Location:

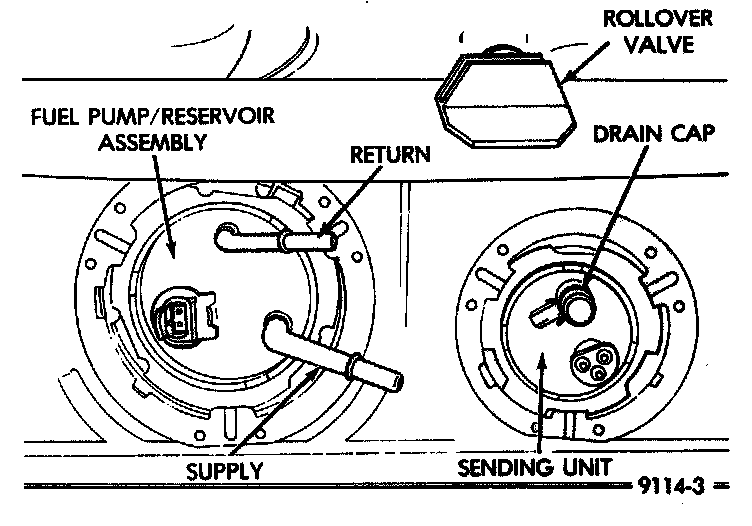

Drain Tube Connection Location - Early 1991 AP Convertible:

4. Remove drain tube rubber cap from tank unit and connect either a portable holding tank or a siphon hose to drain tube.
5. Drain fuel tank dry into holding tank or a properly labeled "gasoline" safety container.
