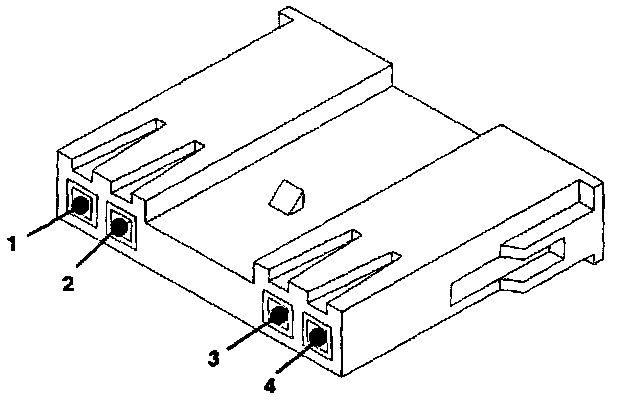

Cruise Control Switch






CAVITY CIRCUIT FUNCTION

1 V34 YL/RD Voltage Input
2 Z1 DB/* Ground (Not Used)
3 V32 WT S/C On/Off Switch
4 V37 BR/RD S/C Mode Select Signal
