Home
>>
Chrysler
>>
1994
>>
Lebaron Sedan V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

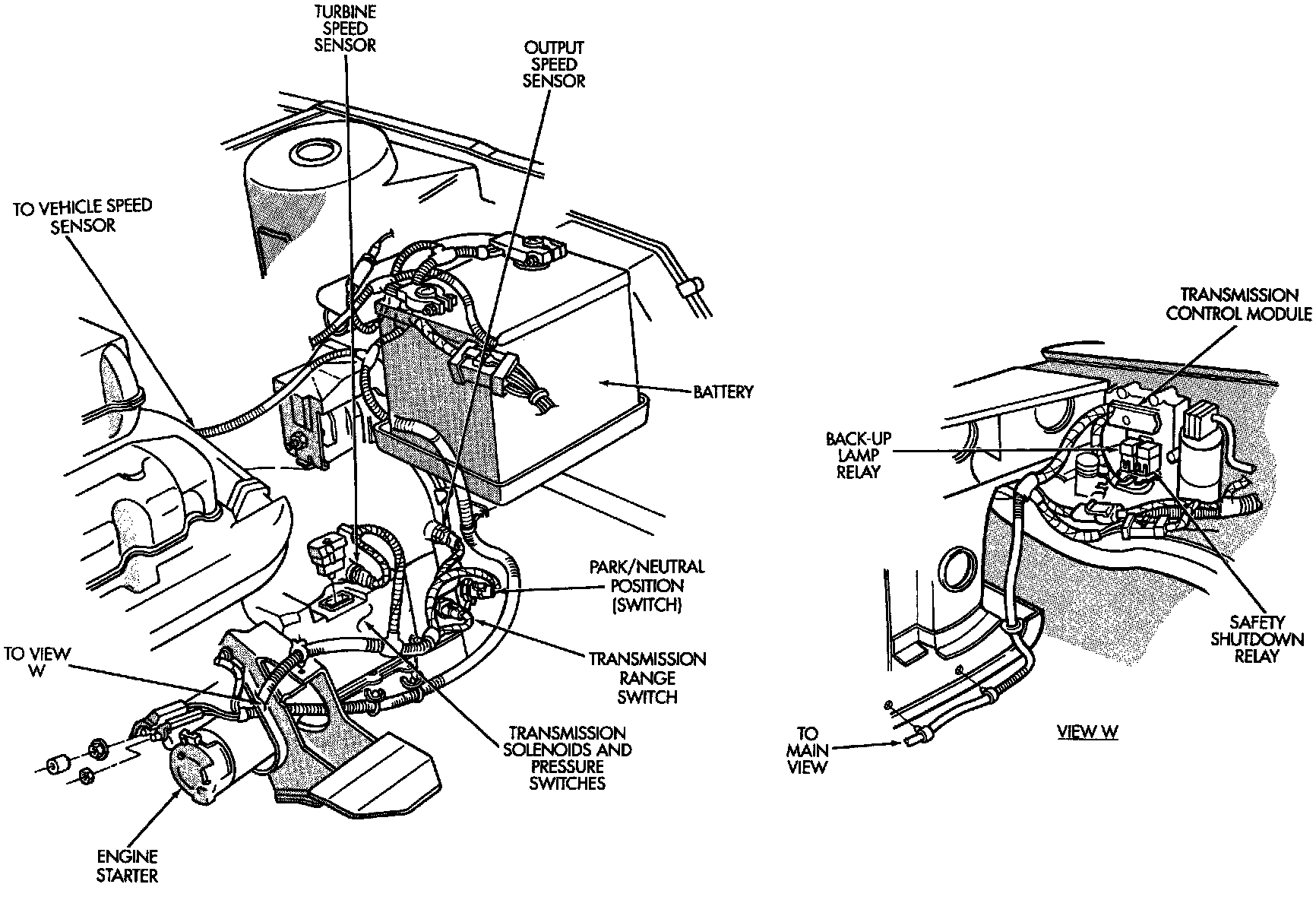

Transmission Wiring
>>
With 41TE Electronically Controlled Transmission
With 41TE Electronically Controlled Transmission
Transmission Wiring:
