Front Door Panel: Service and Repair

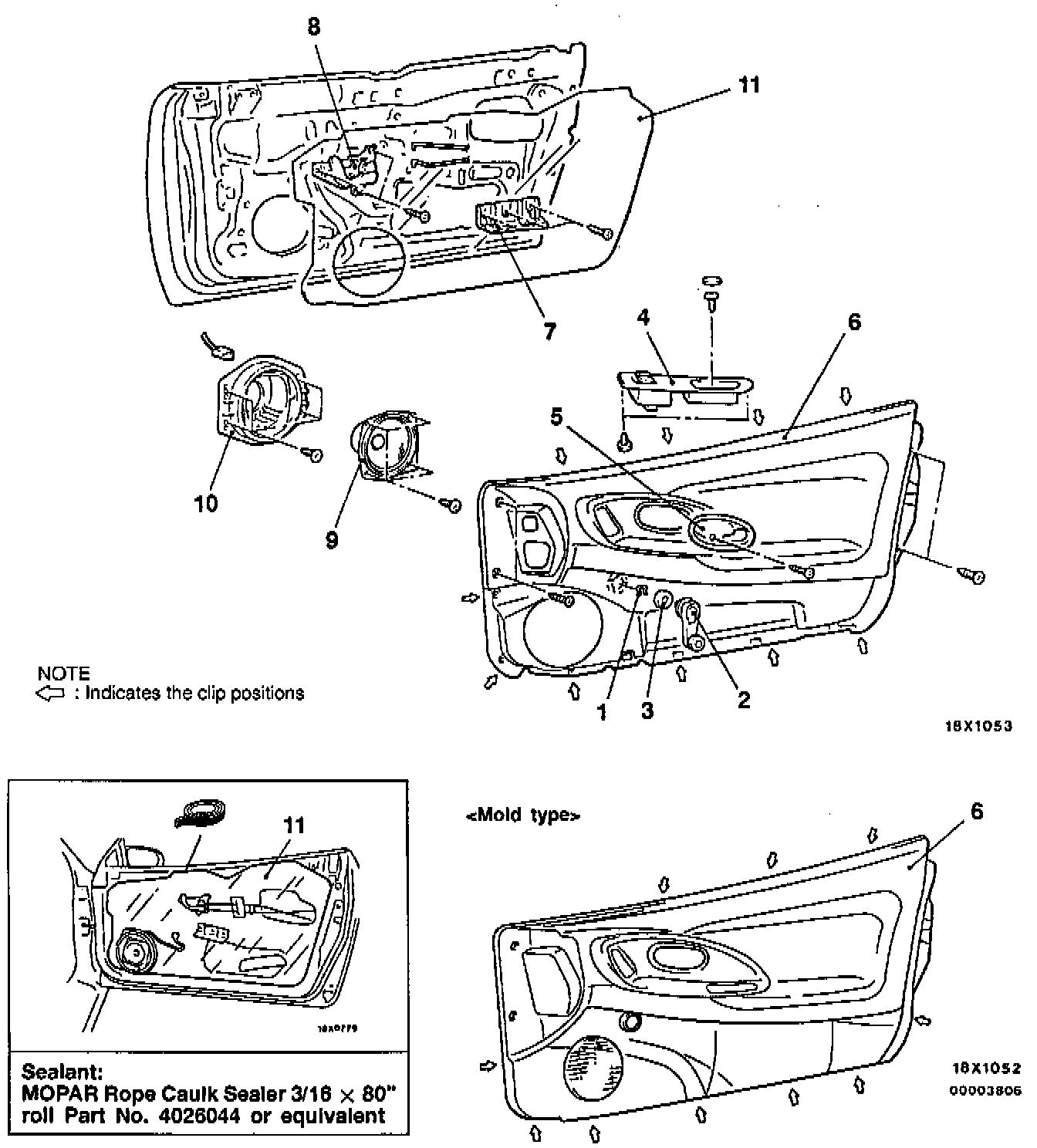

REMOVAL STEPS
1. Clip
2. Regulator handle
3. Escutcheon
4. Pull handle box
5. Cover
6. Door trim
7. Pull handle bracket
8. Door inside handle
9. Door speaker assembly
10. Spear cover
11. Waterproof film

REMOVAL, SERVICE POINTS





Clip Removal
Remove the clip by using a shop towel, and then remove the regulator handle.





Cover Removal

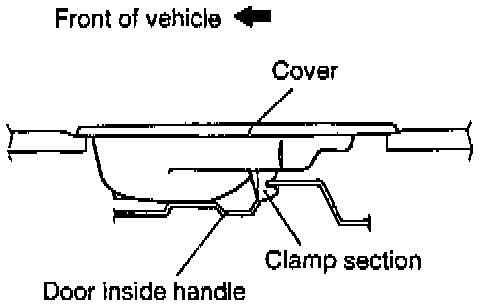

Remove the cover mounting screw and remove the cover by pushing it toward the front of the vehicle to remove the clamp section from the door inside handle.





Door Trim Removal
After removing the trim mounting screws and clips, push up the trim to remove it from the door window inner weatherstrip clips.

INSTALLATION SERVICE POINT





Regulator Handle Installation
1. Install the escutcheon and the clip to the regulator handle.

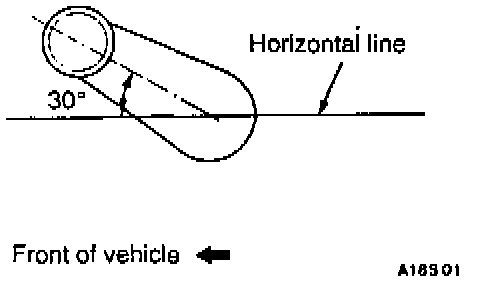

2. Fully close the door glass, and install the regulator handle so that it faces as shown in the illustration.
