Wiring Diagrams

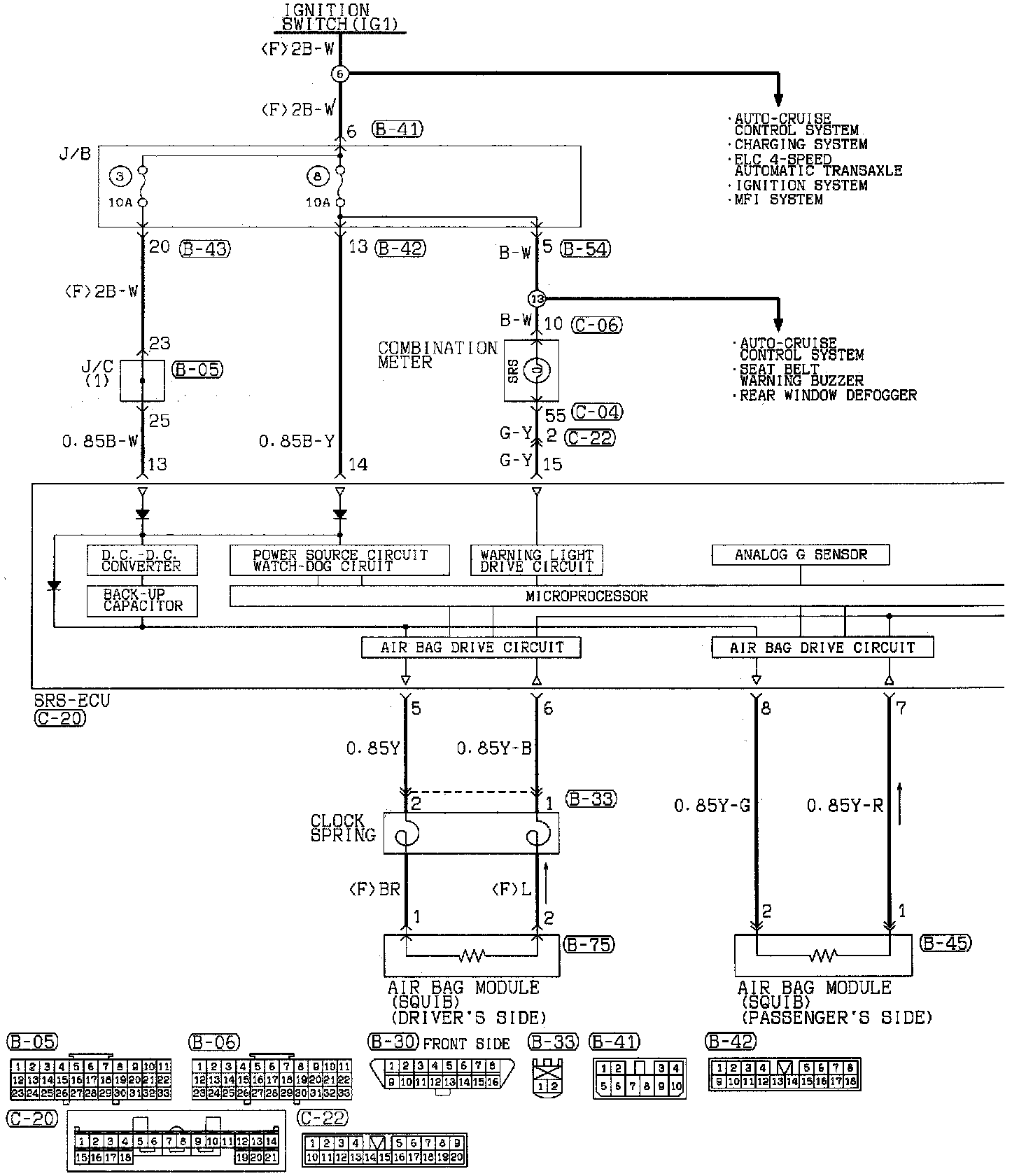

Circuit Diagram (Part 1 Of 2):

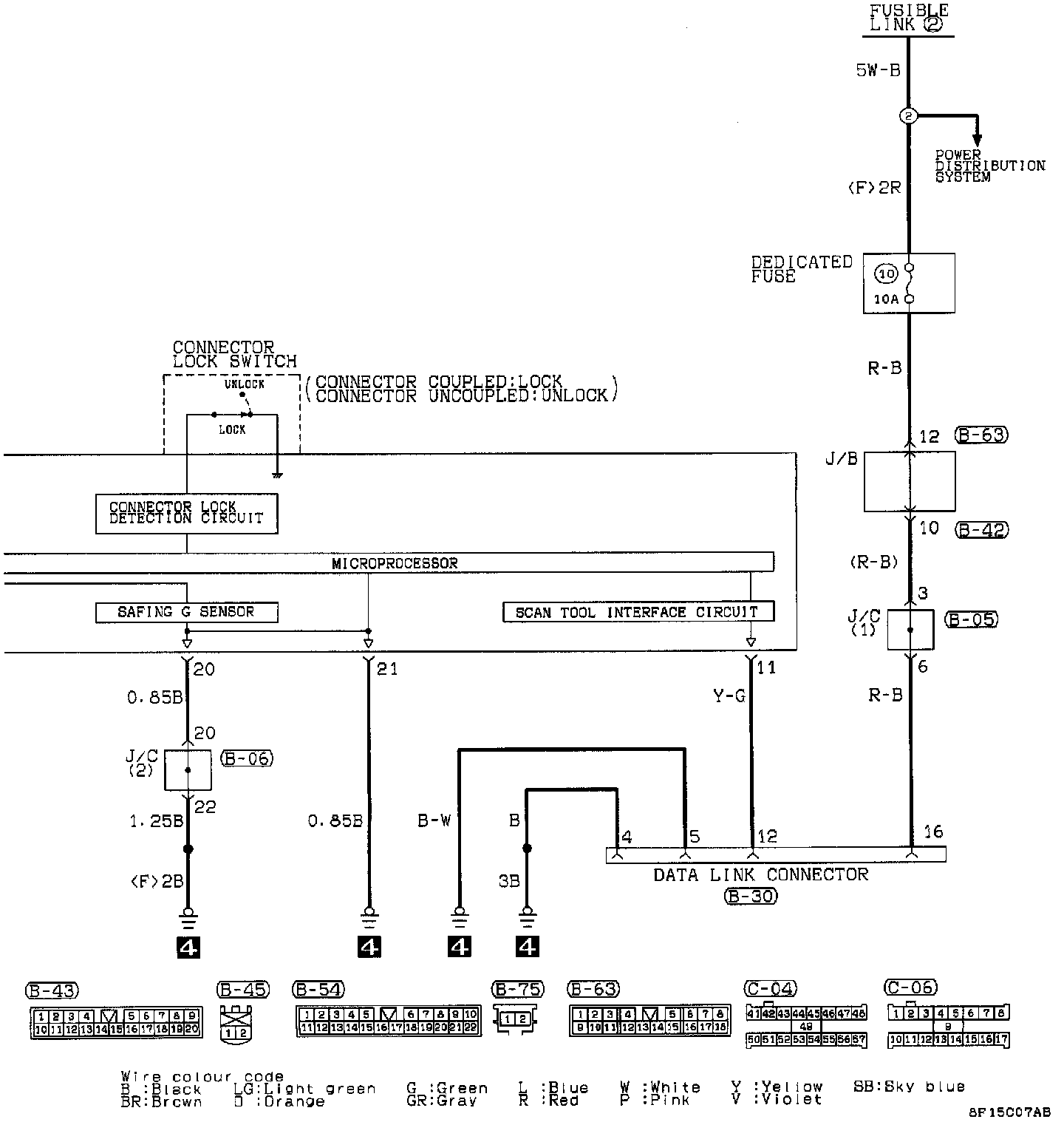

Circuit Diagram (Part 2 Of 2):

CAUTION:
1. Do not repair, splice or modify SRS wiring (except for specific repairs to the body wiring harness; Vehicle Damage Warningsreplace wiring if necessary, after reading and following all precautions and procedures.
2. Do not use an analog ohmmeter to check SRS wiring or components; use only special tools and digital multi-meter. Tools and Equipment.
