Evaporative Emissions System: Service and Repair

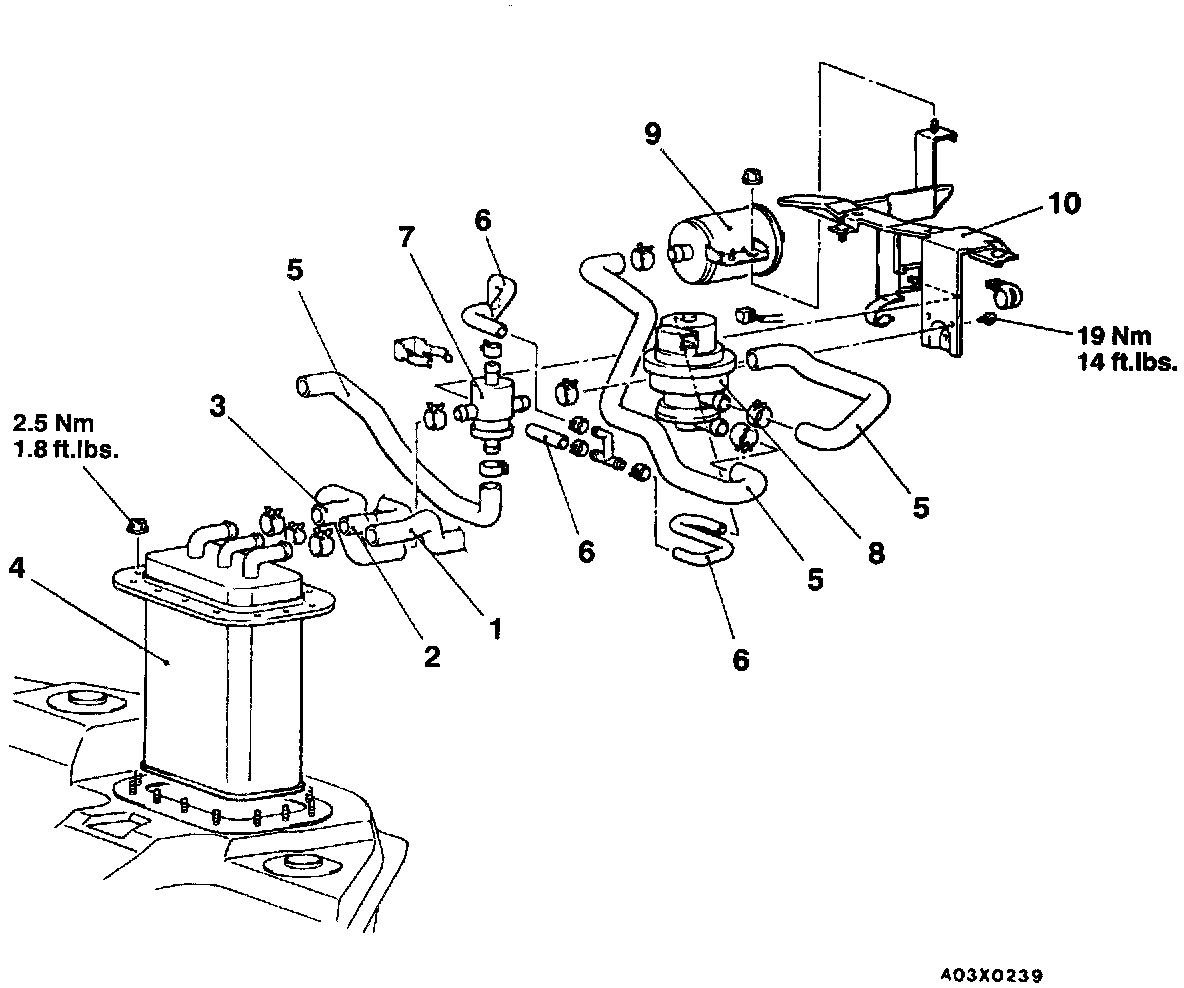

Evaporative Emission Control System:

NOTE: To remove the canister you must first remove the fuel tank.

1. Vapor hose
2. Purge hose
3. Vent hose
4. Evaporative emission canister assembly
5. Vent hose
6. Control hose
7. Vent valve
8. Evaporative emission ventilation solenoid
9. Air filter
10. Bracket
