Camshaft Position Sensor: Service and Repair

Removal

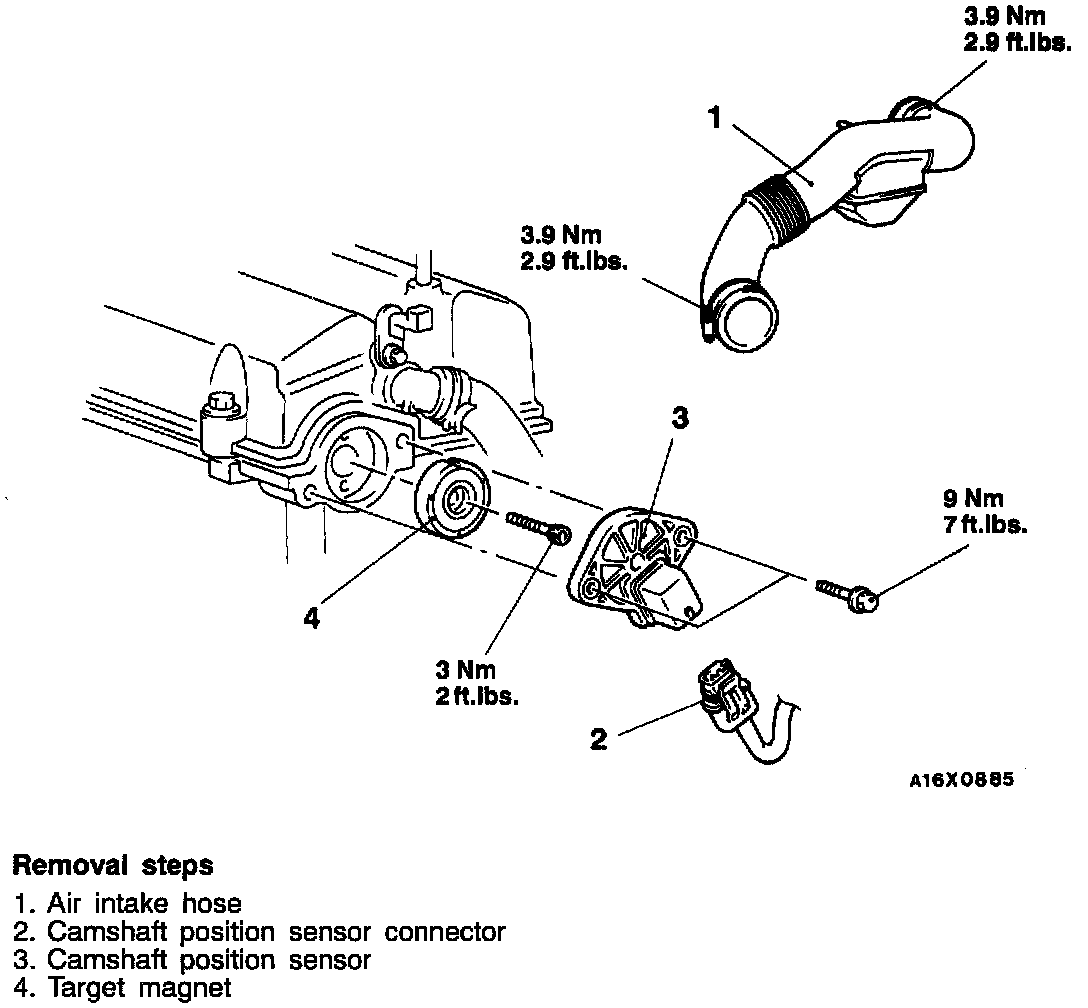

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image and note the following.




Step 4: Target Magnet Installation

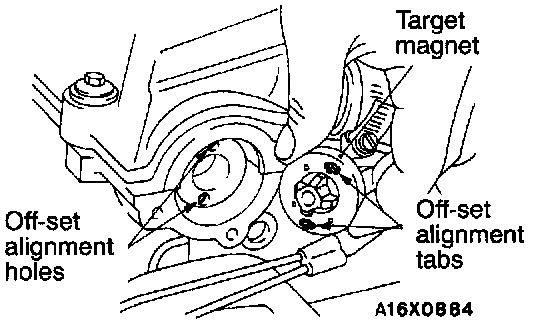

To install the target magnet, align the off-set tabs of the magnet with the off-set holes of the camshaft.
