Vehicles With Keyless Entry System

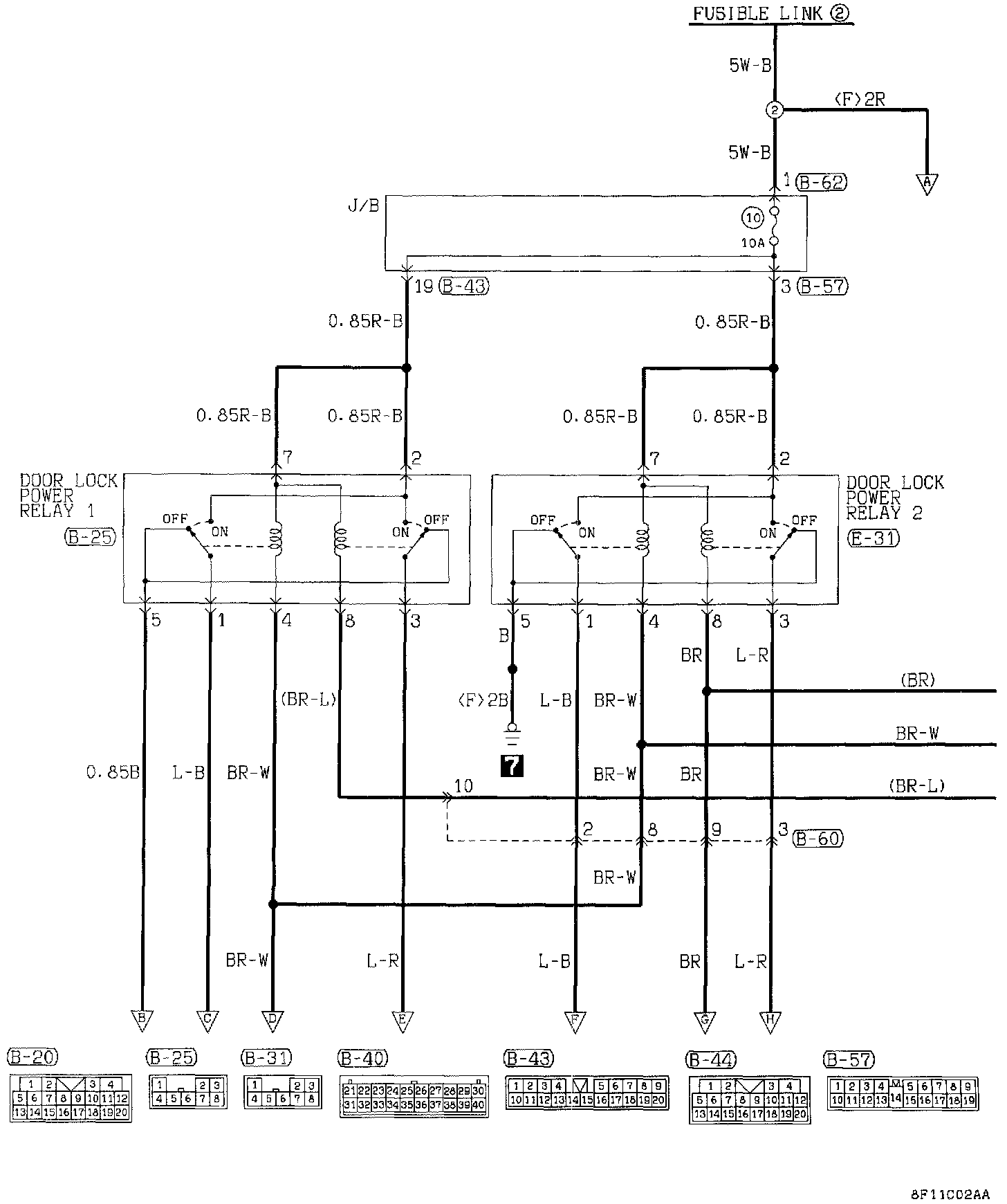

Central Door Locking System <Vehicles With Keyless Entry System> (Part 1 Of 6):

Door Lock Power Relay (1 and 2)
J/B

Central Door Locking System <Vehicles With Keyless Entry System> (Part 2 Of 6):

Diode
Door Lock Switch (Left and Right Side)
Door Lock Key Cylinder Switch (Left and Right Side)
EATCS-ECU
Receiver

Central Door Locking System <Vehicles With Keyless Entry System> (Part 3 Of 6):

Dedicated Fuse
EATCS-ECU
J/B
J/C (1)
Key Reminder Switch
Receiver

Central Door Locking System <Vehicles With Keyless Entry System> (Part 4 Of 6):

Door Lock Actuator (Left and Right Side)
EATCS-ECU
J/C (2)

Central Door Locking System <Vehicles With Keyless Entry System> (Part 5 Of 6):

Data Link Connector
Door Switch (Left and Right Side)
J/B
- EATCS-ECU

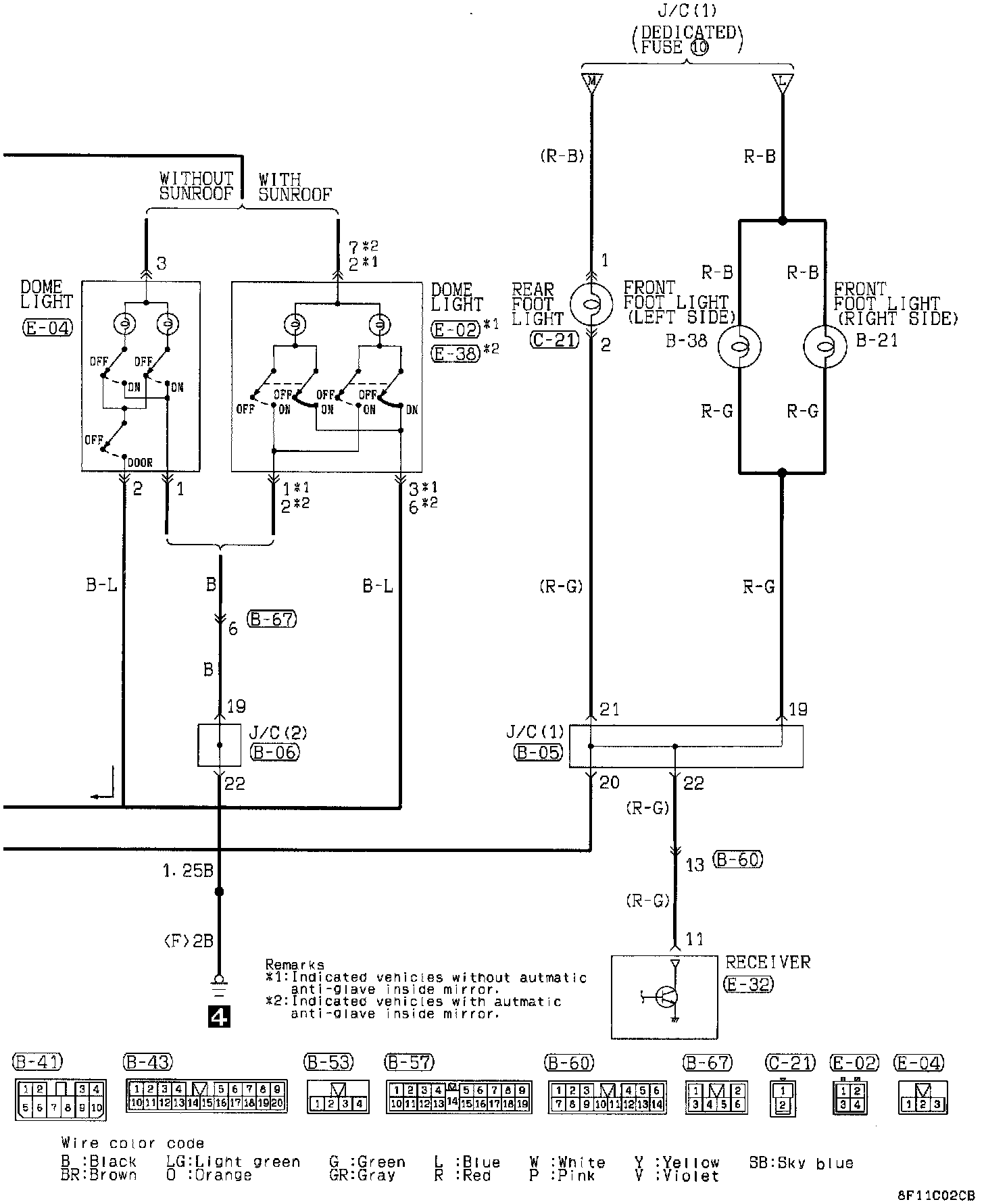

Central Door Locking System <Vehicles With Keyless Entry System> (Part 6 Of 6):

Dome Light
Front Foot Light (Left and Right Side)
J/C (1, 2)
Receiver
