Power Steering Line/Hose: Service and Repair






REMOVAL
1. Drain power steering fluid.
2. Remove front bumper.
3. Remove washer tank.

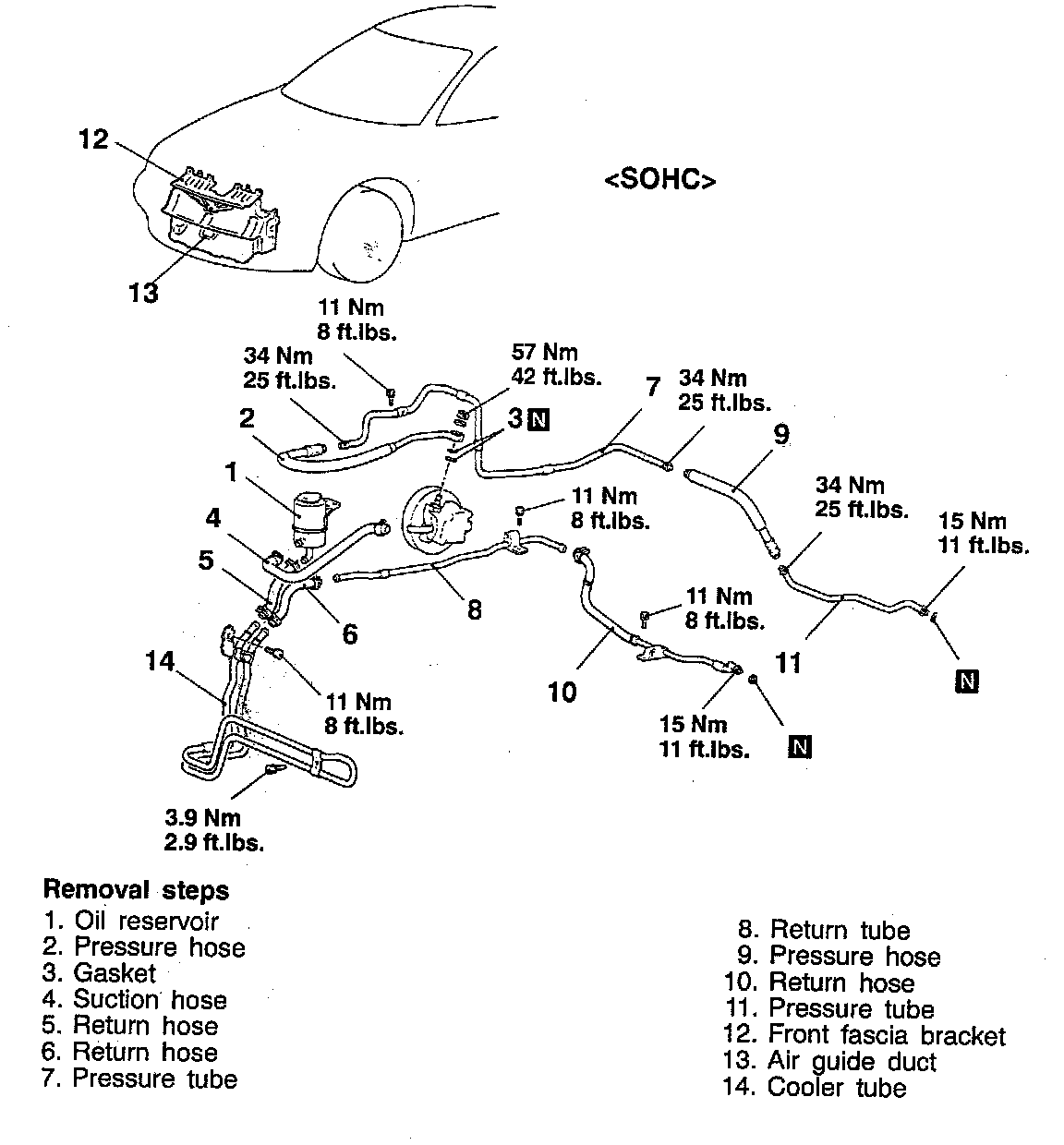

4. Follow removal procedure outlined in the illustration.

INSTALLATION
1. Follow removal procedure in reverse order for installation, noting the following.





- When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.
2. Install front bumper.
3. Install washer tank.
4. Fill power steering fluid.
5. Bleed power steering fluid line.
