Spark Plug Cable Resistance Check

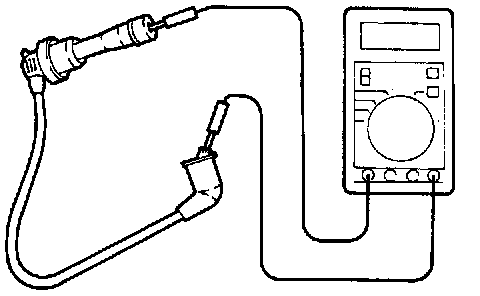

Measure the resistance of the all spark plug leads.
1. Check cap and coating for cracks.
2. Measure resistance.
Limit: max. 22 k ohm
