Windows

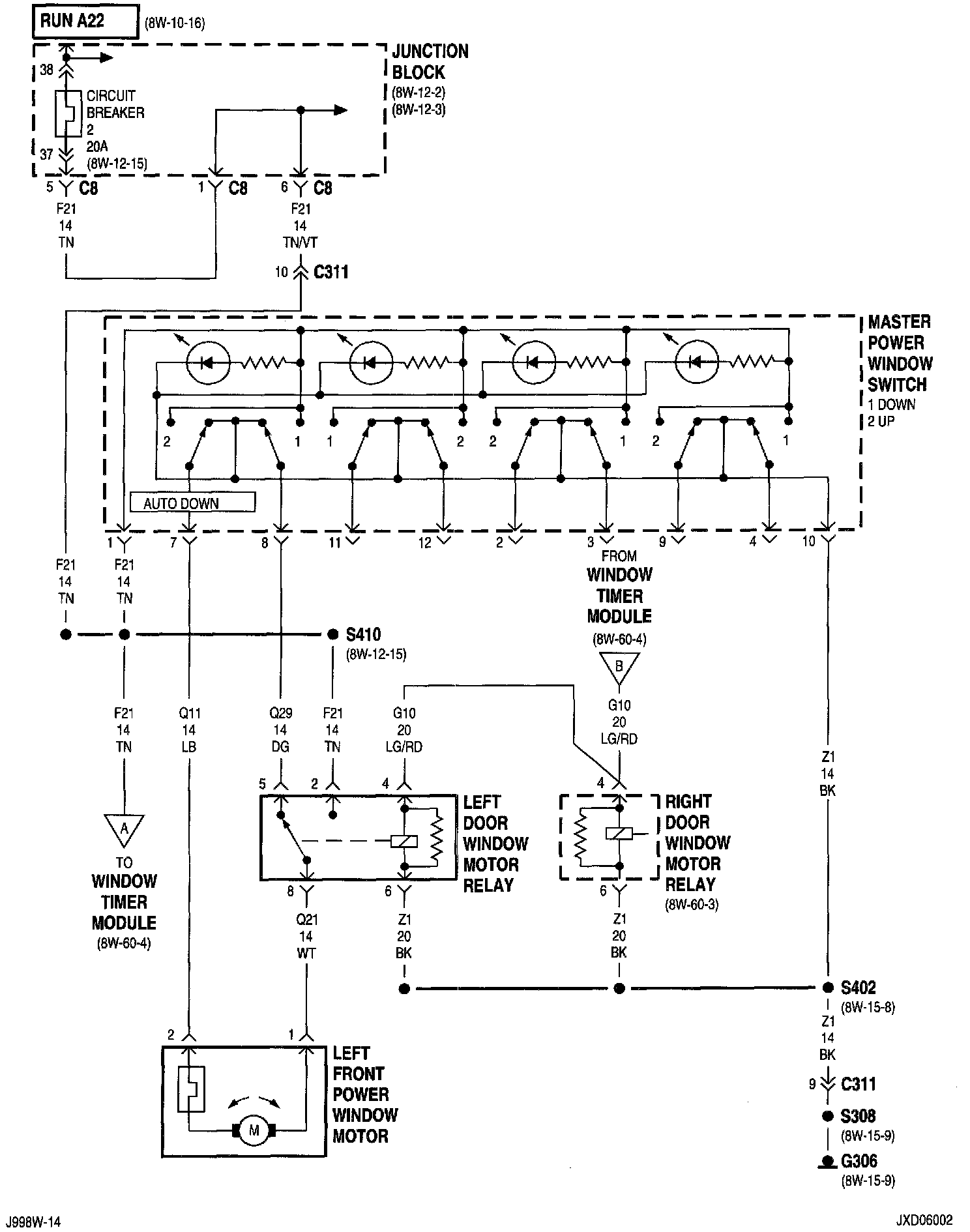

Power Windows 8w-60-2:




Circuit Breaker 2 (JB)
G306
Junction Block
Left Door Window Motor Relay
Left Front Power Window Motor
Master Power Window Switch
Right Door Window Motor Relay


Power Windows 8w-60-3:




Circuit Breaker 2 (JB)
G306
Junction Block
Left Door Window Motor Relay
Master Power Window Switch
Right Door Window Motor Relay
Right Front Power Window Motor
Right Power Window Switch


Power Windows 8w-60-4:




G306
Left Rear Power Window Motor
Master Power Window Switch
Power Top Switch
Right Rear Power Window Motor
Window Timer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
