Power Steering Line/Hose: Service and Repair

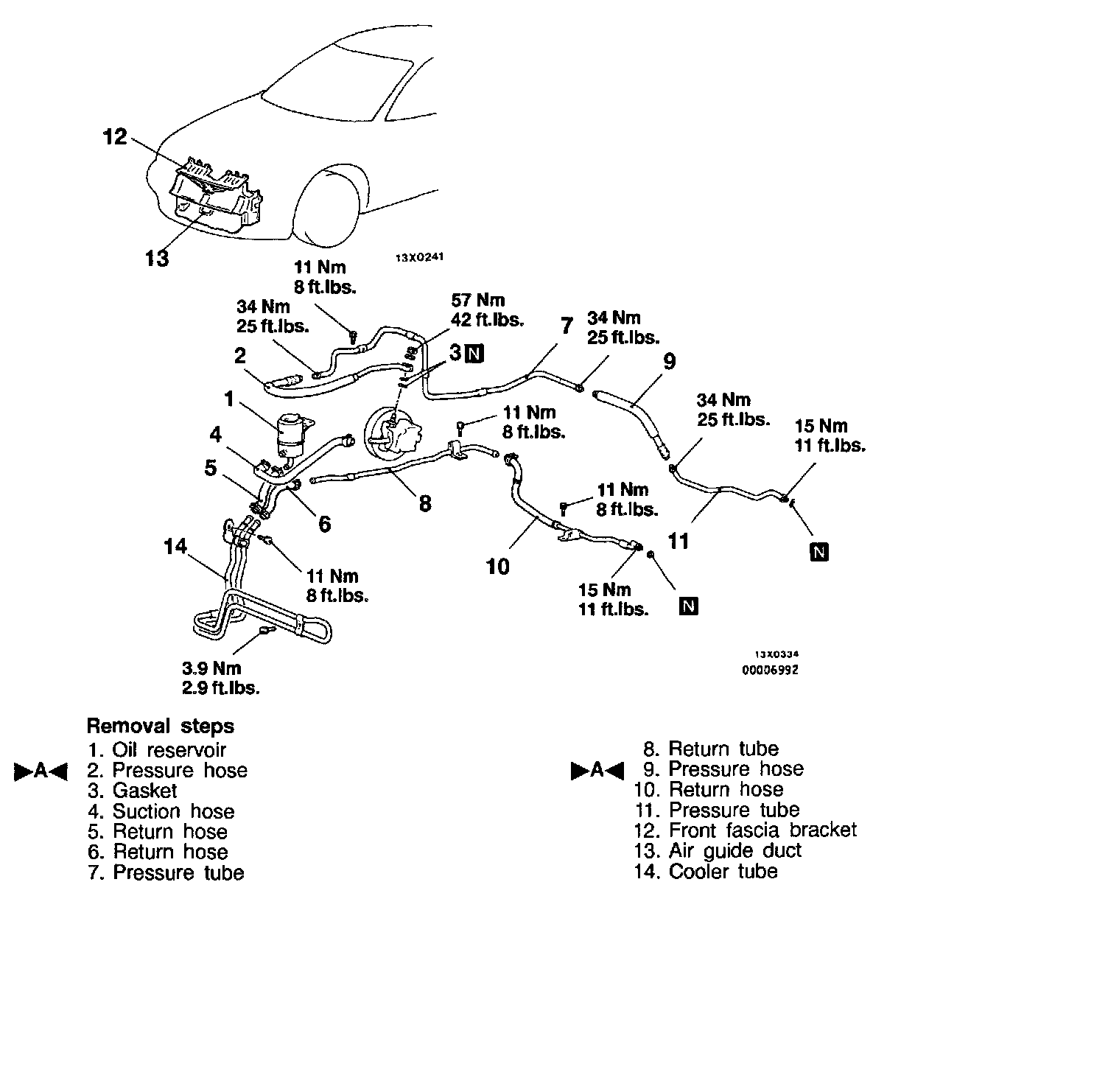

IMPORTANT: Follow the steps in the image and note the following procedures below. Refer to images for "" type references.

REMOVAL AND INSTALLATION

Installation Service Point
>A< Pressure Hose Installation

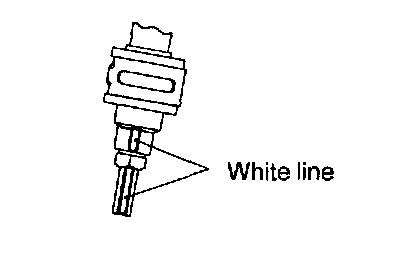

When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.
