Marker Lamp: Service and Repair

Front Side Marker Housing Replacement

REMOVAL
1. Loosen fascia as necessary to access lamp.
2. Remove bulb socket from lamp.

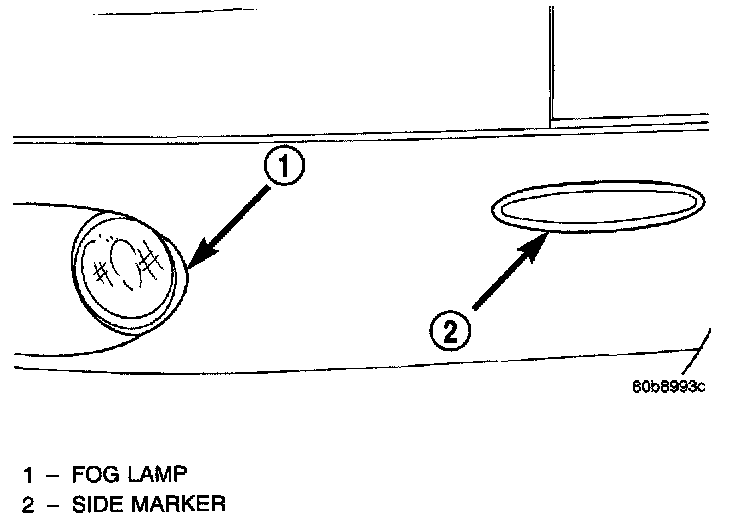

Front Side Marker Lamp Housing:




3. Disconnect fasteners attaching side marker lamp to fascia.
4. Remove attaching fasteners.
5. Remove lamp housing from vehicle.

INSTALLATION
1. Place lamp in position on fascia.
2. Install lamp fasteners.
3. Install bulb socket in lamp.
4. Connect wire harness connector.
5. Verify lamp operation.
6. Attach fascia to vehicle.
