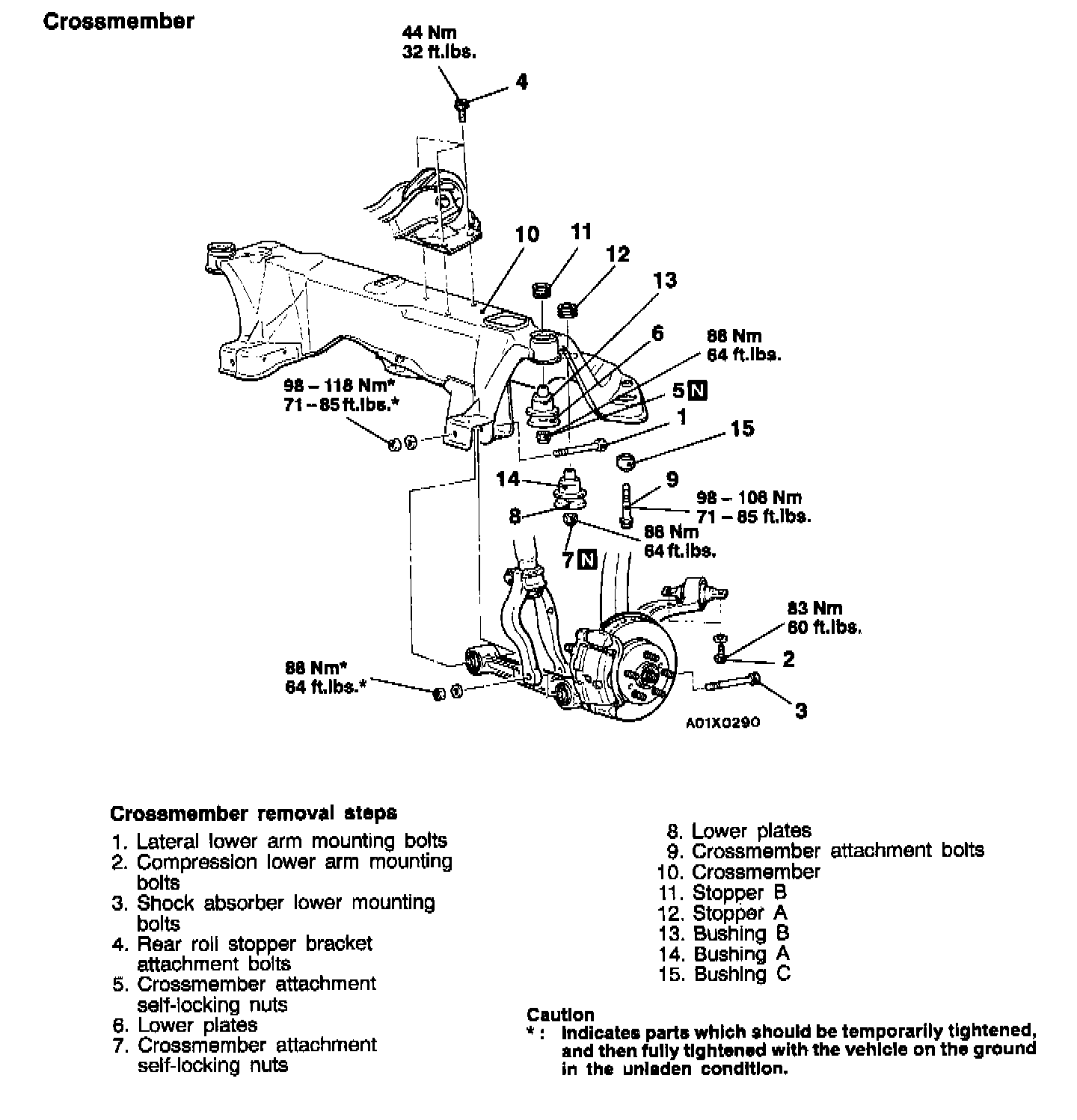

Front Cross-Member Bushing: Service and Repair

CROSS MEMBER BUSHING A AND B

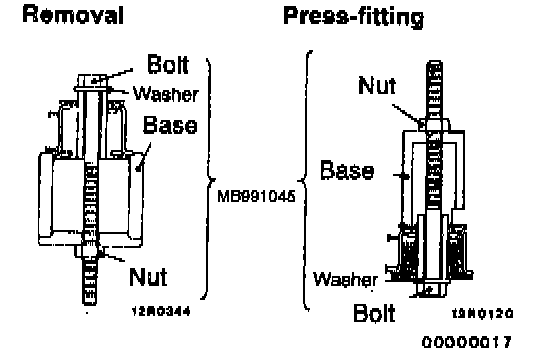

1. Apply soapy water to the contact surface of the bush when press-fitting the bush.

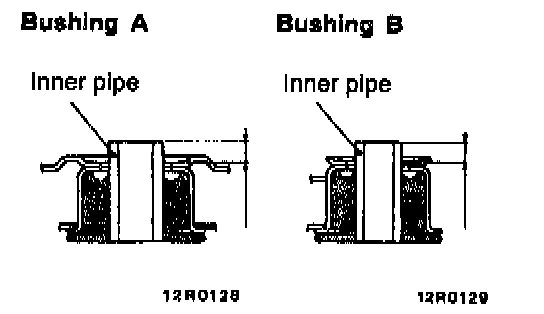

2. Press-fit the bush so that the inner pipe projection is at the standard length.
Standard values
Bushing A: 9.0 ± 1.0 mm (0.35 ± 0.04 inch)
Bushing B: 4.0 ± 1.0 mm (0.16 ± 0.04 inch)

CROSSMEMBER BUSHING C

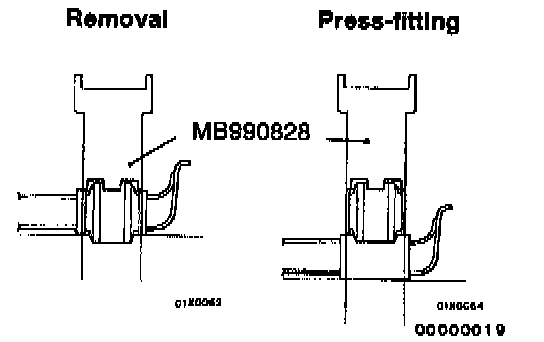

1. Use the special tool to drive out and press-fit the crossmember bushing C.

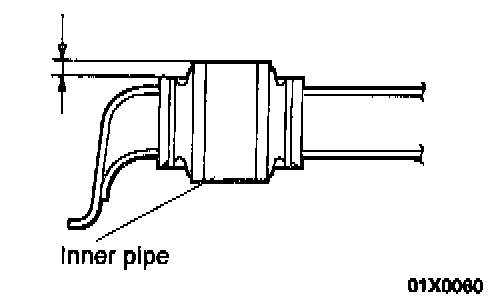

2. Press-fit the bush so that the inner pipe projection is at the standard length.
Standard value: 4.0 ± 0.5 mm (0.16 ± 0.02 inch)
