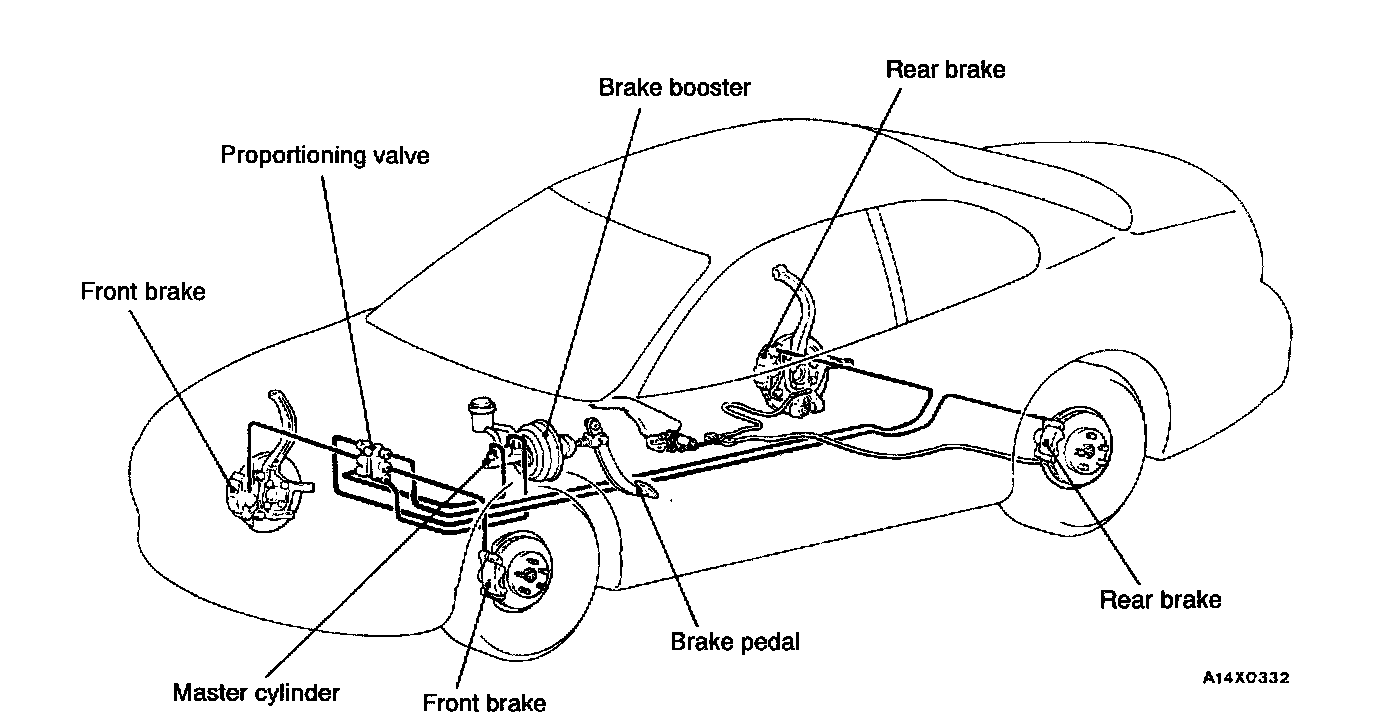

Brakes and Traction Control: Description and Operation

The brake system has high reliability and durability which maintains excellent braking performance. The main features are as follows.
^ A dual type master cylinder is equipped on all models.
^ Tandem type brake booster have been adopted.
^ Disc brakes has been adopted as the front brakes.
- Floating caliper, single-piston and ventilated disc (M-R46V)
^ Disc brakes have been adopted as the rear brakes.
- Disc brake: floating caliper, single-piston and solid disc (M-R45S)
