Auto-Cruise Control Switch Check

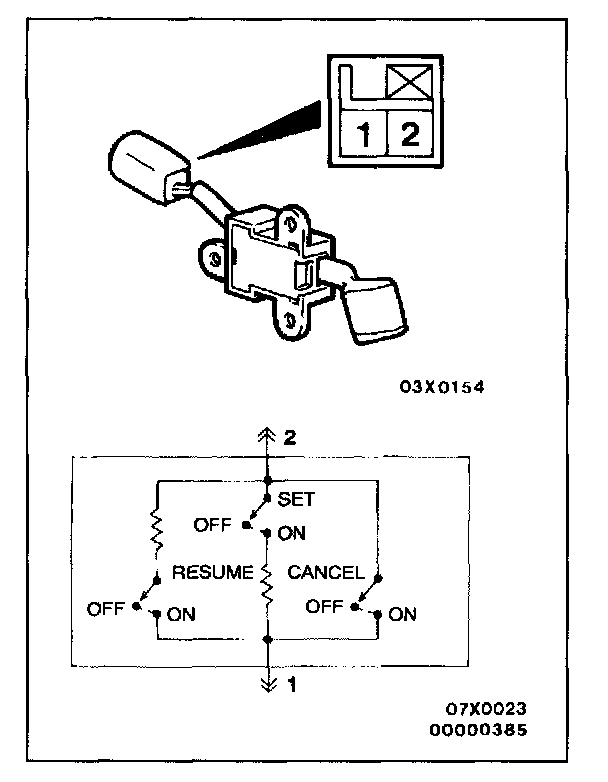

Measure the resistance between the terminals when each of the SET, RESUME and CANCEL switches is pressed.

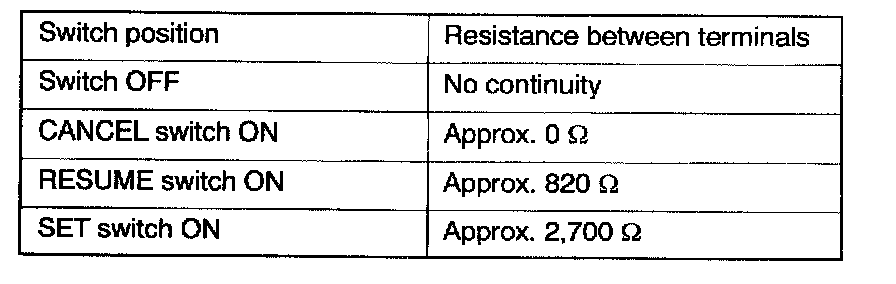

If the values measured at this time correspond to those in the table, then there is no problem.
