Valve Spring: Testing and Inspection
(1)

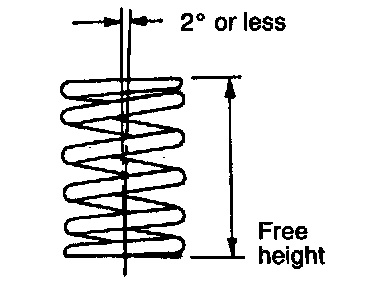

Measure the free height of the spring and, if it is smaller than the limit, replace.
Standard value:
51.0 mm (2.01 inches) Limit:
50.0 mm (1.97 inches) (2)
Measure the squareness of the spring and, if the limit is exceeded, replace.
Standard value: 20 or less
Limit: Max. 40
