Overhaul

DISASSEMBLY SERVICE POINT

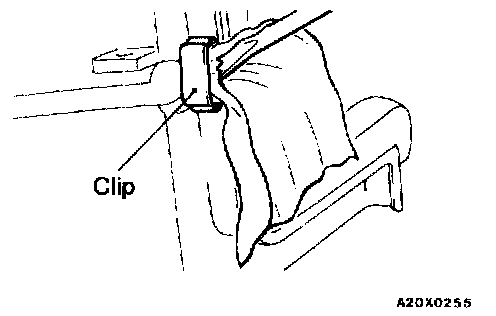

Clip Removal
Remove the clips with a flat-tipped screwdriver covered with a shop towel to prevent damage to case surfaces.

ASSEMBLY

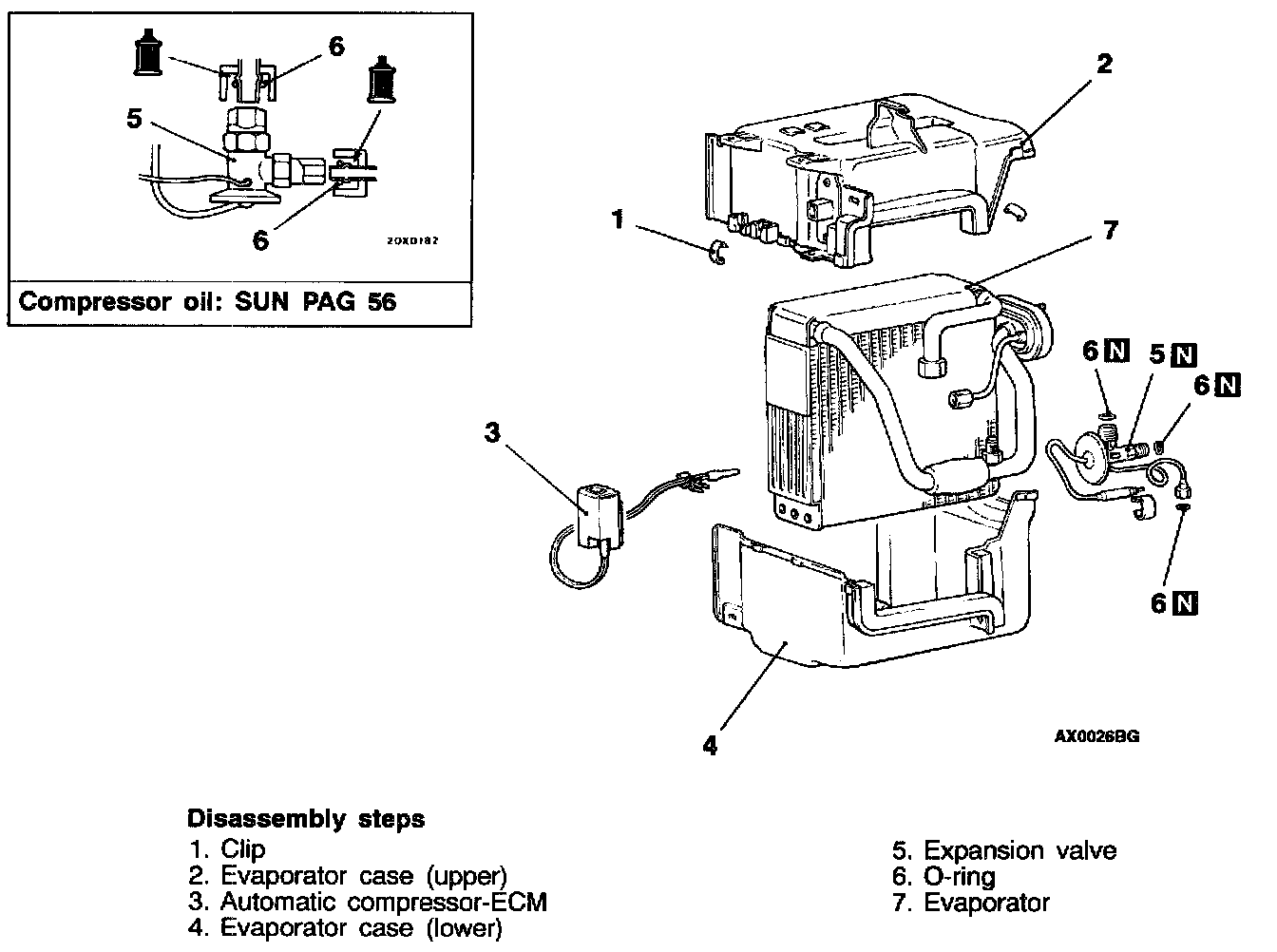

To assemble reverse steps in image.
