Control Unit Locations

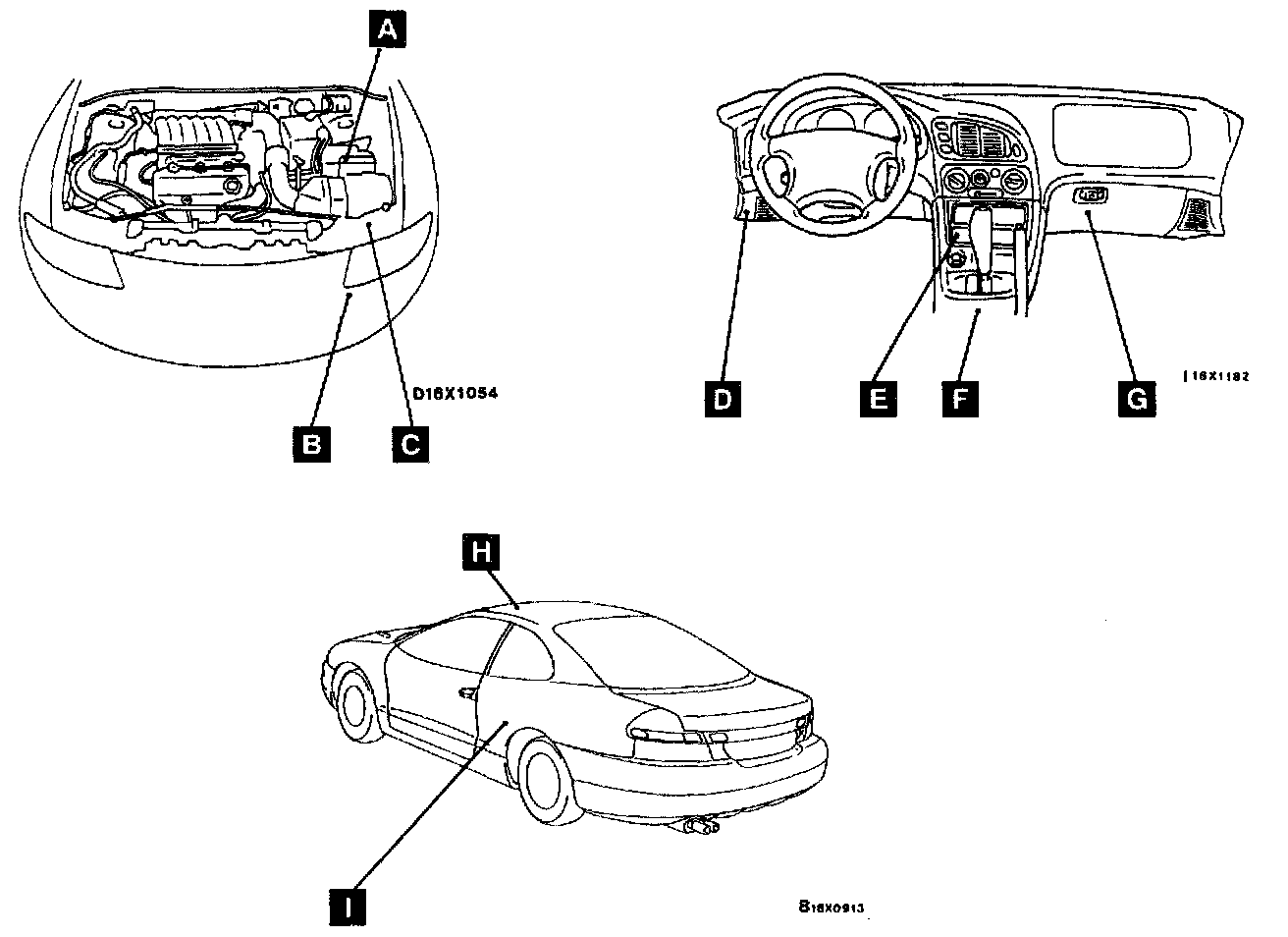

Control Unit Overall Views:

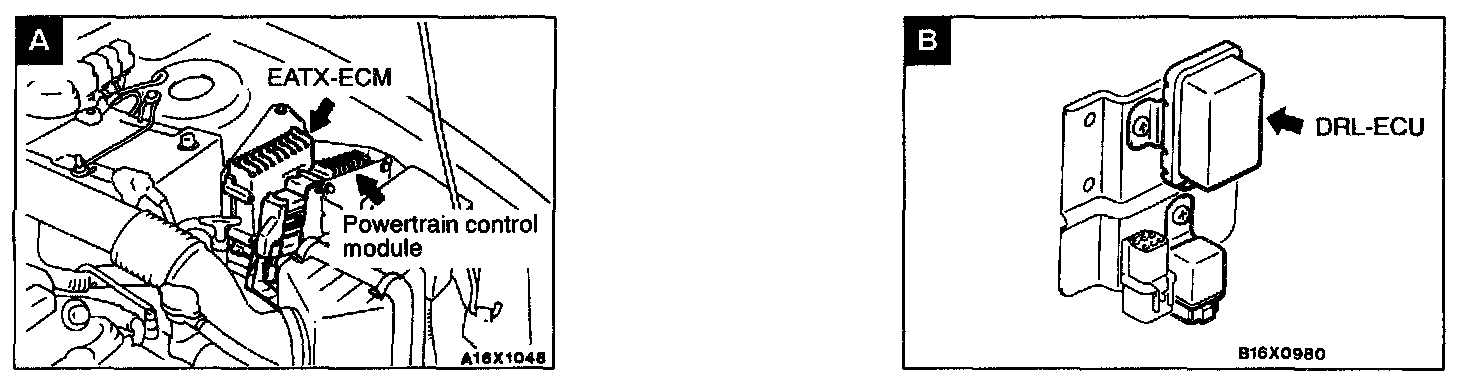

Control Unit Location Views A - B:
Control Unit Location Views C - I:
Name SymbolAutomatic Compressor - ECM
G
DRL - ECU
B
EATX - ECM
A
ETACS - ECU
D
Hydraulic Unit (Built-in ABS-ECU)
C
Illumination Module (Dimmer Unit)
E
Powertrain Control Module
A
Receiver
I
SRS - ECU
F
Sunroof - ECU
H
