Rear Suspension
OVERVIEWMeasure wheel alignment with alignment equipment on level ground.
The rear suspension and wheels should be serviced to the normal condition prior to wheel alignment.
TOE-IN
Standard value: 3 ± 3 mm (0.12 ± 0.12 inch)

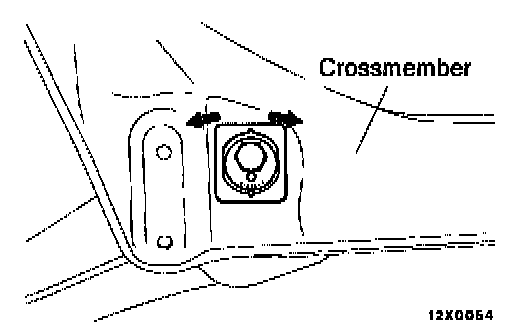

Adjustment is carried out by turning the toe control arm mounting bolt to the left or right by equal amounts.
L.H.: Turning clockwise toe-out direction
R.H.: Turning clockwise toe-in direction
Furthermore, toe adjustment can be made at graduations of approximately 1.3 mm (0.05 inch).
CAMBER
Standard value: - 1°20' + 30' (Left/right deviation within 30')
NOTE:
1. Camber is preset at the factory and can not be adjusted.
2. If camber is not within the standard value, check and replace bent or damaged parts.
