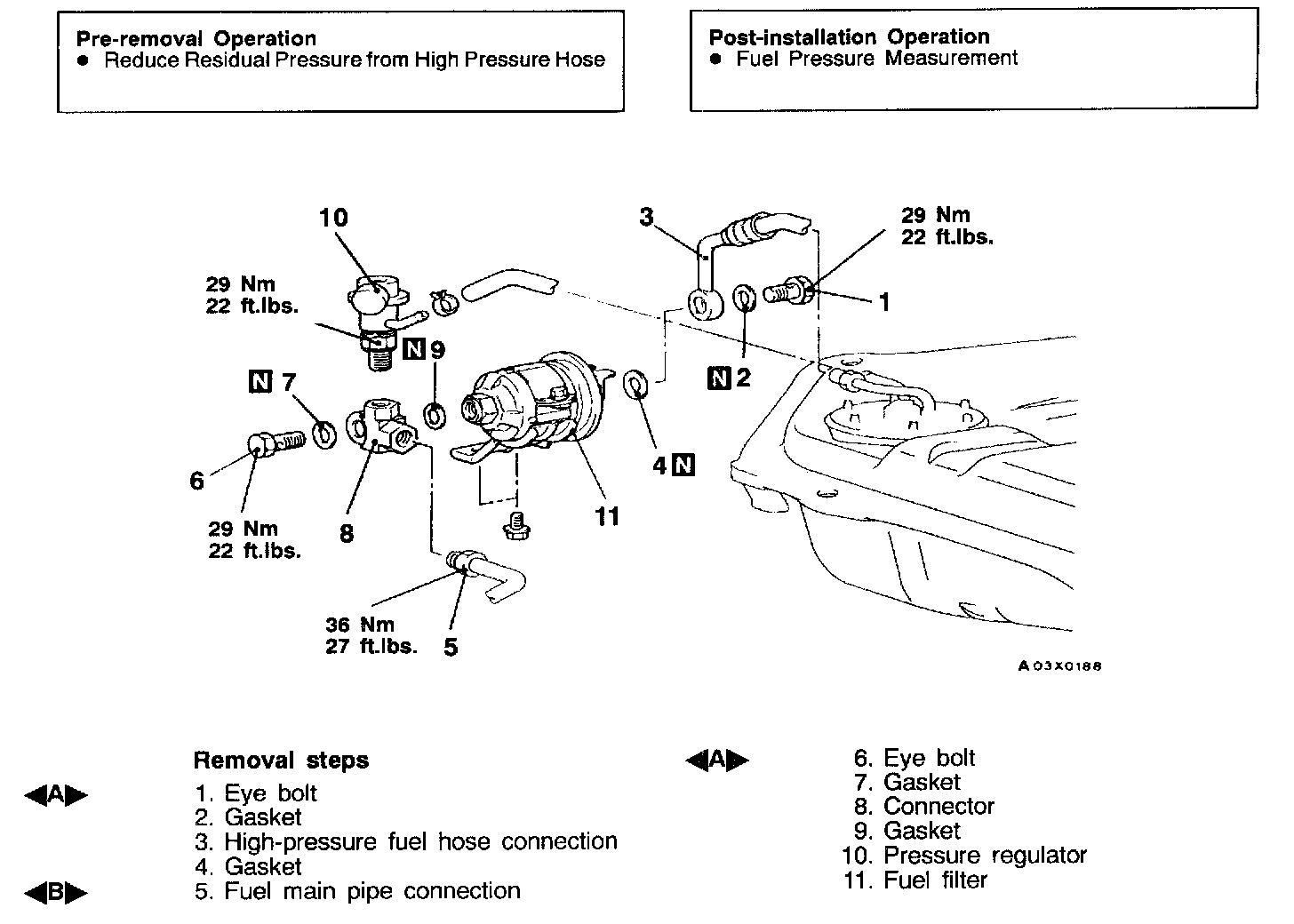

Fuel Filter: Service and Repair

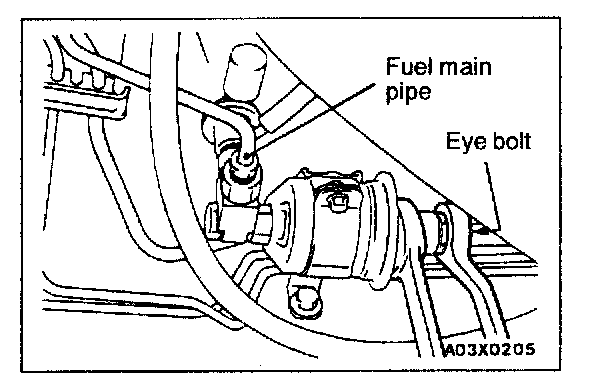

REMOVAL AND INSTALLATIONREMOVAL SERVICE POINTS EYE BOLT REMOVALHold the
fuel filter with a spanner and remove the eye bolt.
CAUTION: As there will be some pressure remaining in the fuel pipe line, cover it with a rag to prevent fuel from spraying out.

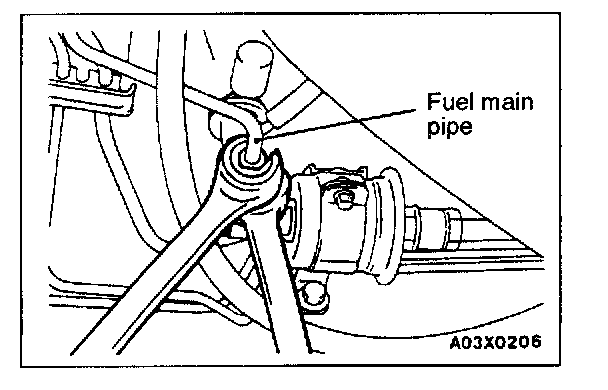

FUEL MAIN PIPE DISCONNECTION
Hold the fuel filter with a spanner and loosen the flare nut. Then disconnect the fuel main pipe.
