Fail-Safe Function Reference Table

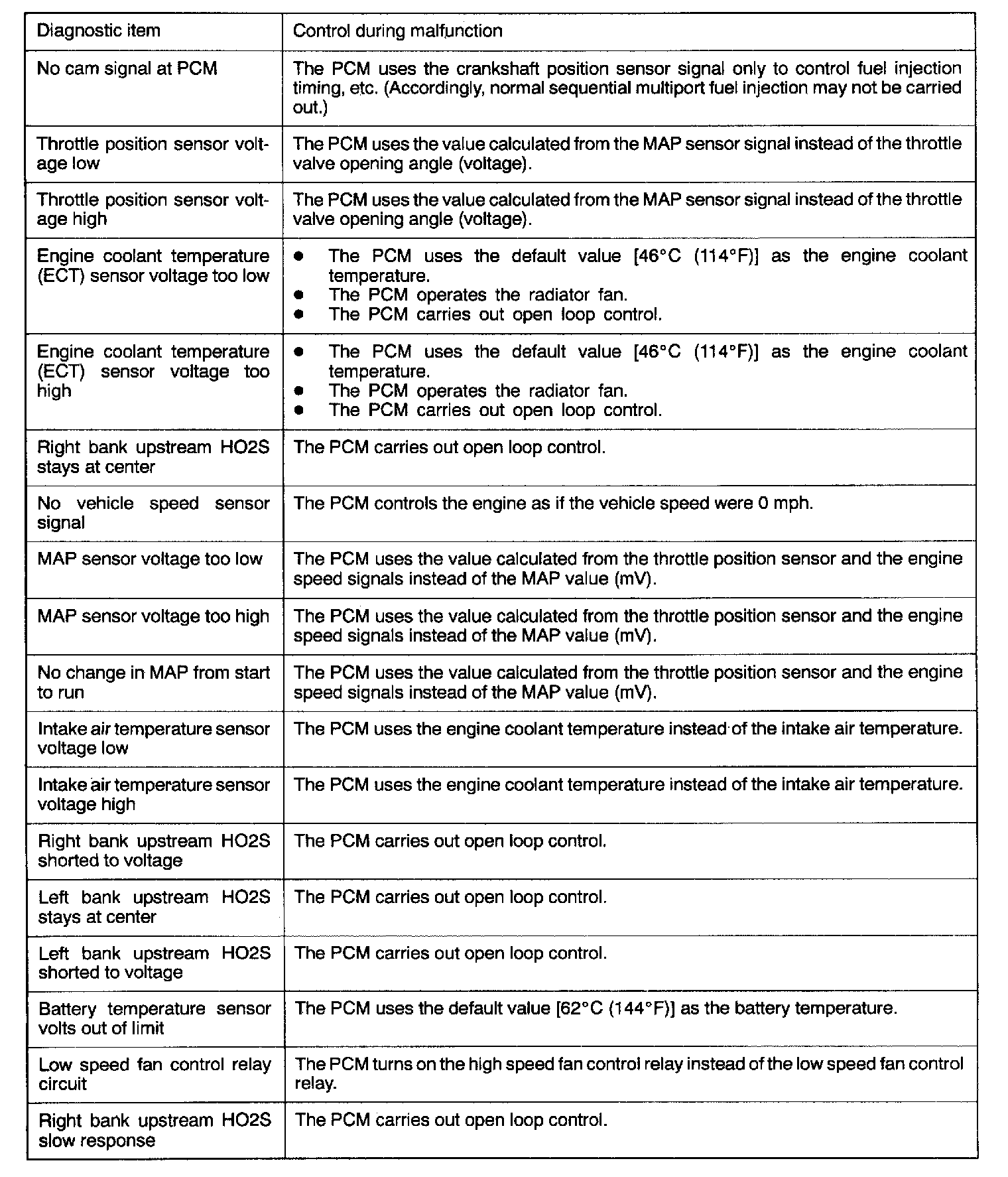

Fail-Safe/Backup Function (Limp-In Mode) Table (Part 1):
Fail-Safe/Backup Function (Limp-In Mode) Table (Part 2):
When the PCM detects the following malfunction(s), the PCM carries out fail safe/back-up control. In addition, the corresponding DTC number(s) can be identified by using the scan tool.
