Actuator Test Reference Table

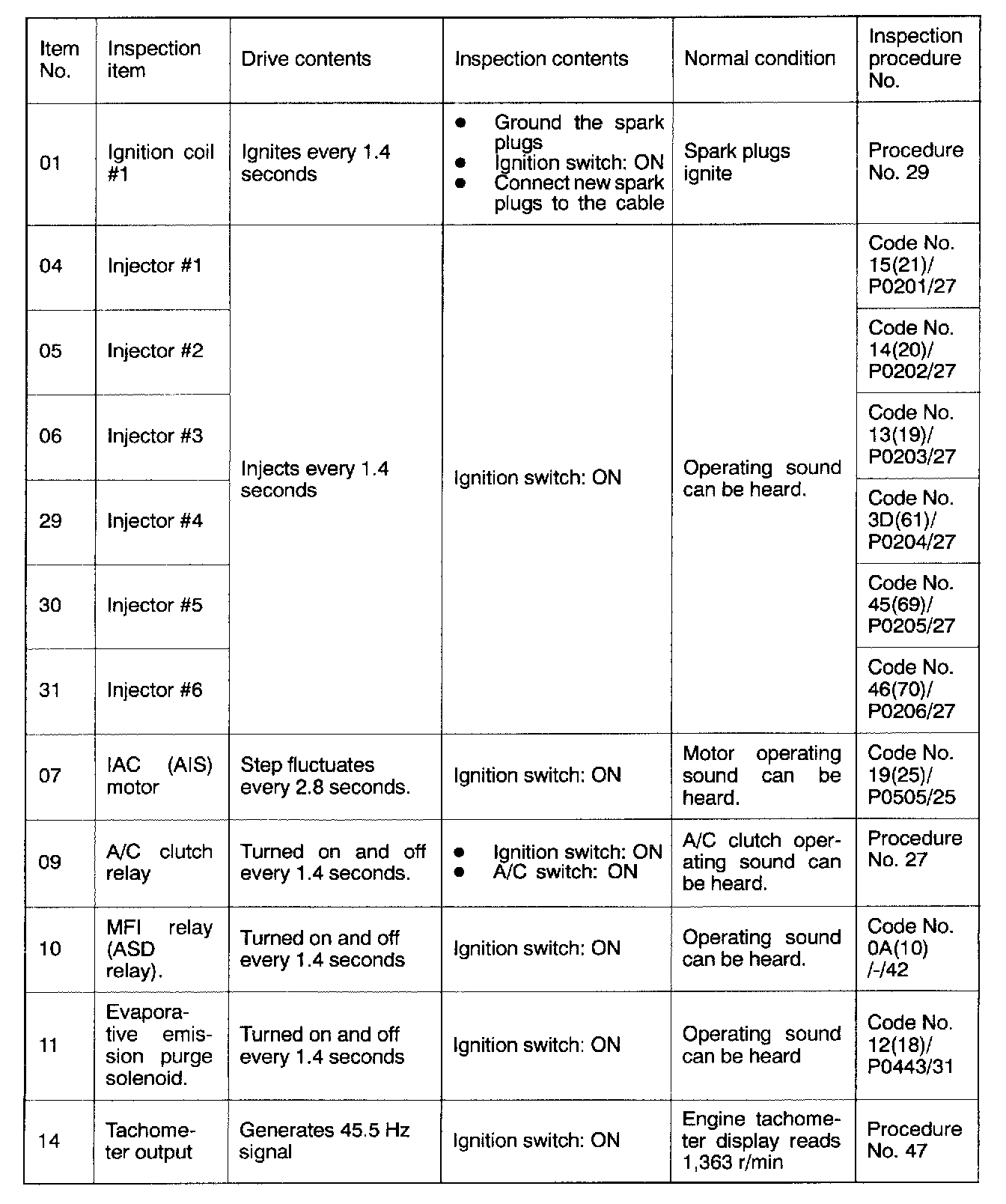

Actuator Test Reference Table Part 1:

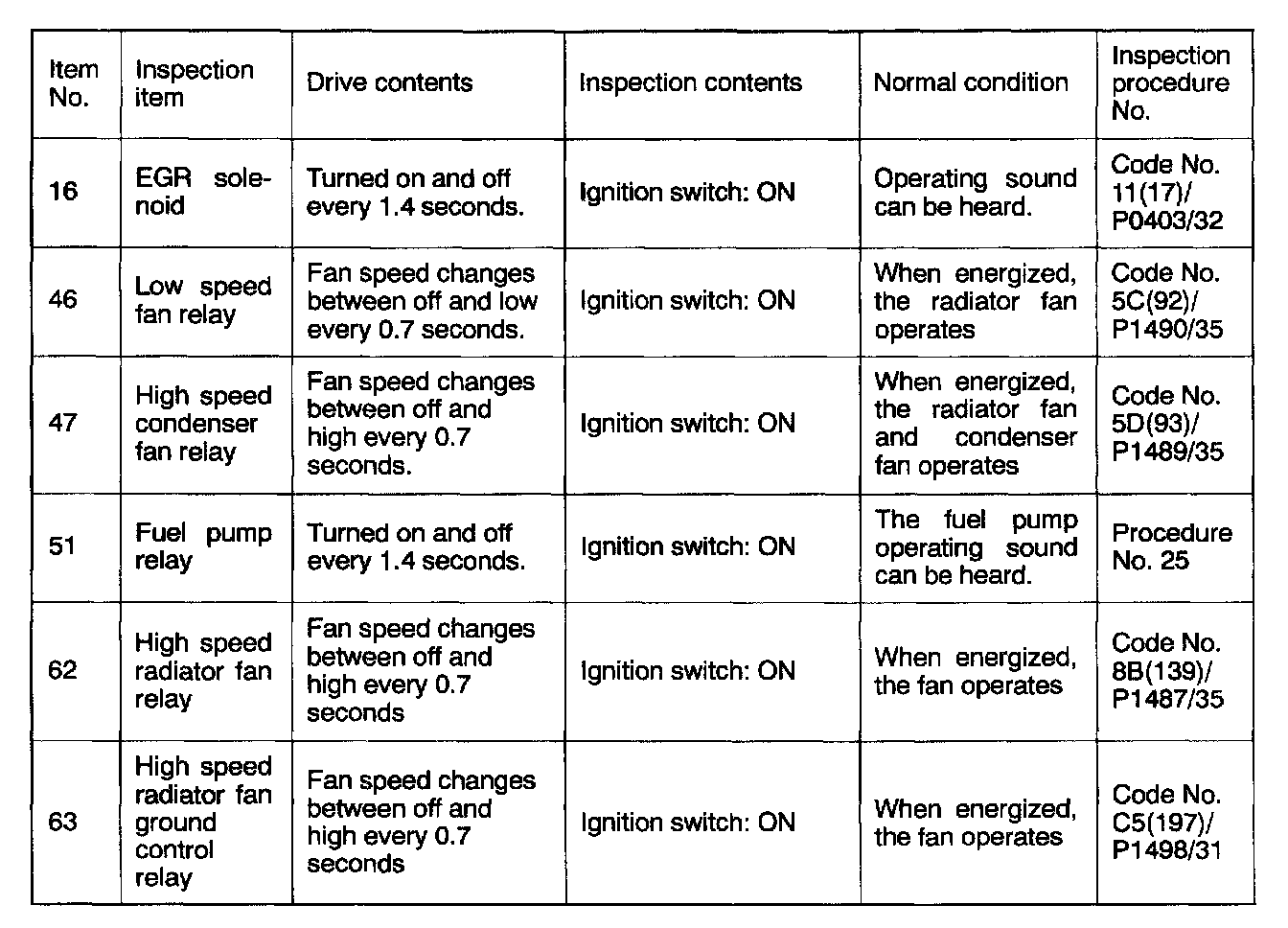

Actuator Test Reference Table Part 2:
NOTE: If an injector operates properly, it releases fuel when activated by the PCM. Prolonged injector actuation, particularly on vehicles equipped with multi-port systems may cause excessive amounts of fuel to be deposited in the intake manifold. Hydrostatic lock may result.
