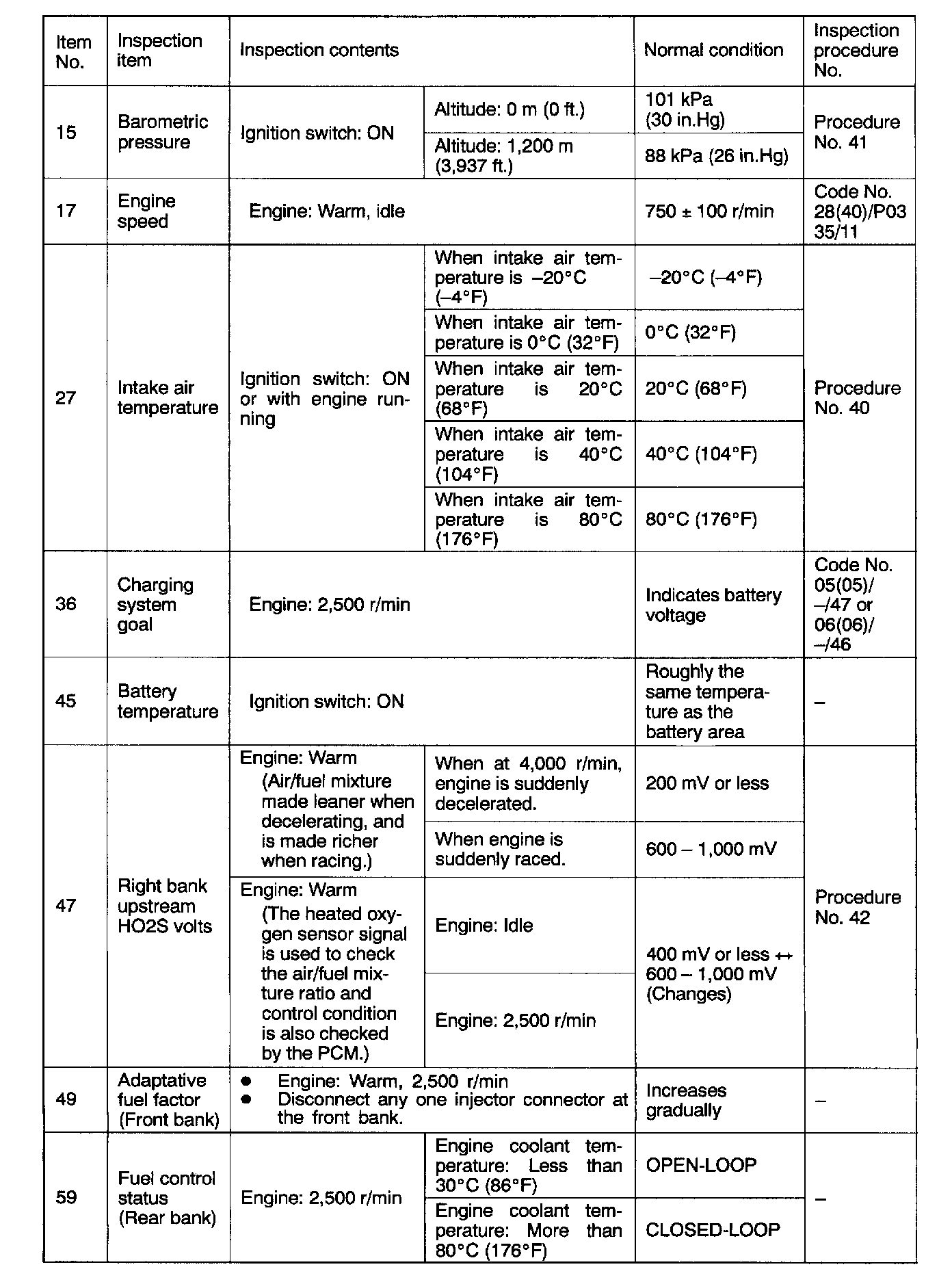

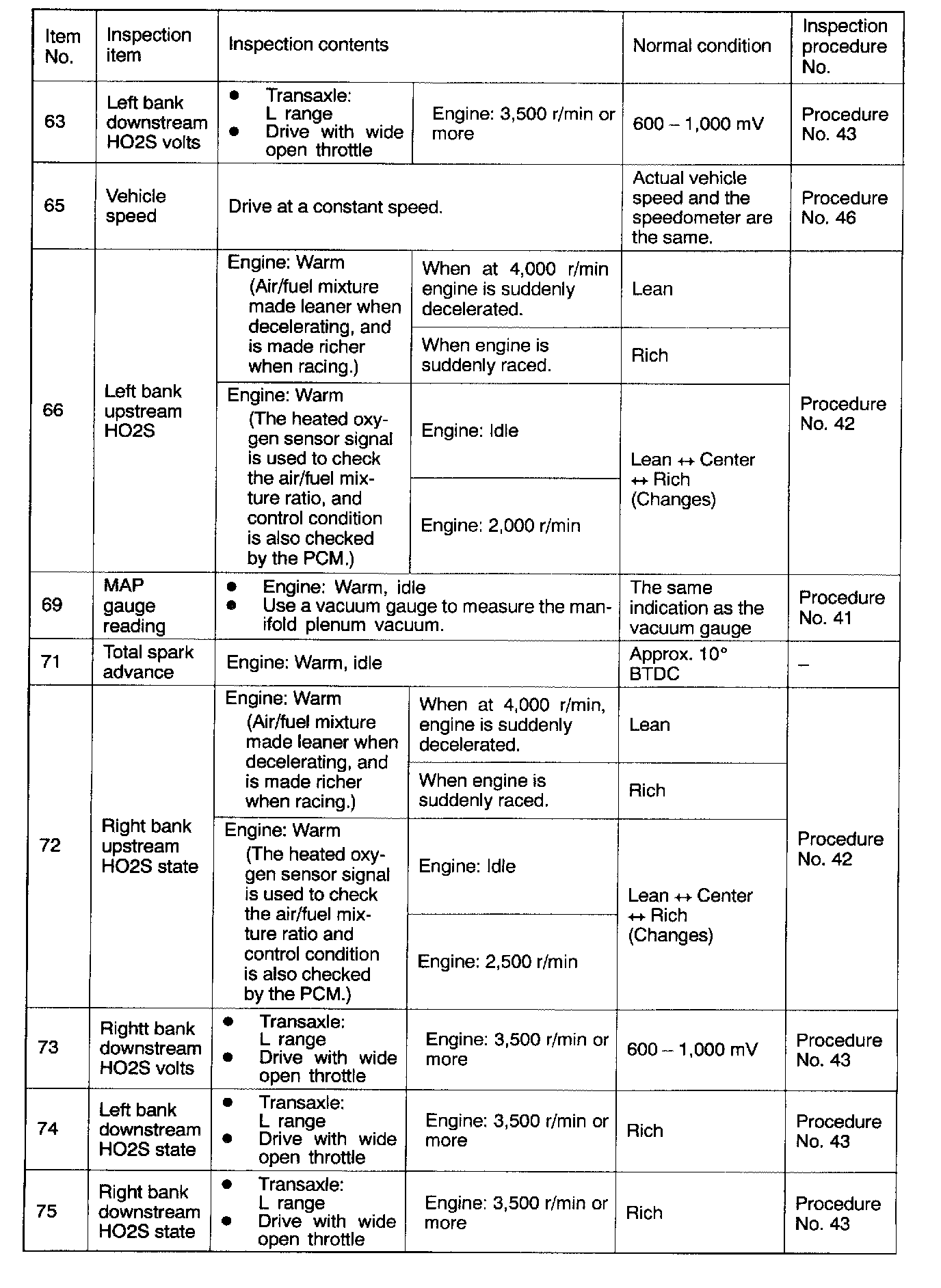

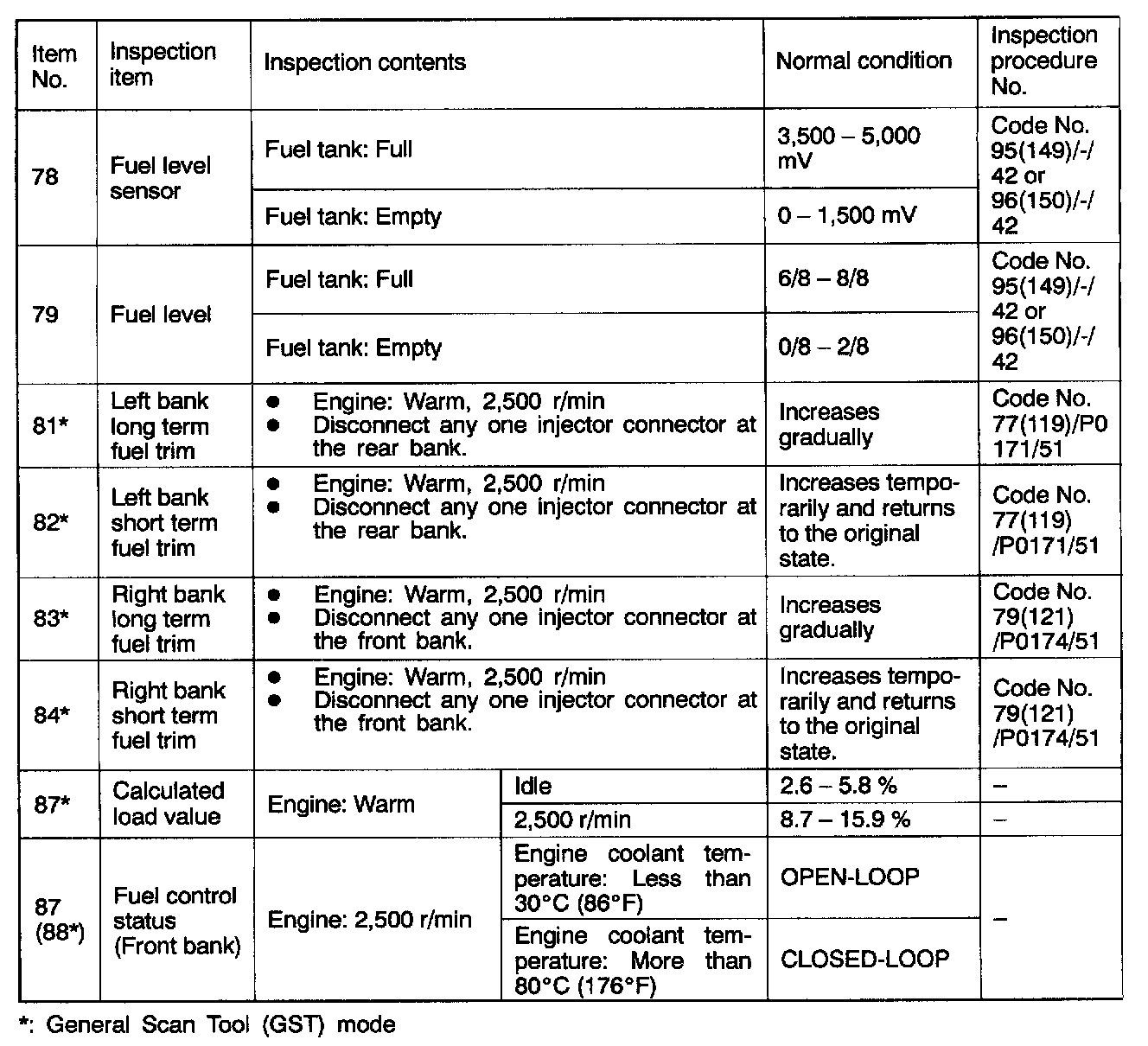

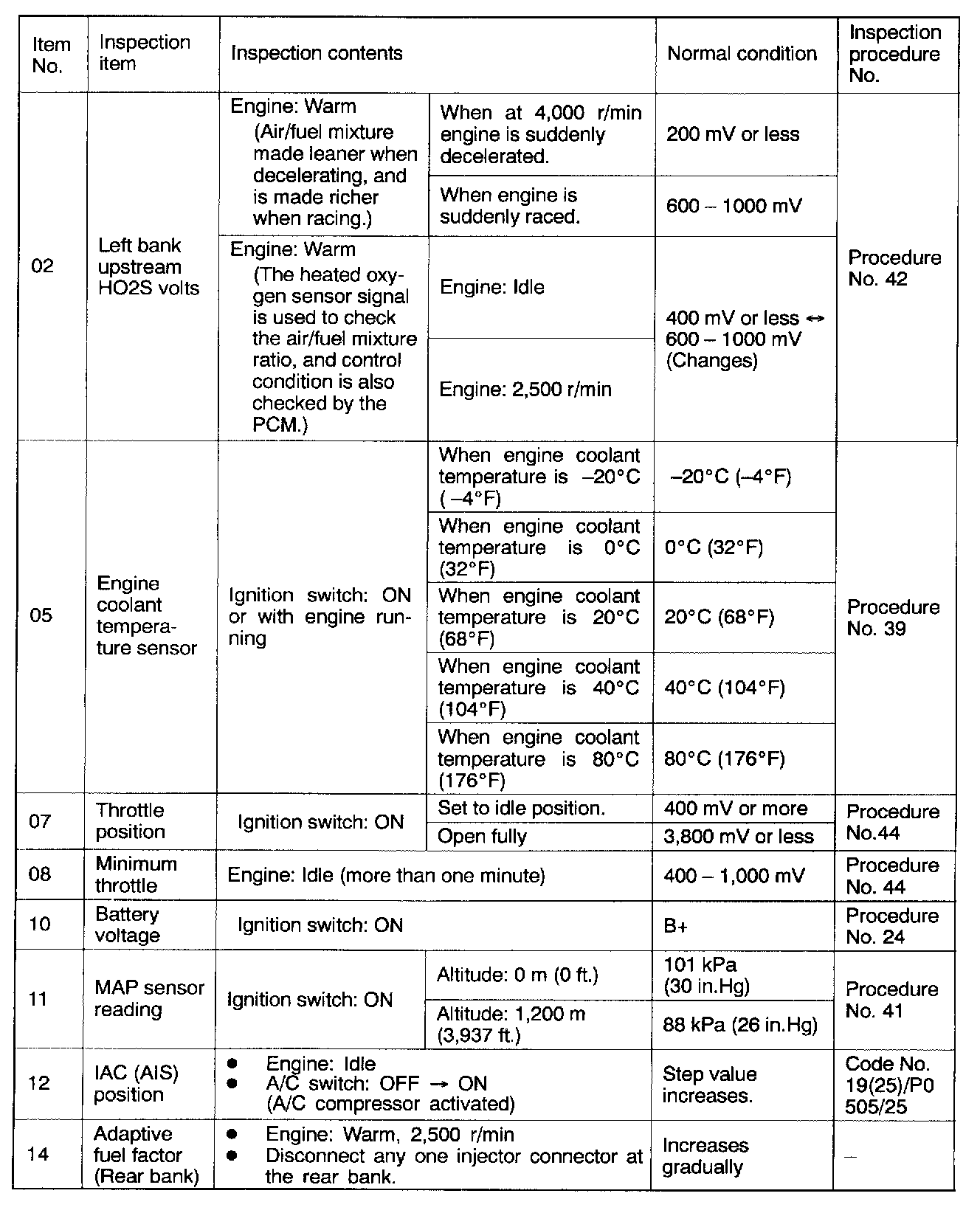

Sensor Read Tests Reference Table

Part 1:




Part 2:




Part 3:




Part 4:




1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
2. When checking while driving the vehicle, always be sure to have two people riding in the vehicle.
