Ignition Coil: Testing and Inspection
1.

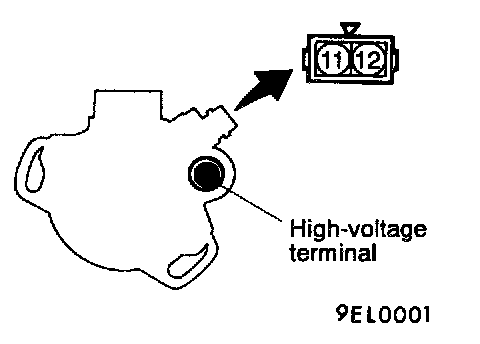

Measurement of the primary coil resistance Measure the resistance between connector terminals 11 and 12 of the
distributor.
Standard value:
0.6 - 0.8 ohms 2.
Measurement of the secondary coil resistance Measure the resistance between the high-voltage terminal and connector terminal 11.
Standard value:
12 - 18 ohms
