Cylinder Head

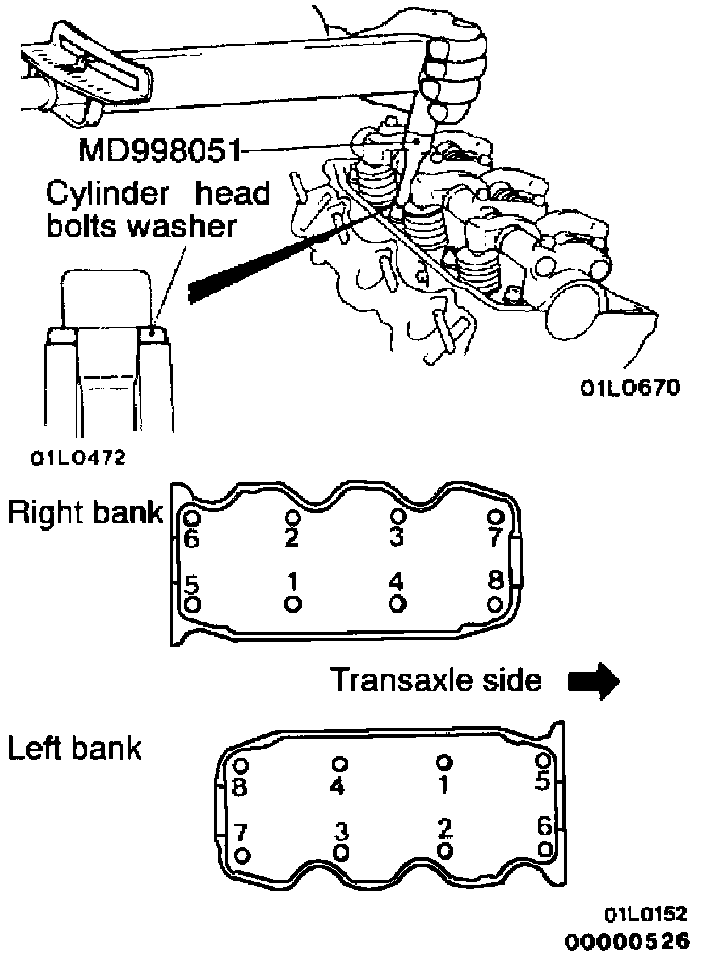

Use the special tool and a torque wrench to tighten the bolts to the specified torque in the order shown in the illustration. (in two or three cycles)

- Tightening torque: 103 - 113 Nm (76 - 83 ft. lbs.)

CAUTION: Install the head bolt washers with chamfer up as shown in the illustration.
