Ignition Switch Lock Cylinder: Service and Repair

CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions, Air Bag Module and Clock Spring.

REMOVAL SERVICE POINT




Steering Lock Cylinder Removal
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

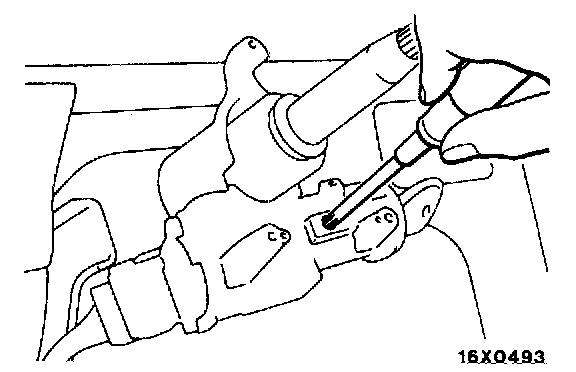

2. Using a cross-tip (+) screwdriver (small) or similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.

INSTALLATION

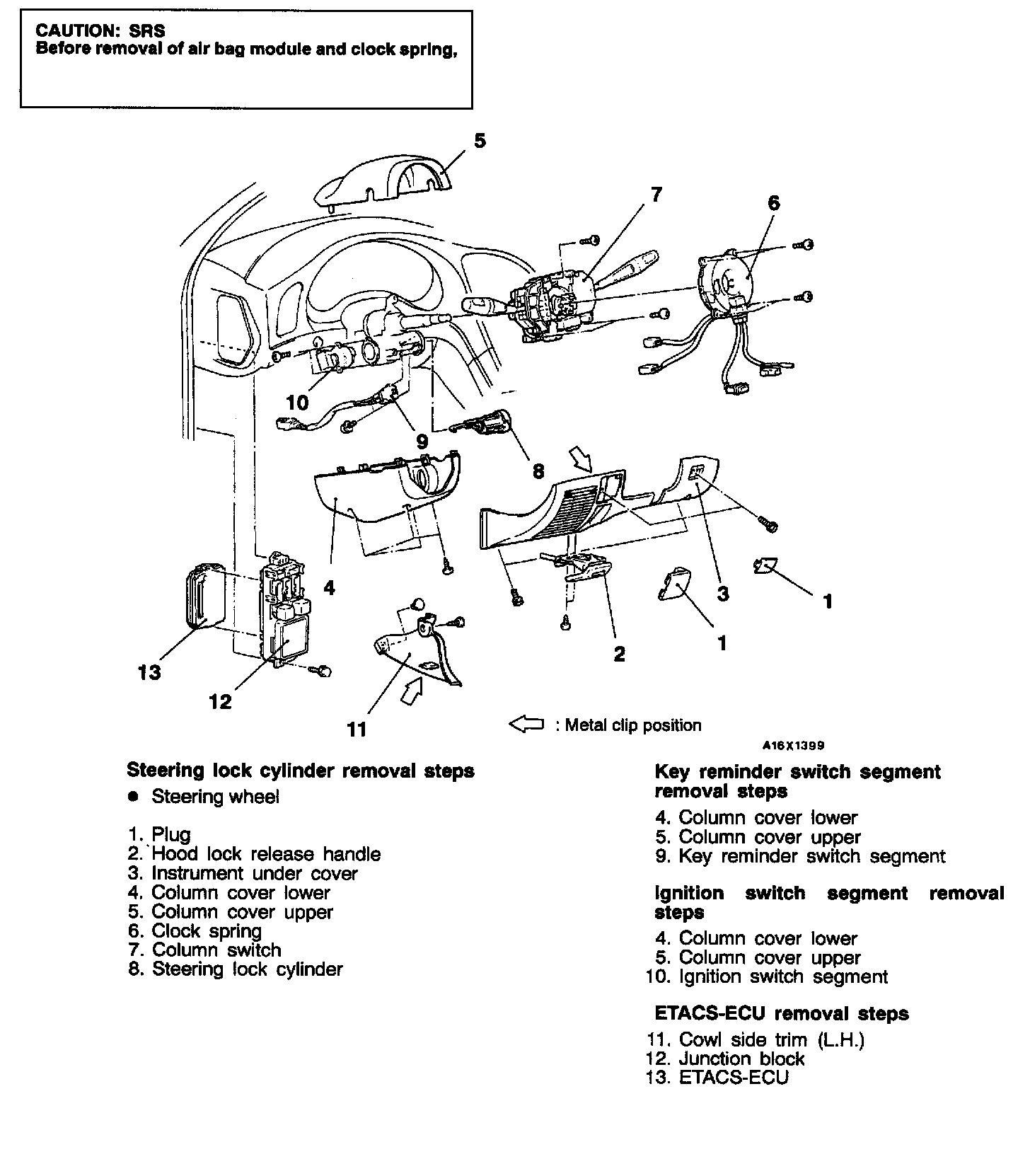

To install reverse the steps listed in the image.
