Transmission Temperature Sensor/Switch: Service and Repair
1.
Disconnect the transaxle range sensor connector.
2.

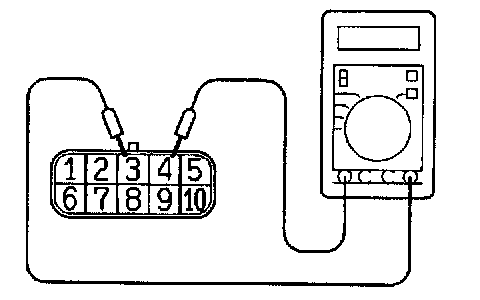

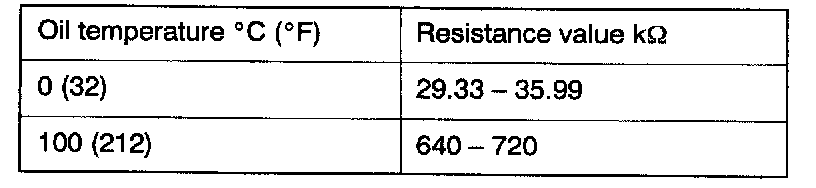

Measure the resistance between terminals 3 - 4 and check that the values are as shown in the table below.
3.
If the values are outside the standard values, replace the transaxle range sensor.
