Heated Glass Element Switch: Service and Repair

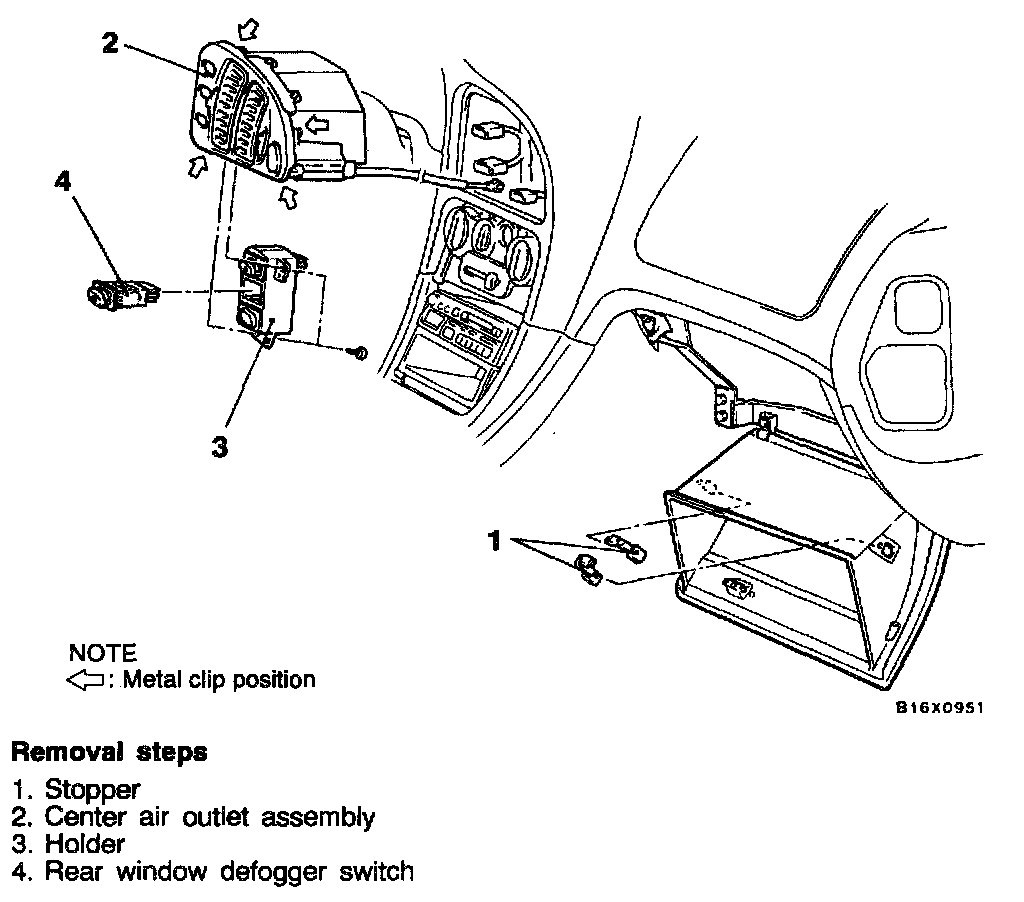

REMOVAL
To remove follow the steps listed in the image.

INSTALLATION SERVICE POINTS

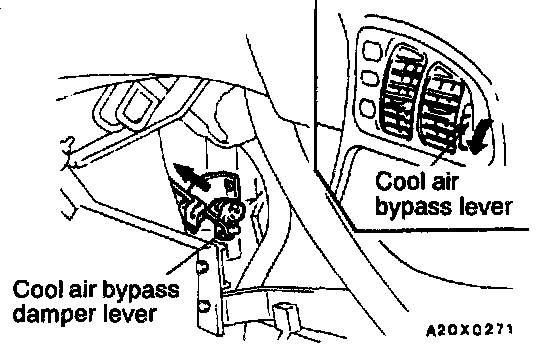

Center Air Outlet Installation
1. Turn the cool air bypass lever of the center air outlet fully downward.
2. Pull the cool air bypass damper lever on the heater unit side fully toward you, and then attach the cable to the pin of the lever.
3. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with the clip.
